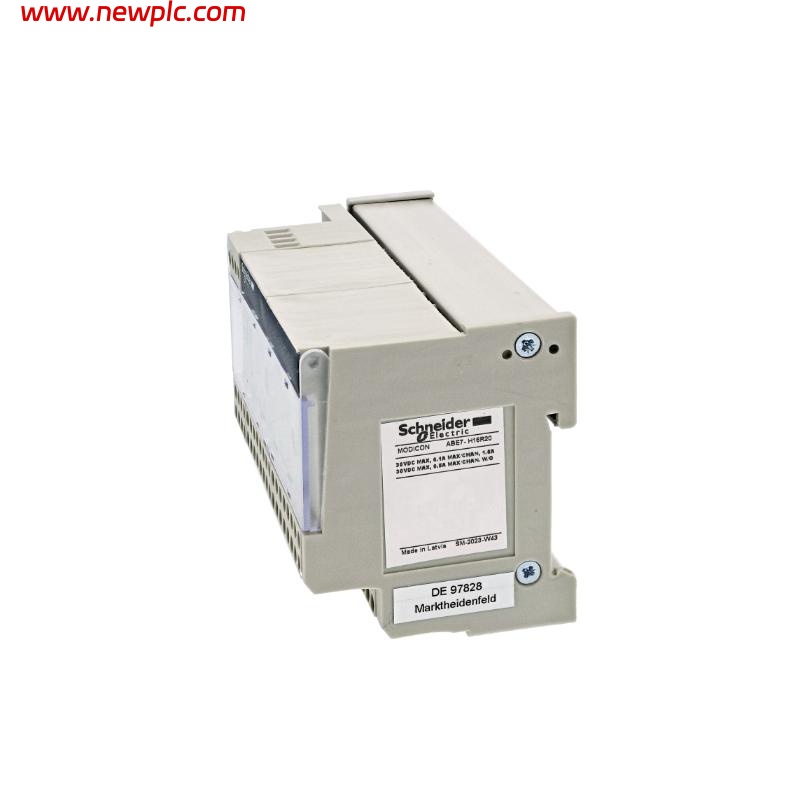

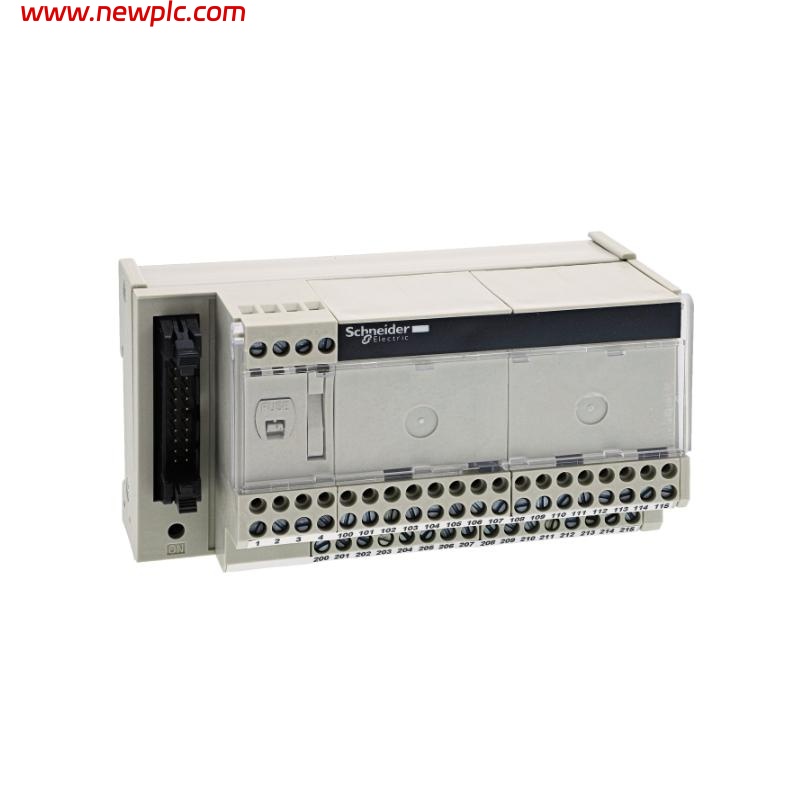

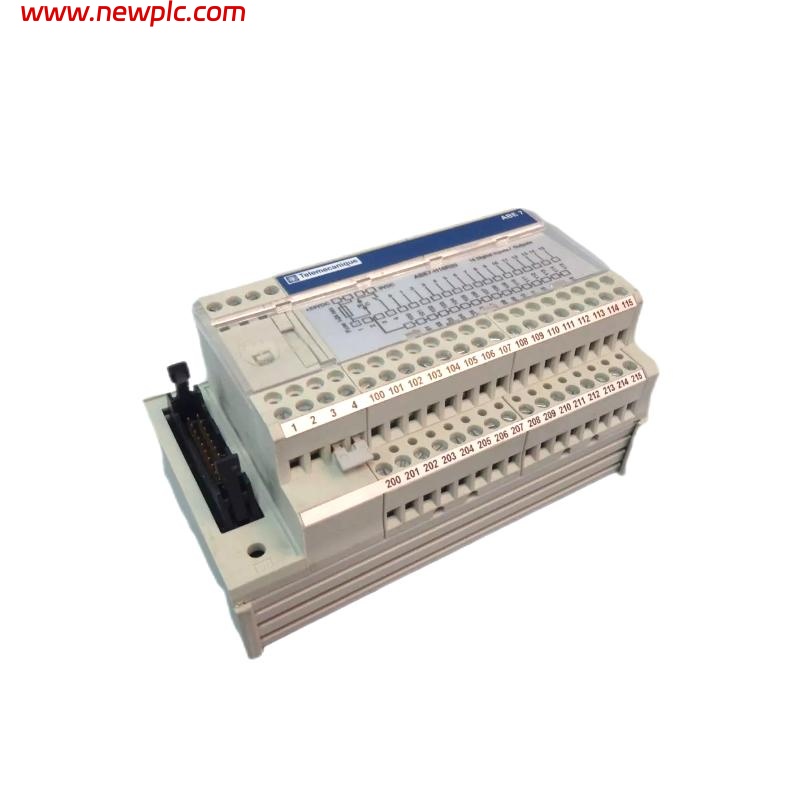

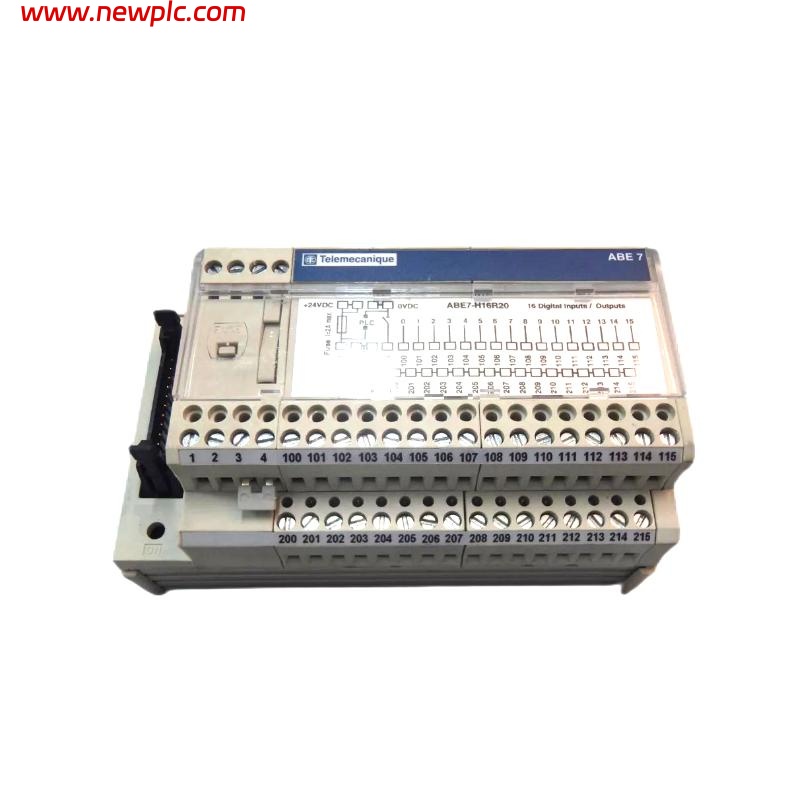

Schneider ABE7H16R20 Passive Connector Subbase

FAQ

Q1: Which modules is the ABE7H16R20 compatible with?
A1: It is mainly used with Modicon TM7 series modules to ensure reliable electrical connection.

Q2: How many terminals does the subbase support?
A2: It supports 16 screw terminal connections.

Q3: What are the rated current and voltage?
A3: Rated current is 10 A, and rated voltage is 250 V AC/DC.

Q4: What is the mounting method?
A4: Standard DIN rail mounting for easy module assembly.

Q5: Can it operate in high-temperature environments?
A5: Operating temperature ranges from –25°C to +70°C, suitable for most industrial environments.

Q6: What are the contact and insulation resistances?
A6: Contact resistance ≤ 5 mΩ, insulation resistance ≥ 100 MΩ, ensuring good electrical performance.

Q7: Is it suitable for outdoor use?
A7: It is designed primarily for indoor industrial environments; outdoor use requires protection.

Q8: What precautions are needed for transport and storage?
A8: Avoid moisture, high temperature, and mechanical impact; store in a dry environment.
