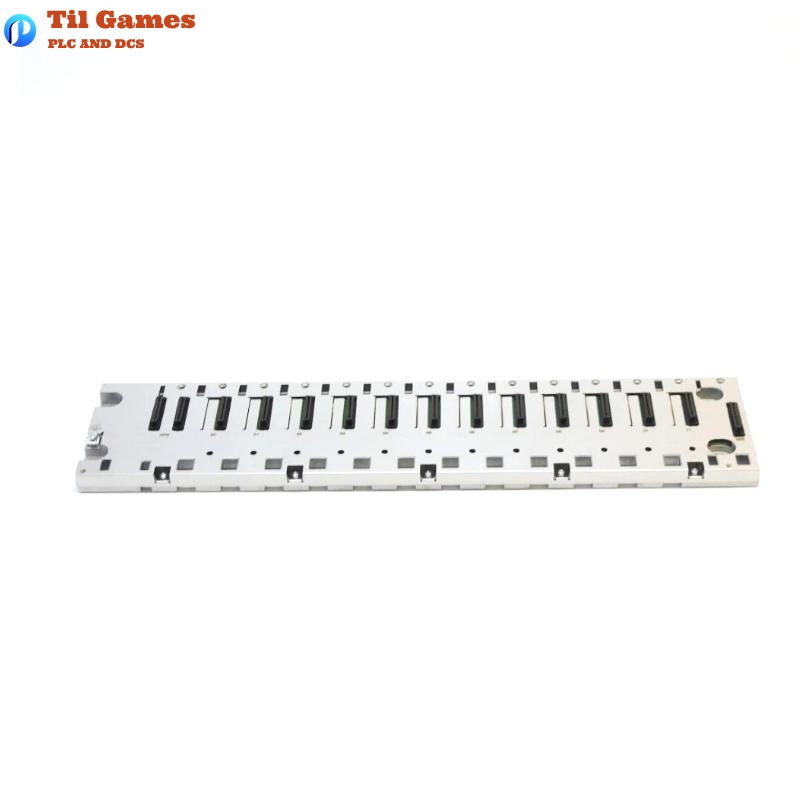

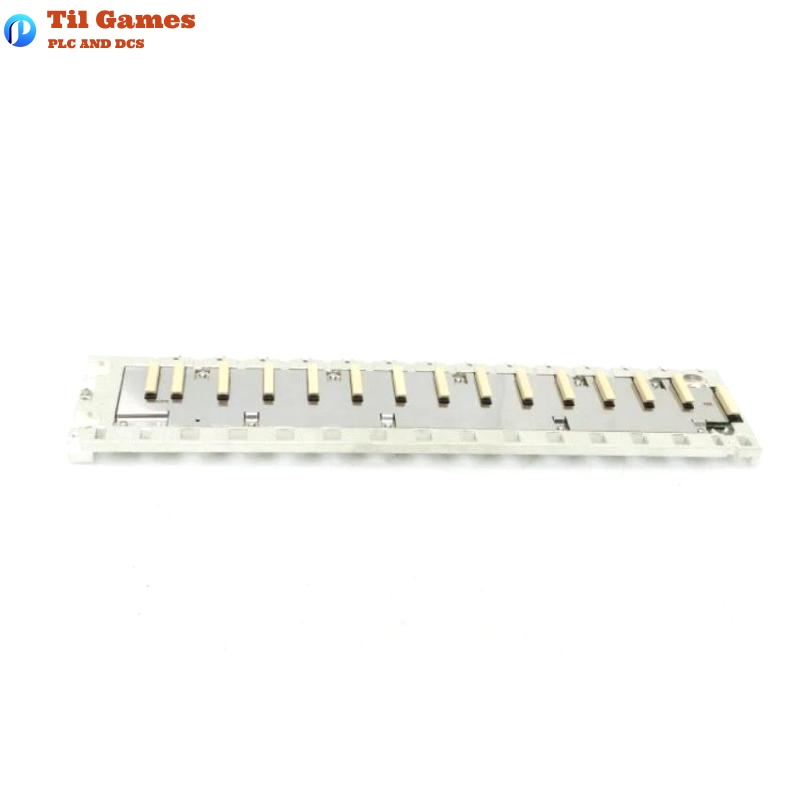

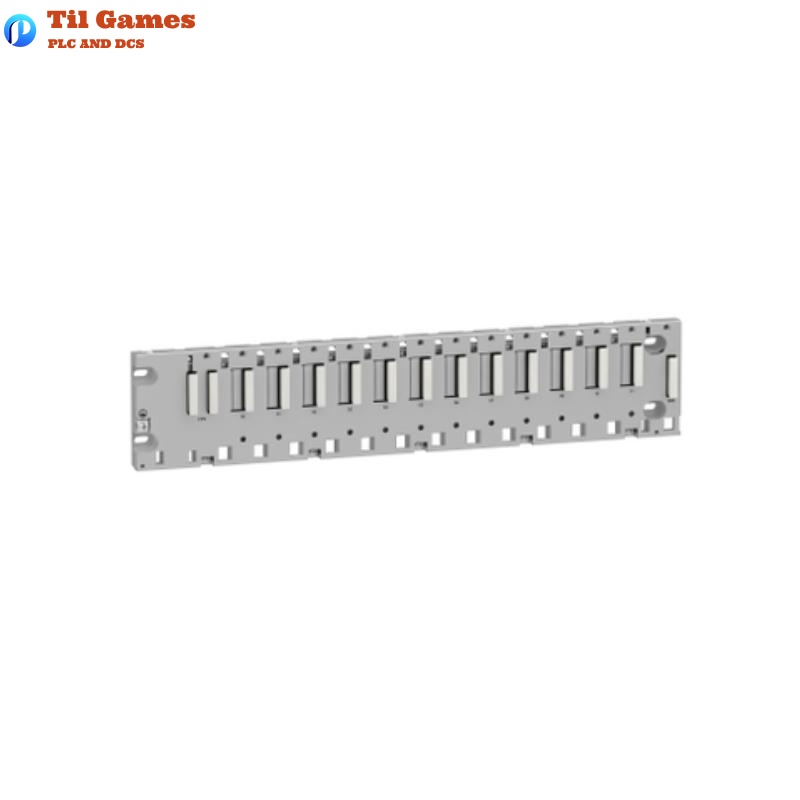

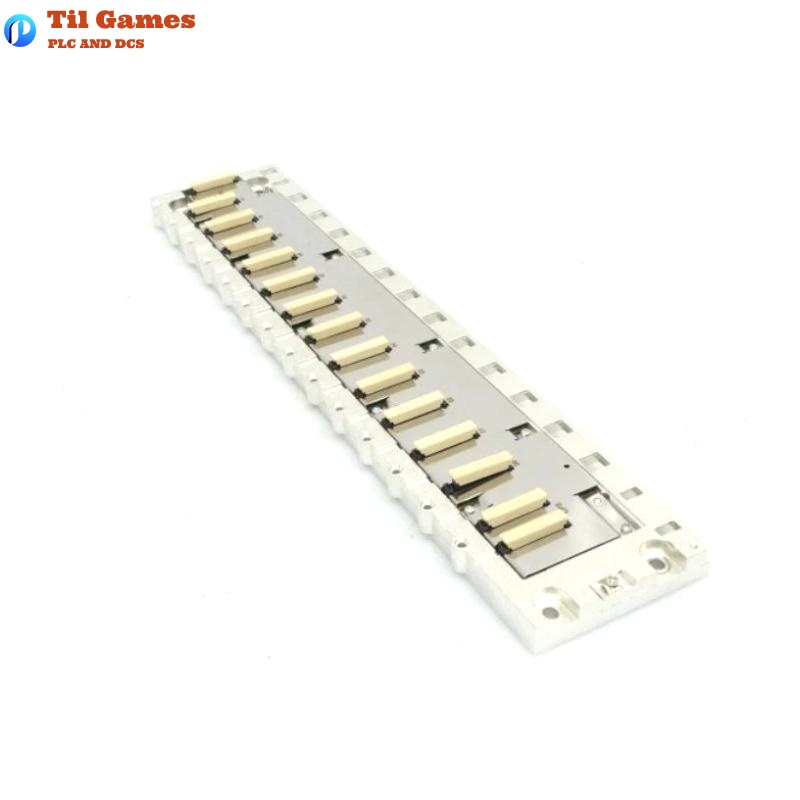

Schneider BMXXBP1200 Modicon X80 Backplane

Frequently Asked Questions (FAQ)

Q1: What processors are supported by the BMXXBP1200 backplane?
A1: It supports Schneider BMXP34 processors.

Q2: How many modules can be installed on this backplane?
A2: It supports up to 12 modules including I/O and specific application modules.

Q3: What are the mounting options for BMXXBP1200?
A3: It can be mounted using four M4, M5, or M6 screws on a panel or mounting plate.

Q4: What is the operating temperature range?
A4: The module operates in a temperature range of 0 to 60 °C (32 to 140 °F).

Q5: Does BMXXBP1200 support expansion?
A5: Yes, it has one XBE expansion connector for module extension.

Q6: What is the IP protection rating of this backplane?
A6: It is rated IP20, suitable for enclosed cabinet installations.

Q7: Is this product internationally certified?
A7: Yes, it carries CE, UL, CSA, RCM, EAC, UKCA, and Merchant Navy certifications.

Q8: Is BMXXBP1200 suitable for marine or railway applications?
A8: Yes, it complies with Merchant Navy and IACS E10 standards, supporting such environments.
