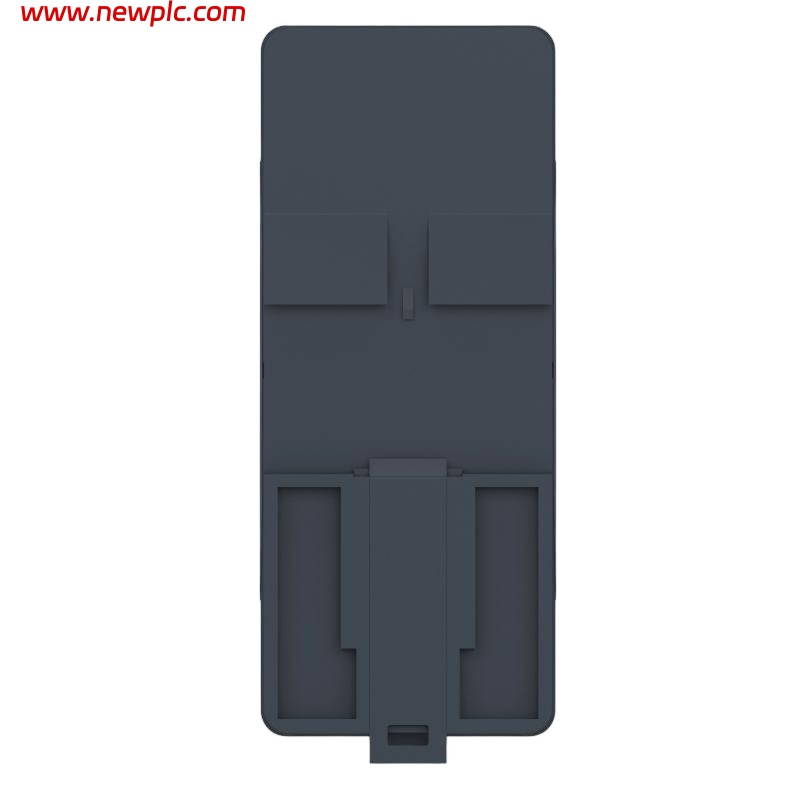

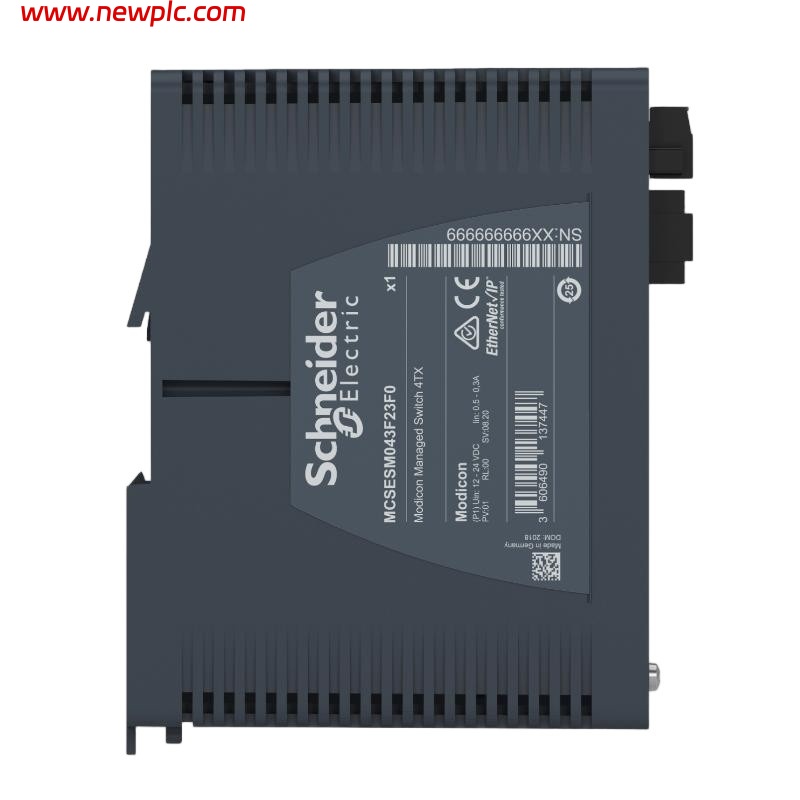

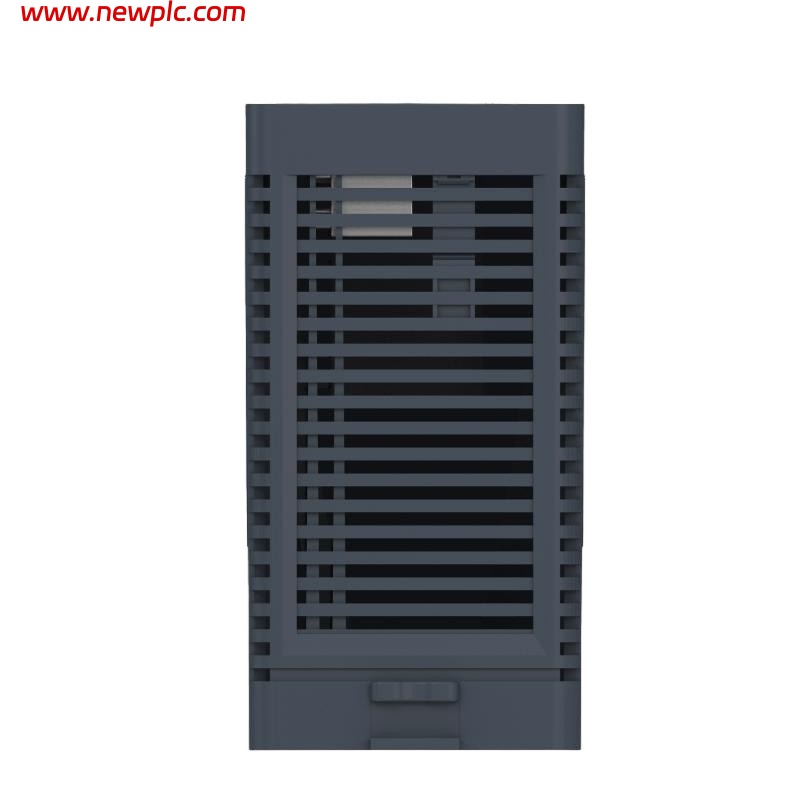

Schneider MCSESM043F23F0 Managed Industrial Ethernet Switch

FAQ

Q1. What is the MCSESM043F23F0 used for?
It is a managed industrial Ethernet switch designed to connect PLCs, controllers, and industrial devices in automation networks.

Q2. How many Ethernet ports does this switch provide?
The switch includes four 10/100BASE-TX copper Ethernet ports with RJ45 connectors.

Q3. What mounting method does this device use?
The device is designed for installation on a standard 35 mm DIN rail commonly used in industrial control panels.

Q4. What voltage does the switch require for operation?
It operates with a 12–24 V DC power supply and supports input ranges from 9.6 V to 32 V DC.

Q5. What are the physical size and weight of the switch?
The switch measures approximately 57 mm × 138 mm × 104 mm and weighs about 0.38 kg.

Q6. What industrial protocols and management features are supported?
It supports Ethernet TCP/IP along with management protocols such as SNMP, SSH, HTTP, HTTPS, LLDP, and Telnet.

Q7. What cybersecurity features are included?
The switch provides security functions including MAC-based port security, role-based access control, RADIUS authentication, and protection against denial-of-service attacks.

Q8. What environmental conditions can the device operate in?
It is designed for industrial environments with operating temperatures from 0 °C to 60 °C and humidity up to 95 % non-condensing.
