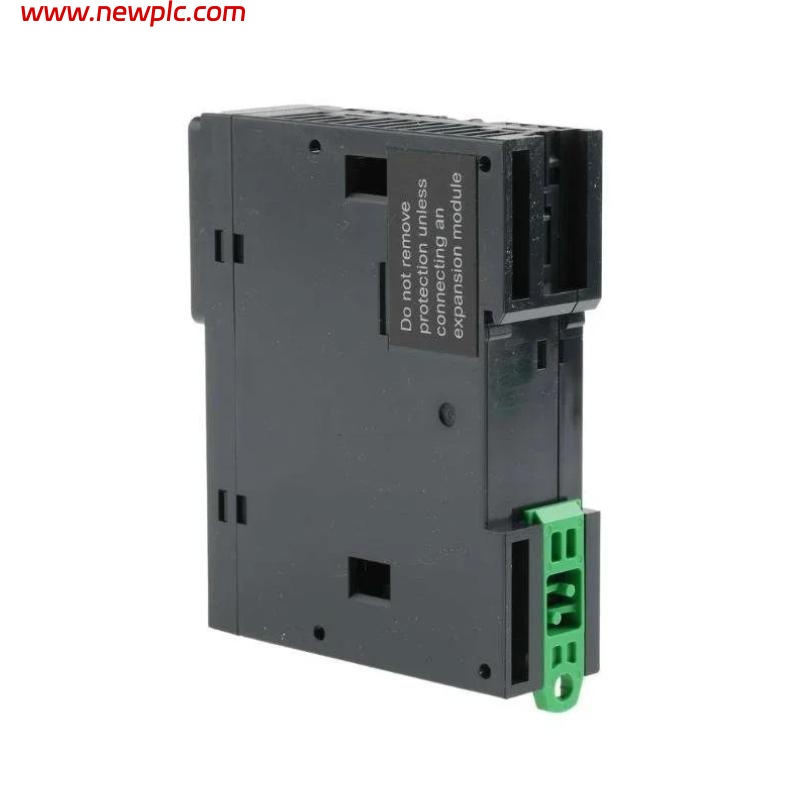

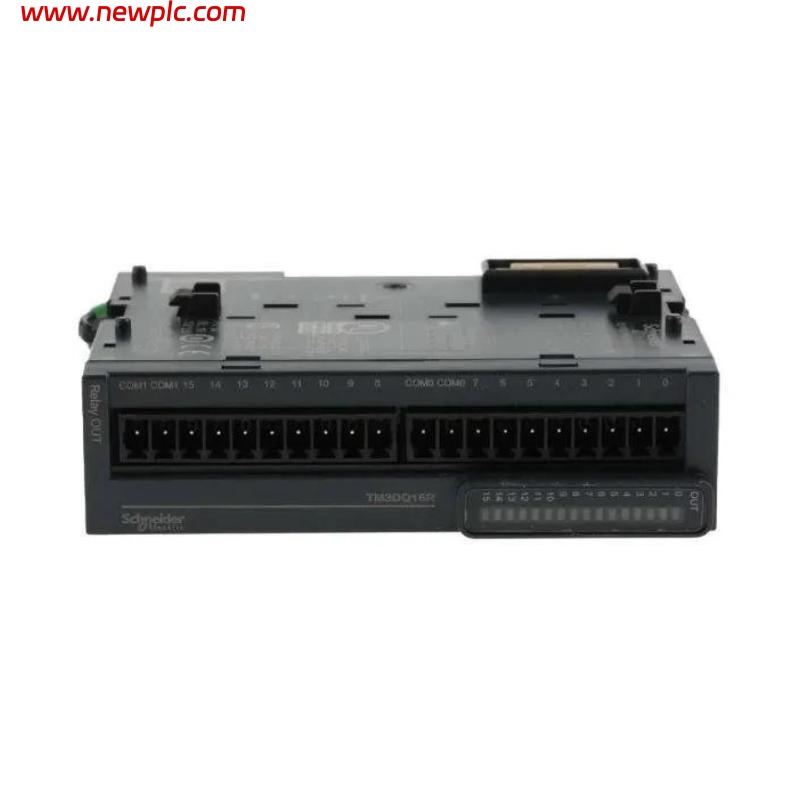

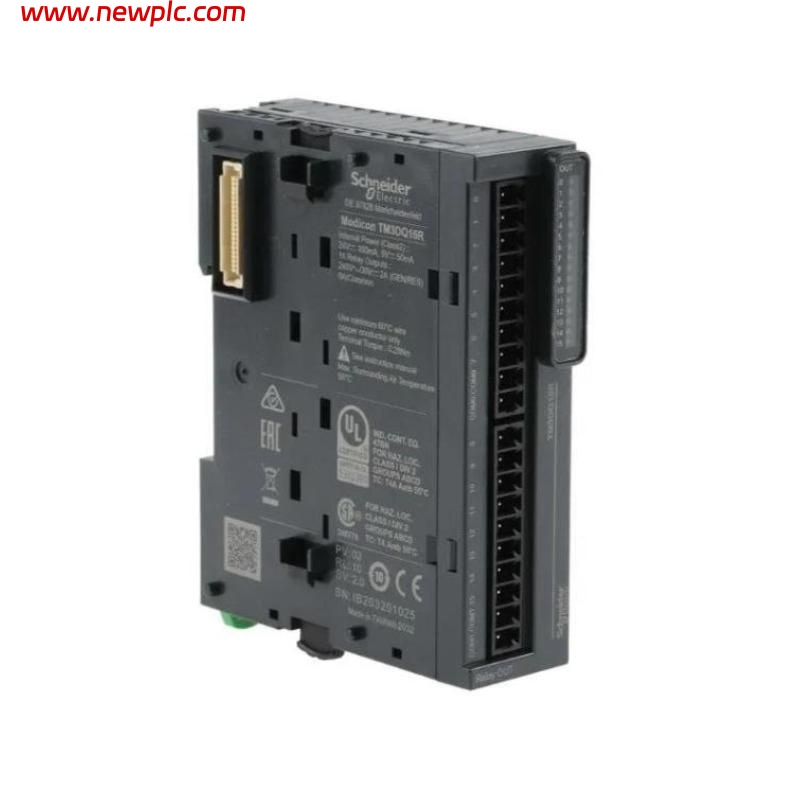

Schneider TM3DQ16R Discrete Output Modules

FAQ

Q1: What is the primary function of the TM3DQ16R module?
It provides 16 discrete relay outputs for switching AC or DC loads in automation systems.

Q2: What types of signals can the relay outputs handle?
Each output can switch both AC voltages up to 250 V and DC voltages up to 30 V.

Q3: Is the TM3DQ16R compatible with Modicon M221, M241, and M251 PLCs?
Yes, it is part of the TM3 expansion system and works with compatible Modicon PLCs.

Q4: How much current can each output channel handle?
Each channel supports up to 2 A, with a total of 8 A per common group.

Q5: What is the switching frequency of the relays?
1 Hz under full load and up to 10 Hz when no load is applied.

Q6: Is the module hot-swappable during operation?
No, relay modules are not hot-swappable. Power must be turned off before removal or installation.

Q7: Are the relay contacts isolated from the logic circuit?
Yes, the module provides isolation between the control logic and output contacts.

Q8: Can the module be mounted on a DIN rail?
Yes, it is designed for standard DIN rail mounting in control cabinets.

Discrete Output Modules Schneider TM3DQ16R
