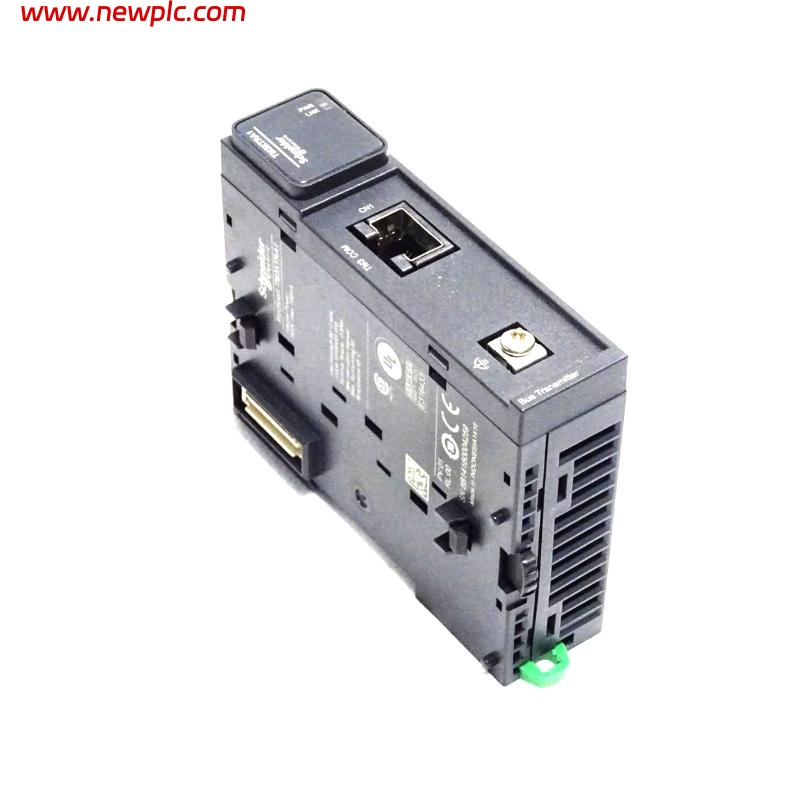

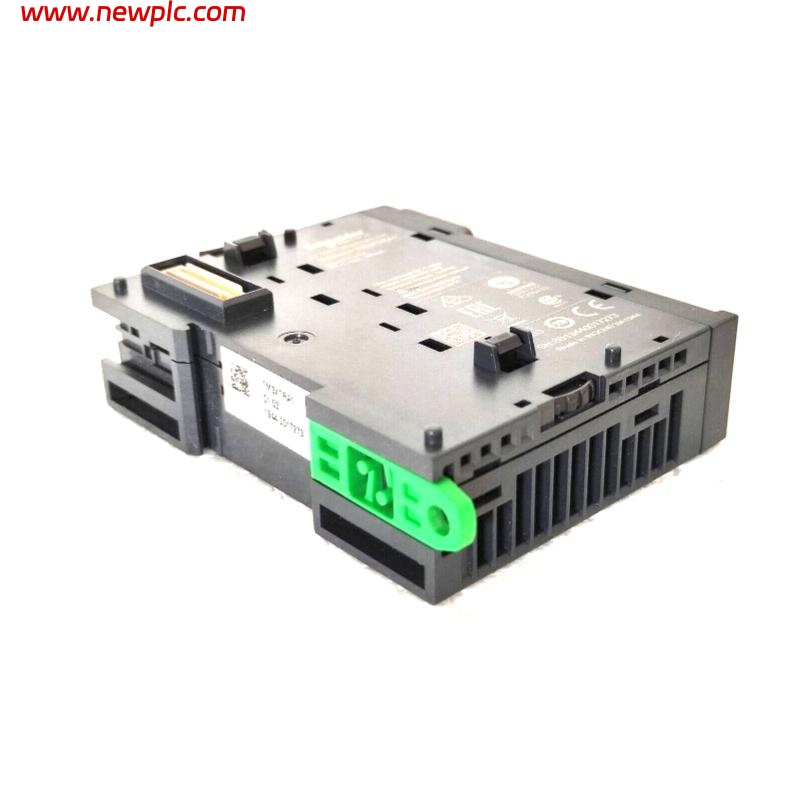

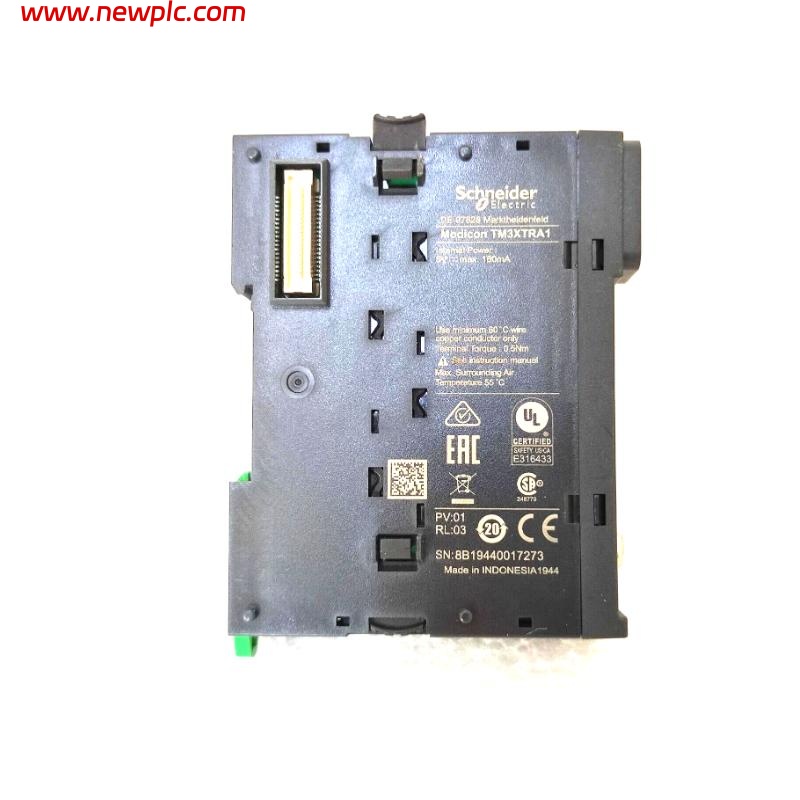

Schneider TM3XTRA1 Modicon TM3 Remote Transmitter Module

FAQ

Q1: Is this module compatible with the Modicon M221 controller?
A1: Yes, the TM3XTRA1 is fully compatible with the Modicon M221 logic controller.

Q2: How does this module connect with other I/O modules?
A2: It connects via a bus expansion connector and uses an RJ45 interface for linking with the bus receiver.

Q3: Is the power supplied externally or through the main module?
A3: Power is supplied via the main controller through the bus connector at 5V DC 30mA.

Q4: What types of rail mounting are supported?
A4: It supports DIN rail mounting TH35-7.5, TH35-15 (per IEC 60715) and panel mounting with a fixing kit.

Q5: What are the dimensions and weight of the module?
A5: The module measures 90 x 73.3 x 23.65 mm and weighs 0.065 kg.

Q6: What is the protection rating of this module?
A6: It has an IP20 protection rating, suitable for use within control cabinets.

Q7: Does this module support hazardous area certification?
A7: Yes, it complies with Class I Division 2 Groups A/B/C/D hazardous location standards.

Q8: Which Modicon controllers are supported by this module?
A8: It supports Modicon M221, M241, M251, and M262 logic controllers.
