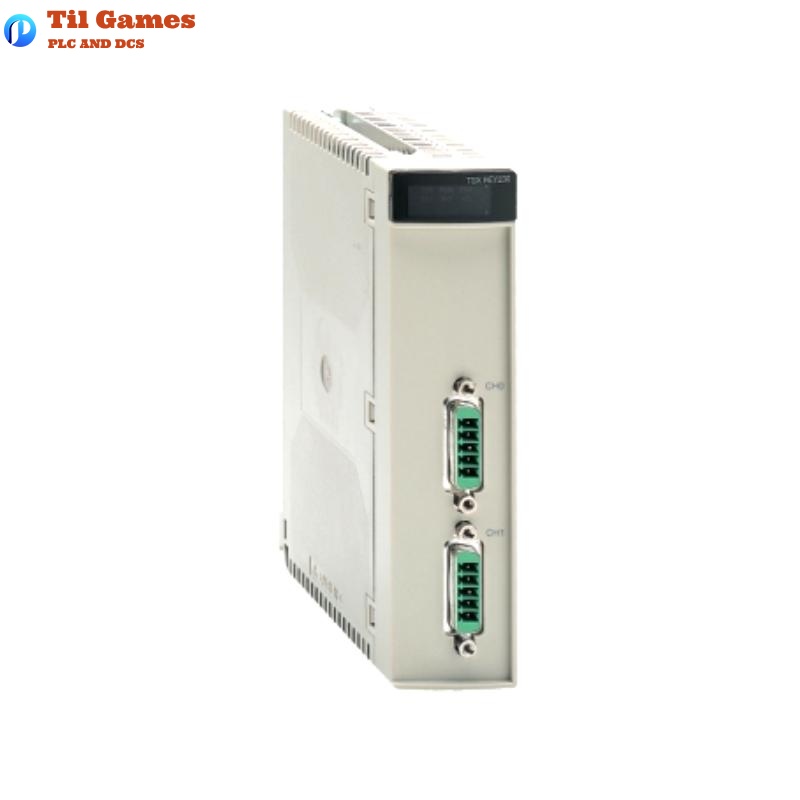

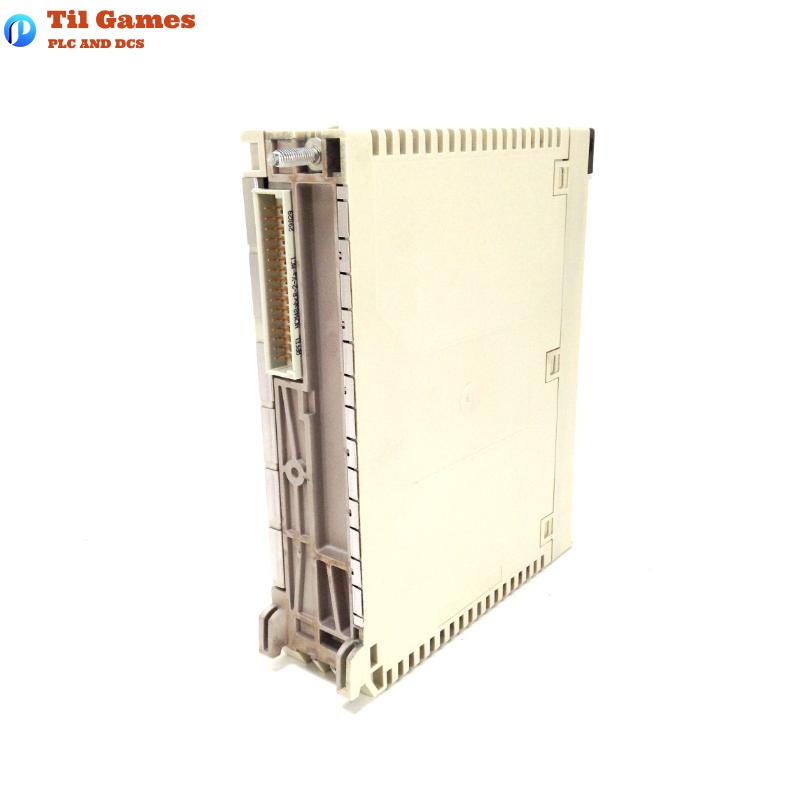

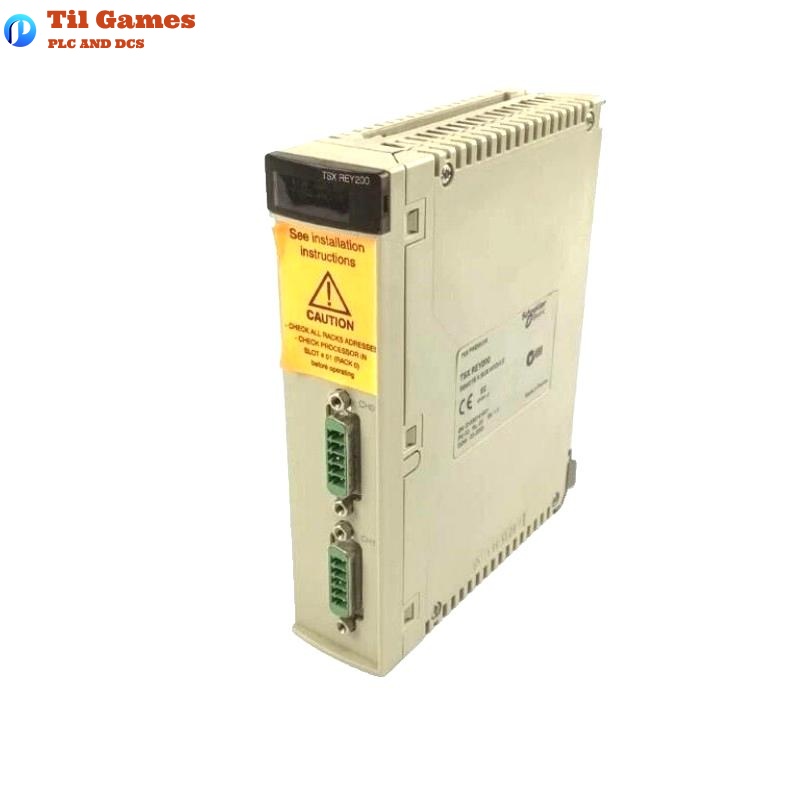

Schneider TSXREY200 Bus X Remote Rackmaster Module

Frequently Asked Questions (FAQ)

Q1: What is the function of the TSXREY200 module?
A1: It serves as a remote rackmaster in a Bus X topology, managing communication between a local rack and remote I/O modules.

Q2: How many communication channels does the TSXREY200 support?
A2: The module supports 2 communication channels.

Q3: What type of connection interfaces does the TSXREY200 have?

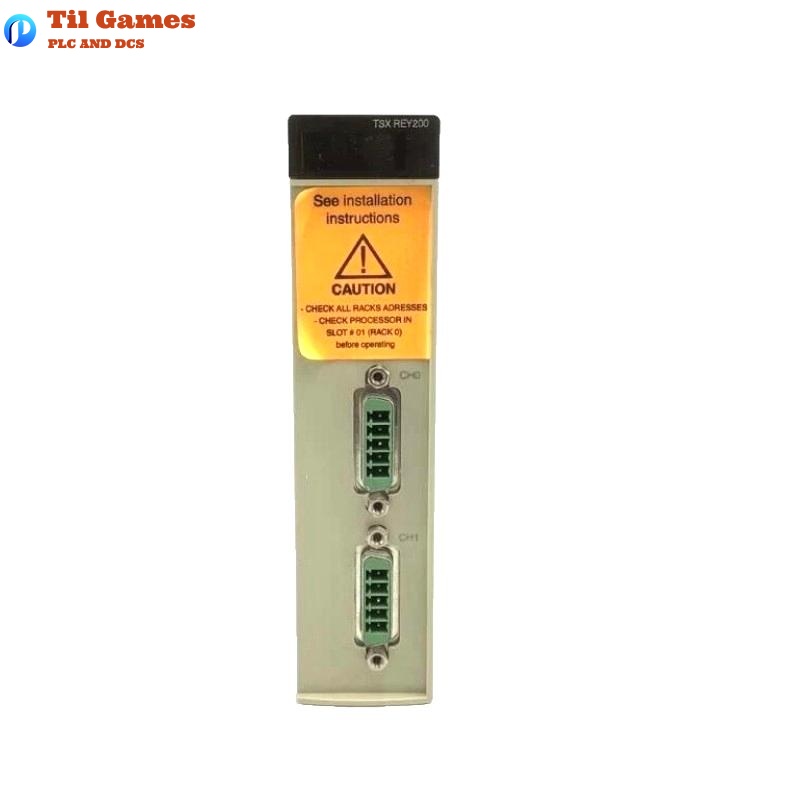

A3: It is equipped with two SUB-D 9 connectors, one of which is dedicated to channel 1.

Q4: How is status information provided on the module?
A4: Status is indicated using six LEDs for channel operation, faults, mode, and running status.

Q5: What is the operating voltage and current requirement?
A5: It operates at 5 V DC with a current consumption of 500 mA.

Q6: What does the ERR LED indicate?
A6: The ERR LED indicates an internal fault or a failure within the module.

Q7: Can the TSXREY200 operate as both a master and a slave?
A7: Yes, it supports both master and slave roles depending on configuration.

Q8: What are the module’s dimensions and weight?
A8: The dimensions are 55 × 180 × 260 mm, and it weighs 0.425 kg.

Bus X Remote Rackmaster Module Schneider TSXREY200
