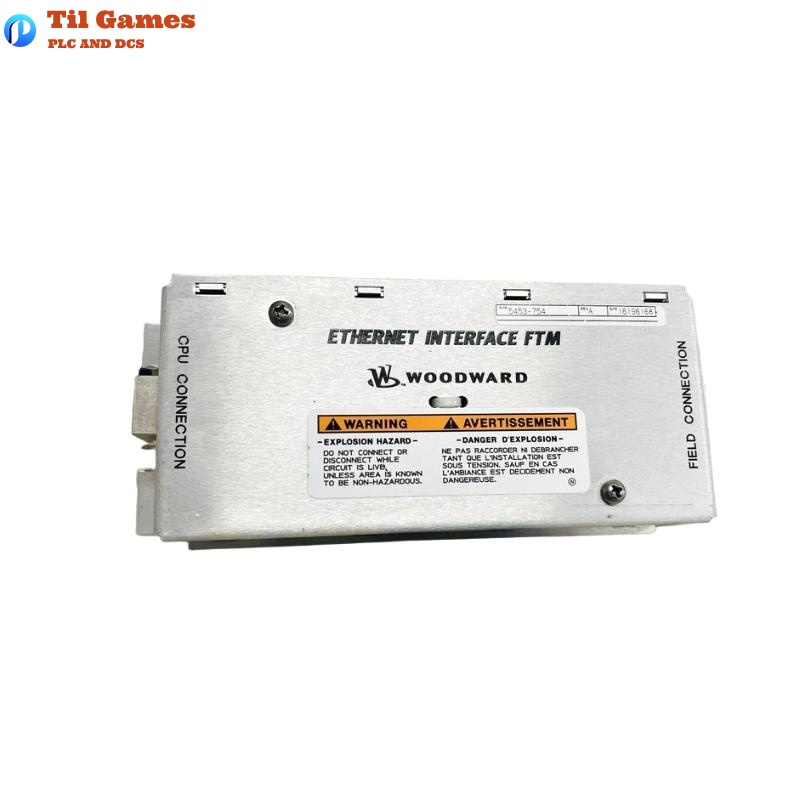

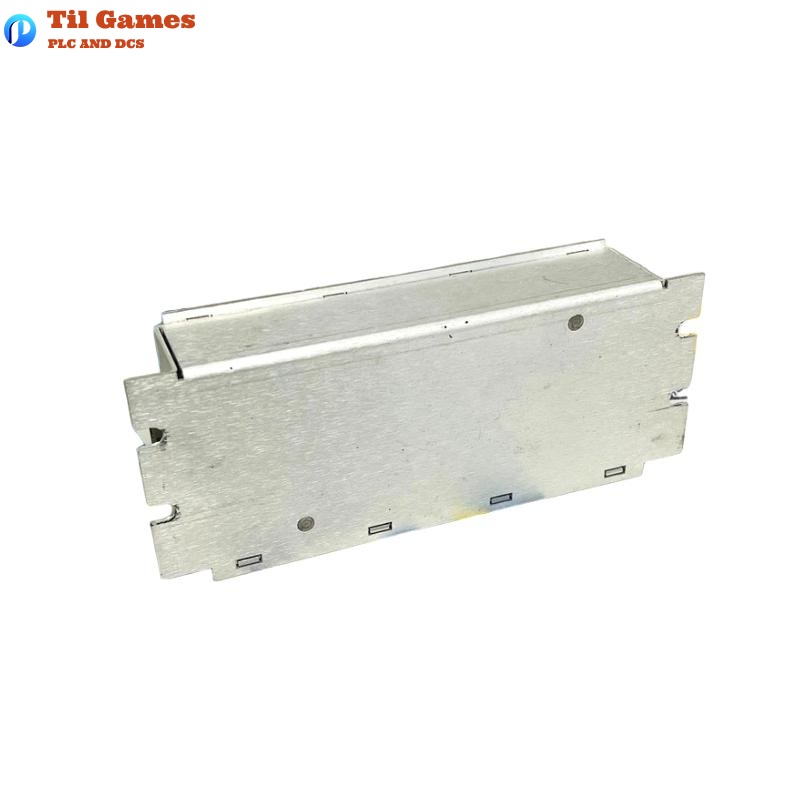

Woodward 5453-754 Ethernet Interface FTM

FAQ

Q1: What systems is the 5453-754 module compatible with?
A1: The module follows the 6U VME-32 industry standard, making it compatible with any VME-based system, especially Woodward platforms.

Q2: What communication protocols are supported by the module?
A2: It supports Modbus, GAP Download, Woodward-specific protocols, and Tunable Capture/Download features.

Q3: What is the data transmission speed of the module?
A3: The module supports 10BaseT communication with a maximum speed of 10 Mbps.

Q4: Is a specific type of Ethernet cable required?
A4: Yes, it is recommended to use double-shielded SSTP Ethernet cables for optimal EMI protection.

Q5: Does the module include status LED indicators?
A5: Yes, it includes LEDs for failure/reset, link, transmit, receive, collision, and 10/100 Mbps operation.

Q6: How is signal integrity maintained?
A6: The module includes EMI shielding and properly terminates the Ethernet cable shield to reduce interference and signal distortion.

Q7: What are the physical dimensions and weight of the module?
A7: It measures 160 x 120 x 40 mm and weighs 0.5 kg, making it suitable for standard cabinet installation.

Q8: Does the module support Woodward tuning and parameter download tools?
A8: Yes, it supports GAP Download and Tunable Capture, enabling parameter optimization and system tuning.
