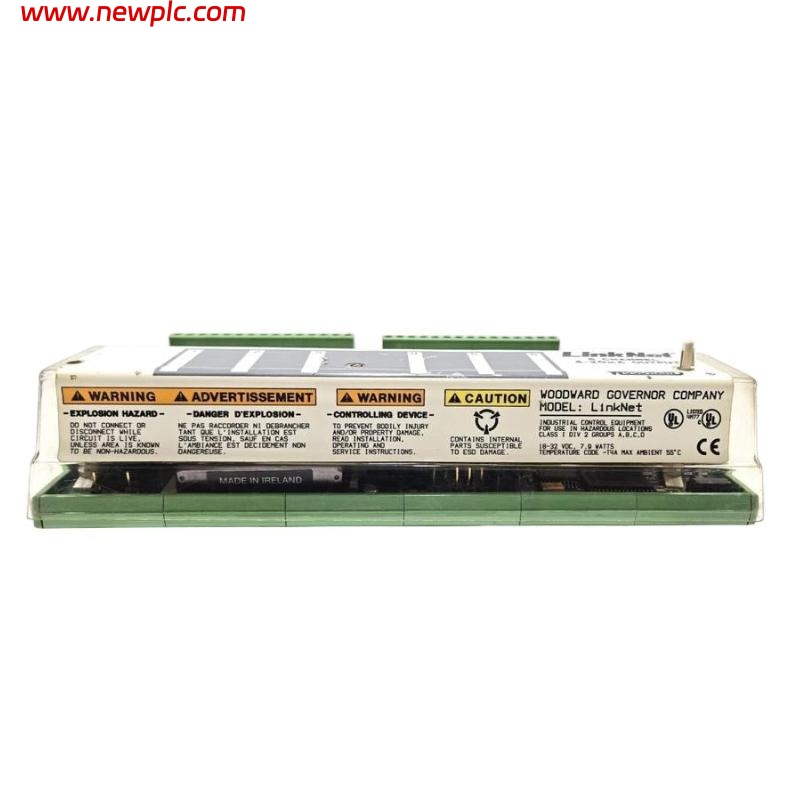

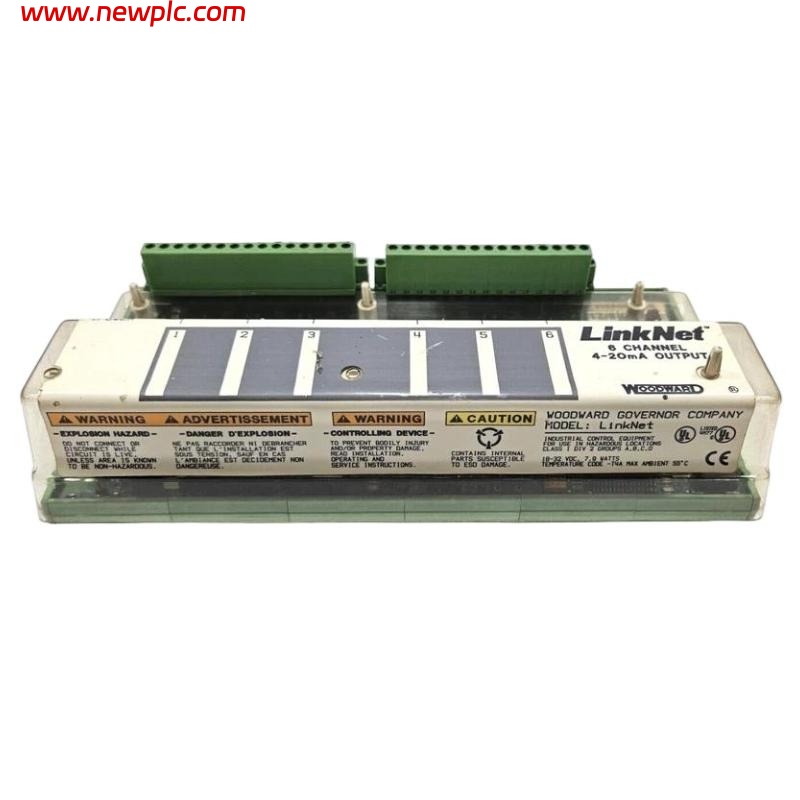

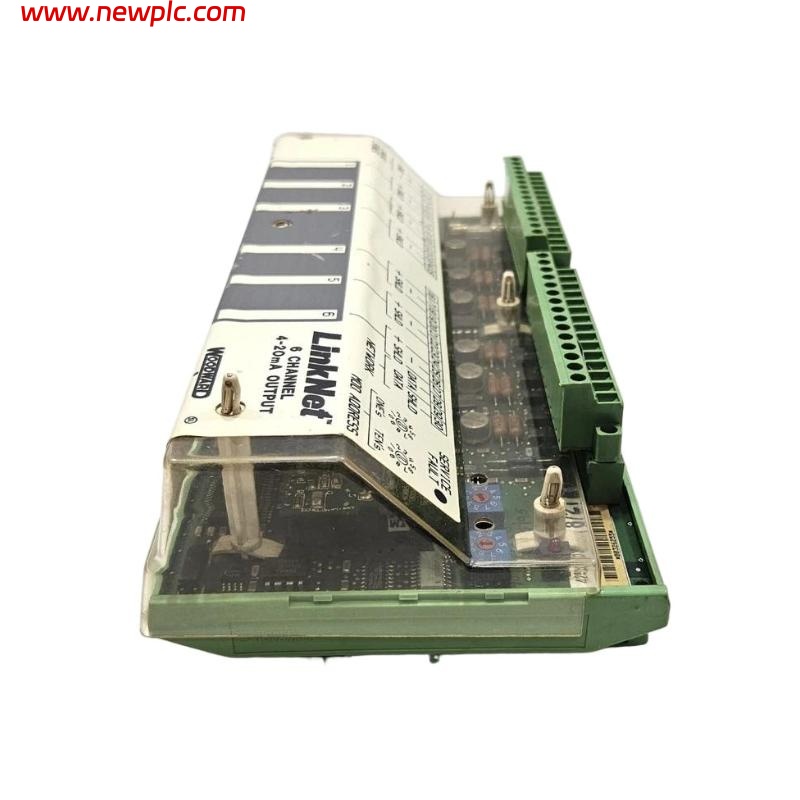

Woodward 9905-972 6-Channel Output Module

FAQ

Q1: What is the main function of the Woodward 9905-972?
A1: It provides six independent output channels to transmit control signals to actuators or external devices.

Q2: What signal types do the output channels support?
A2: Each output channel can be configured as either analog current (4–20 mA) or voltage output (0–10 V).

Q3: What is the power supply range for this module?
A3: The operating voltage range is 18 to 32 VDC, typically 24 VDC.

Q4: Does the module feature channel isolation?
A4: Yes, each channel is isolated from the others and from ground for improved safety and noise immunity.

Q5: What is the operating temperature range?
A5: The operating range is –40°C to +70°C, making it suitable for industrial environments.

Q6: How is the module installed?
A6: It can be mounted on a panel or DIN rail for easy cabinet integration.

Q7: How does the communication interface work?
A7: The module communicates internally with the main Woodward controller via a system bus.

Q8: What are the module’s dimensions and weight?
A8: The dimensions are 160 × 100 × 40 mm, and the weight is 0.59 kg.

6-Channel Output Module 9905-972 Woodward
