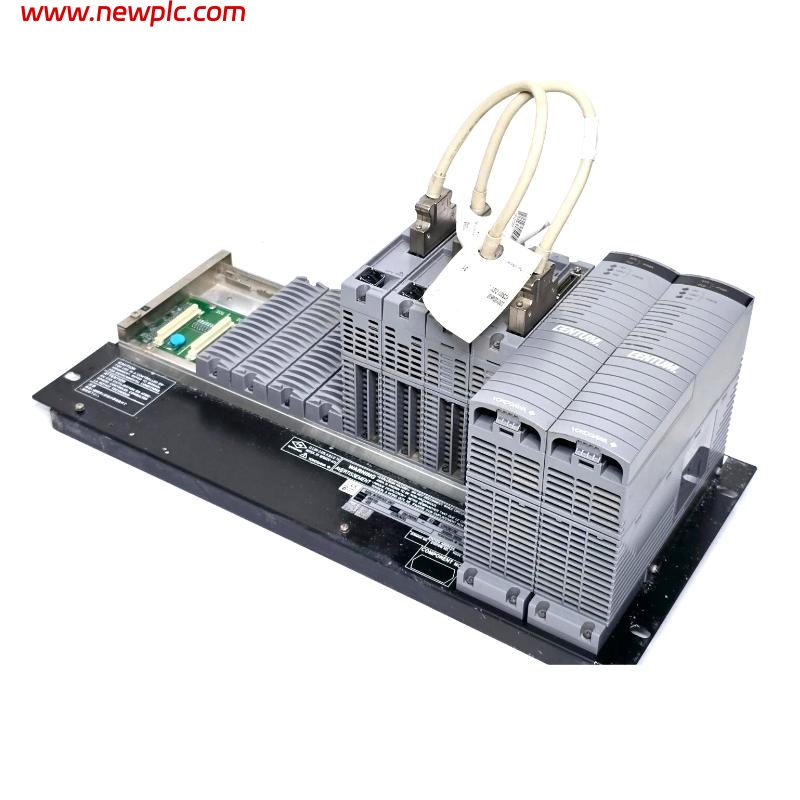

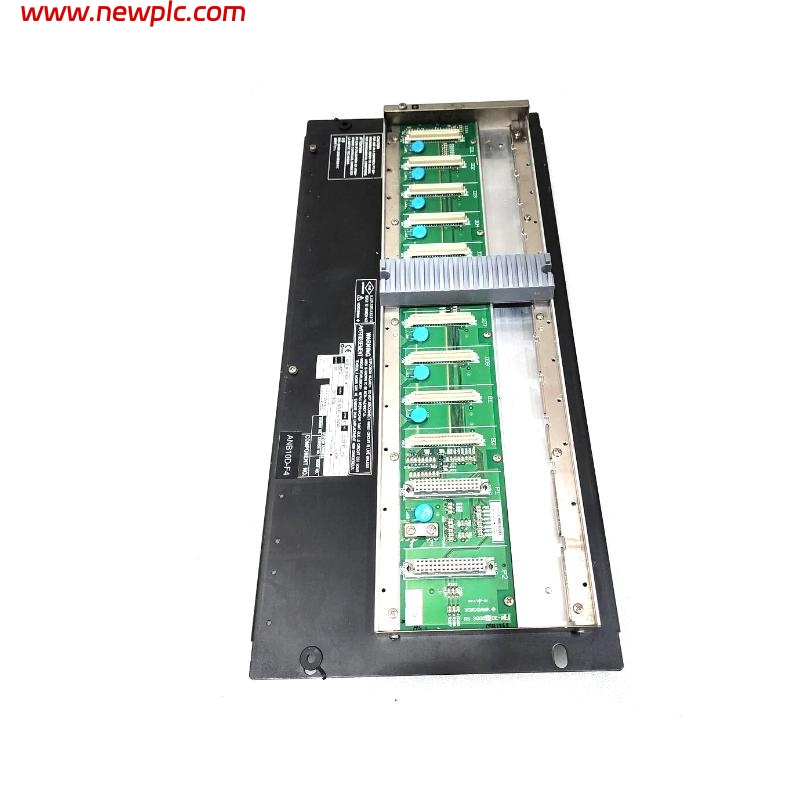

Yokogawa ANB10D-125/CU2T ESB Bus Node Unit

FAQ

• What is the maximum number of ESB Bus nodes that can be connected to one ANB10D-125/CU2T unit?
  The unit supports a standard ESB network configuration, allowing up to 32 nodes per bus segment depending on network design and termination.

• How does the CU2T connector affect signal integrity in the ESB Bus?
  The CU2T connector includes a built-in terminator, ensuring correct impedance matching and reducing reflections for reliable communication.

• Can the unit operate continuously in high vibration environments?
  Yes, the ANB10D-125/CU2T is rated for up to 10 G vibration between 5–50 Hz, suitable for most industrial environments.

• What redundancy mechanisms are integrated in the unit?
  Dual power supply inputs and redundant communication paths ensure uninterrupted operation during single-point failures.

• Is there a limit to the cable length between nodes in the ESB Bus?
  Yes, the ESB Bus supports up to 500 meters per segment without signal repeaters, subject to wiring standards.

• How are firmware updates handled for the ANB10D-125/CU2T?
  Firmware can be updated via the central Field Control Unit interface without requiring physical access to the node.

• What environmental conditions are required to ensure long-term reliability?
  Operating temperature should remain between -20 to +60°C, and humidity should be maintained at 10–90% non-condensing.

• Can multiple ANB10D-125/CU2T units be synchronized across different ESB segments?
  Yes, synchronization is possible through the FCU network management, ensuring coordinated timing and data integrity across segments.

ANB10D ANB10D-125/CU2T ESB Bus Node Unit Yokogawa
