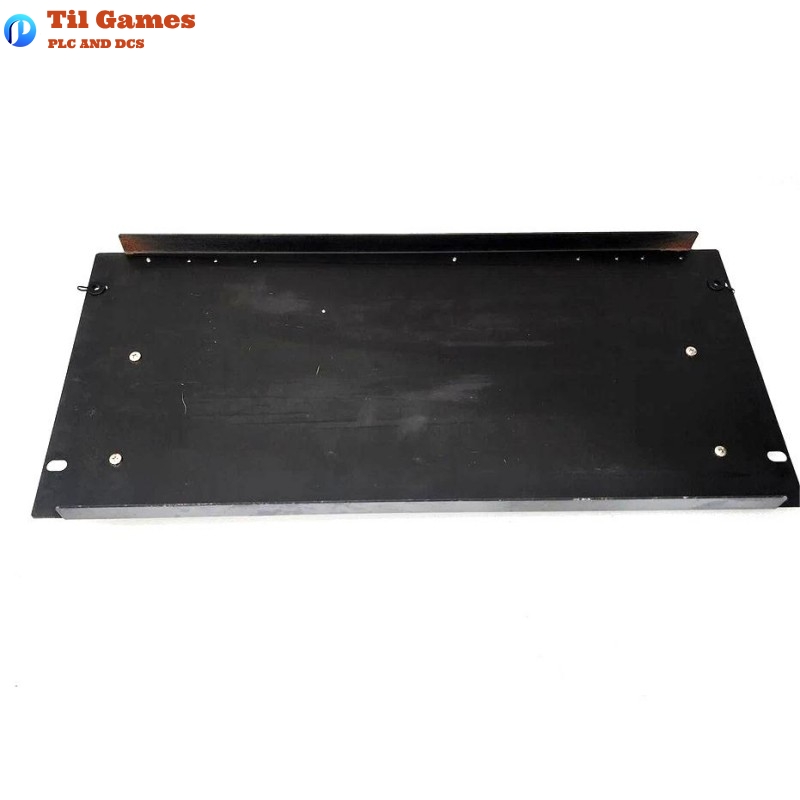

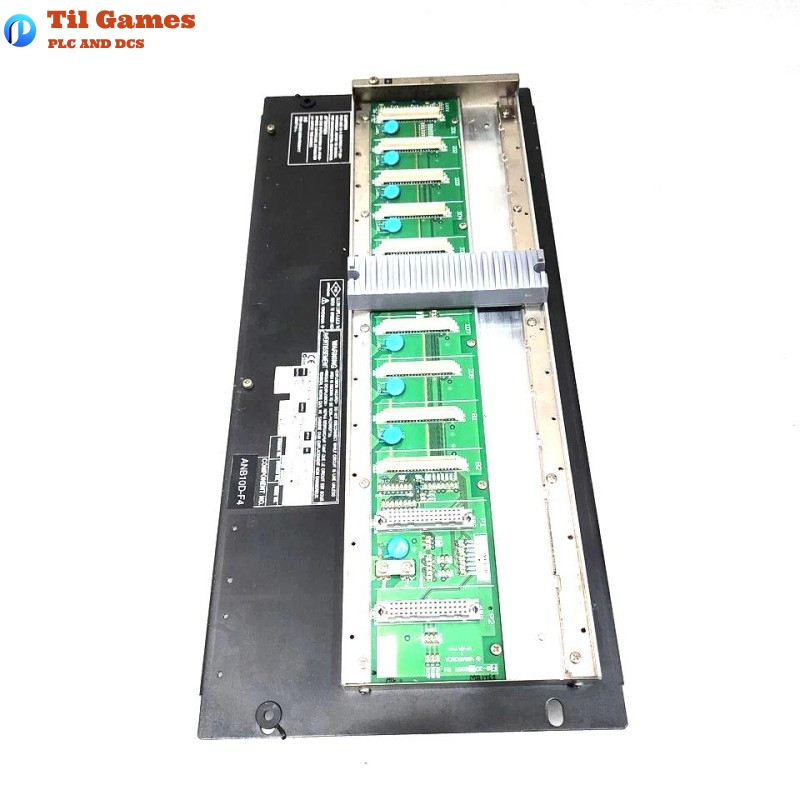

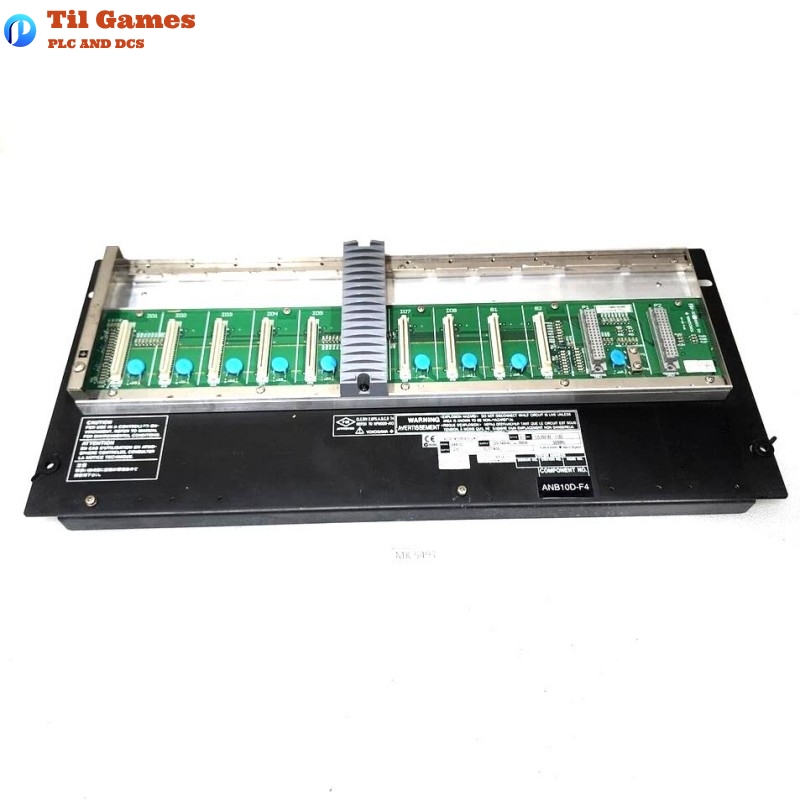

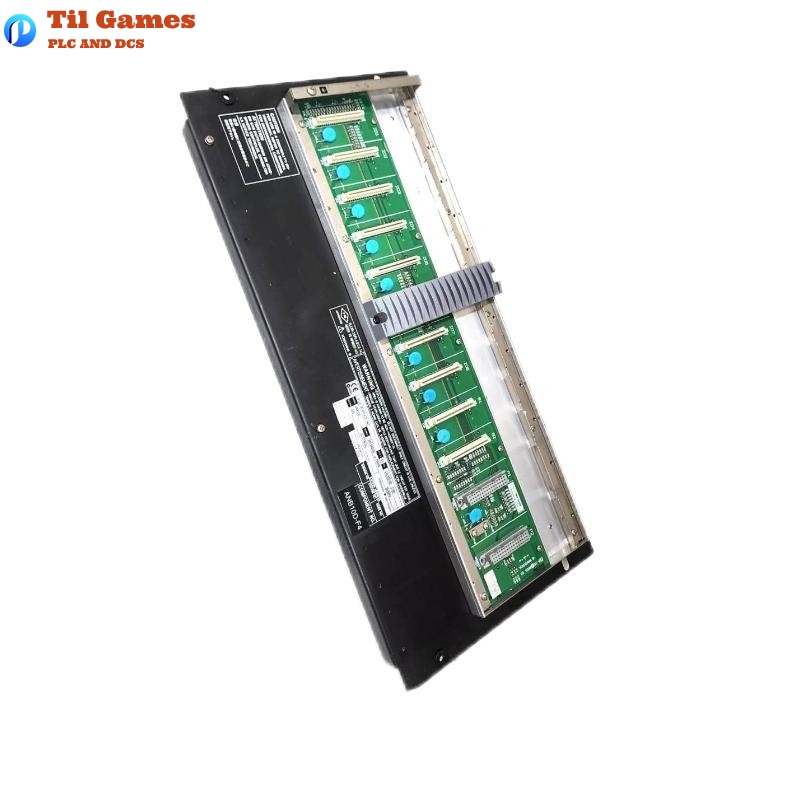

Yokogawa ANB10D S1 ESB Bus Node Units

Frequently Asked Questions (FAQ)

Q1: What systems is the ANB10D S1 ESB Bus Node Units compatible with?
A1: The ANB10D is compatible with CENTUM VP R6.01 and later systems, supporting connection with FCU via the ESB bus.

Q2: What power configurations are supported by the device?
A2: The device supports 100-120 V AC, 220-240 V AC, and 24 V DC power configurations.

Q3: What is the power consumption of the ANB10D?
A3: The power consumption is 200 VA, 120 W (100-120 V AC), 230 VA, 120 W (220-240 V AC), and 5.5 A (24 V DC).

Q4: What are the dimensions of the device?
A4: The dimensions of the device are 482.6 × 221.5 × 205 mm.

Q5: What I/O modules are supported by the device?
A5: The ANB10D supports up to 8 I/O modules, which can be mounted in a 19-inch rack.

Q6: What should be considered when installing the device?
A6: The device can be mounted in a 19-inch rack using M5 screws. Ensure proper module and power configuration during installation.

Q7: What is the operating temperature range of the ANB10D?
A7: The operating temperature range is from -20 ºC to 70 ºC, with an option to extend within this range.

Q8: Does the device have explosion protection?
A8: The ANB10D can be configured with explosion protection for environments where such features are necessary.
