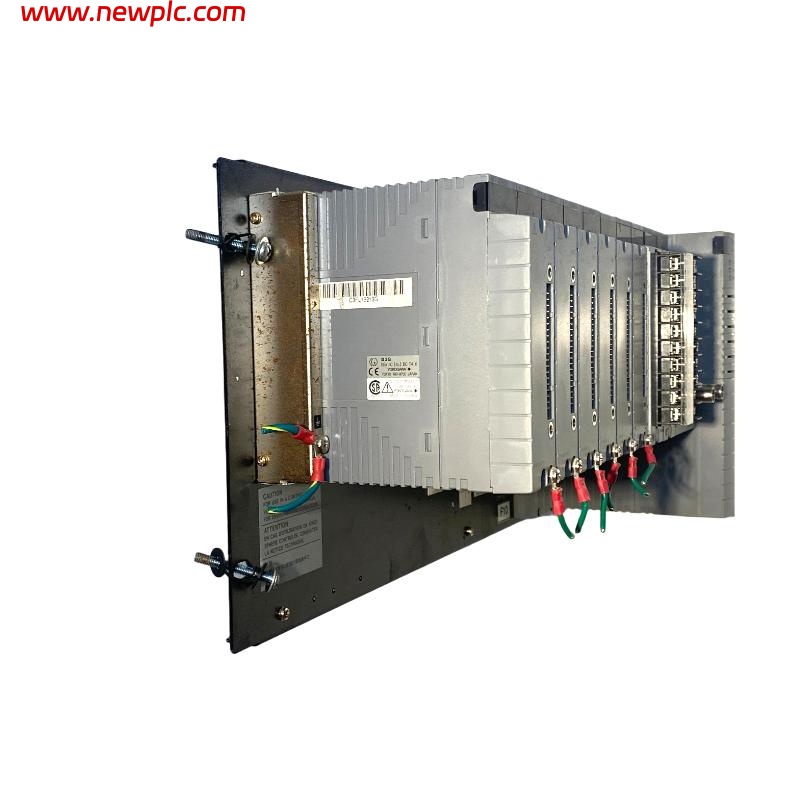

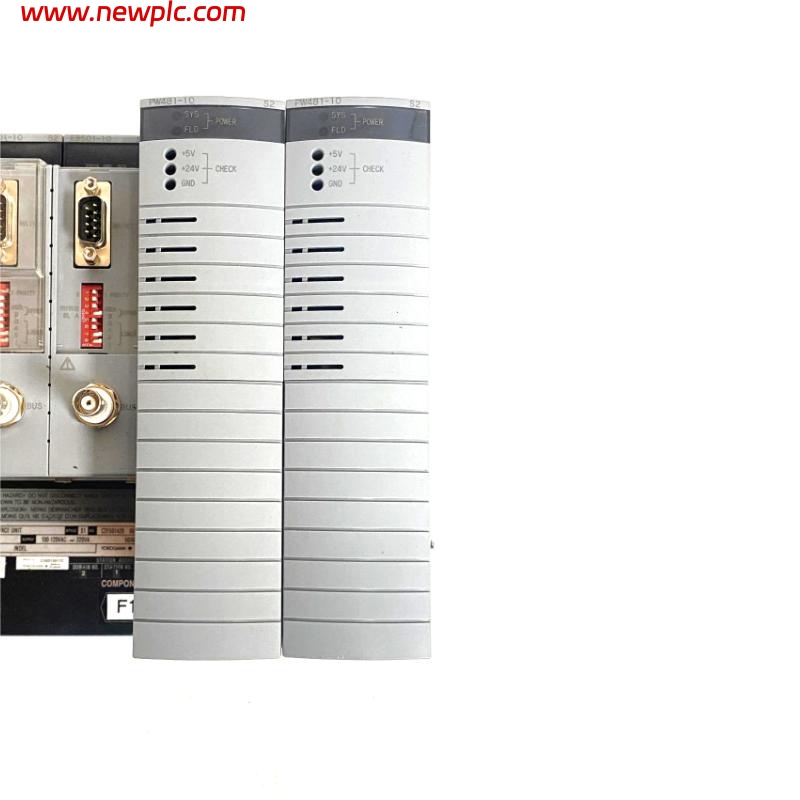

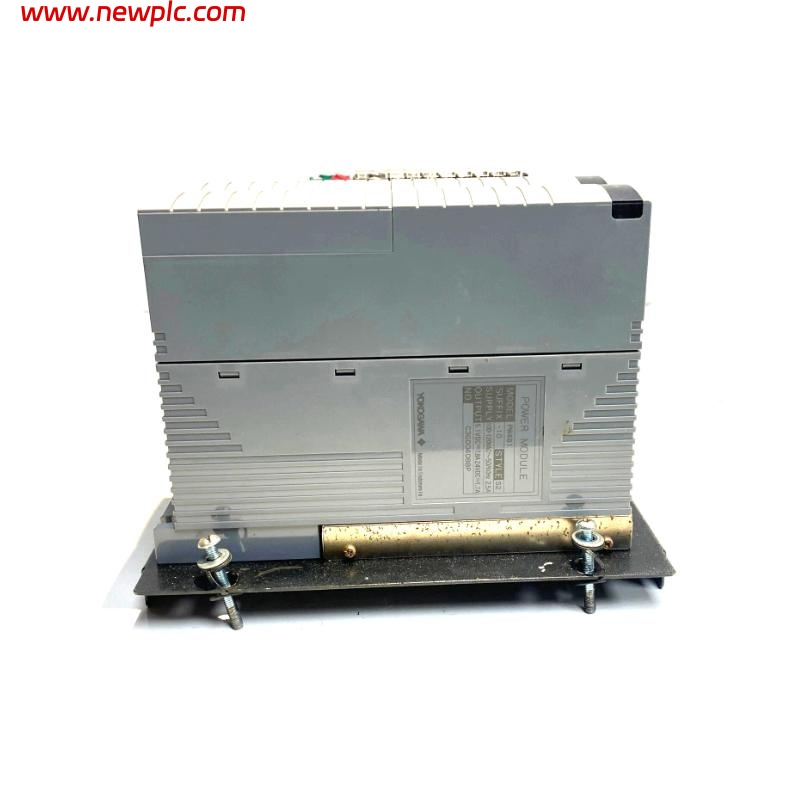

Yokogawa ANR10D Bus Node Unit

FAQ

Q1: What is the primary function of the Yokogawa ANR10D Bus Node Unit?
A1: The ANR10D is used as an ER Bus Node Unit to expand input/output connections for the AFV10 series Field Control Units.

Q2: What type of bus does the ANR10D connect to?
A2: The ANR10D connects to an ER bus designed for the AFV10 series control systems.

Q3: How many ANR10D units can be connected per FCU?
A3: A maximum of 14 ER bus node units can be connected per FCU when using the appropriate expansion package.

Q4: Is the communication redundant?
A4: Yes, the ANR10D supports both single and dual-redundant communication configurations.

Q5: What is the transmission speed of the ER bus when using the ANR10D?
A5: The ER bus transmits data at 10 Mbps.

Q6: What type of cables are used with the ANR10D?
A6: It uses coaxial cables YCB141 and YCB311 for ER bus connections.

Q7: What is the maximum allowable cable length?
A7: The maximum length for YCB141 cable is 185 m; longer distances require repeaters and must adhere to length constraints.

Q8: What are the dimensions and weight of the ANR10D?
A8: The ANR10D measures 482.6 × 221.5 × 205 mm and weighs approximately 10 kg.

ANR10D Bus Node Unit Yokogawa
