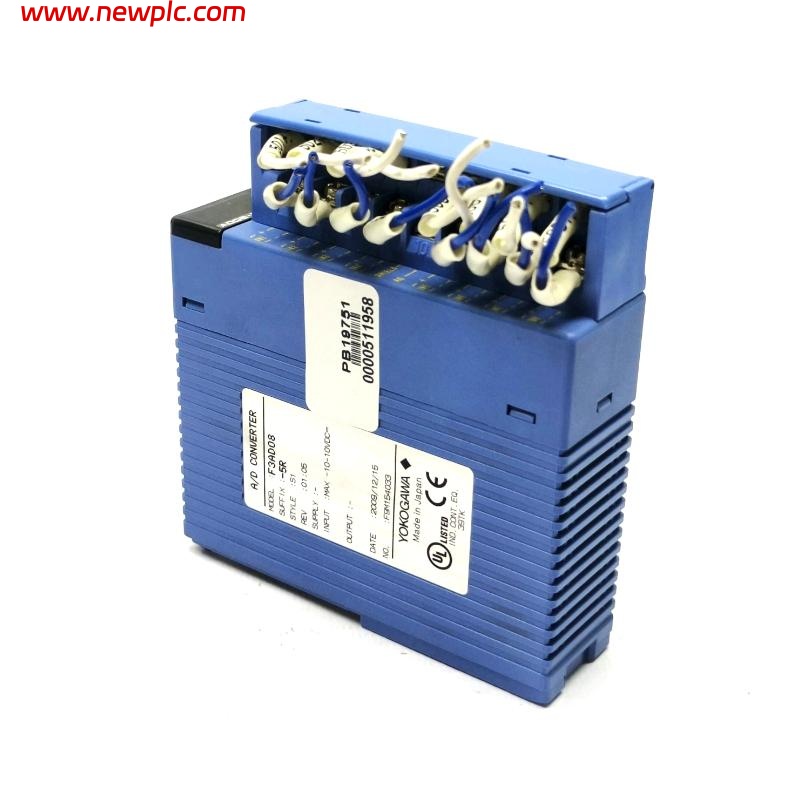

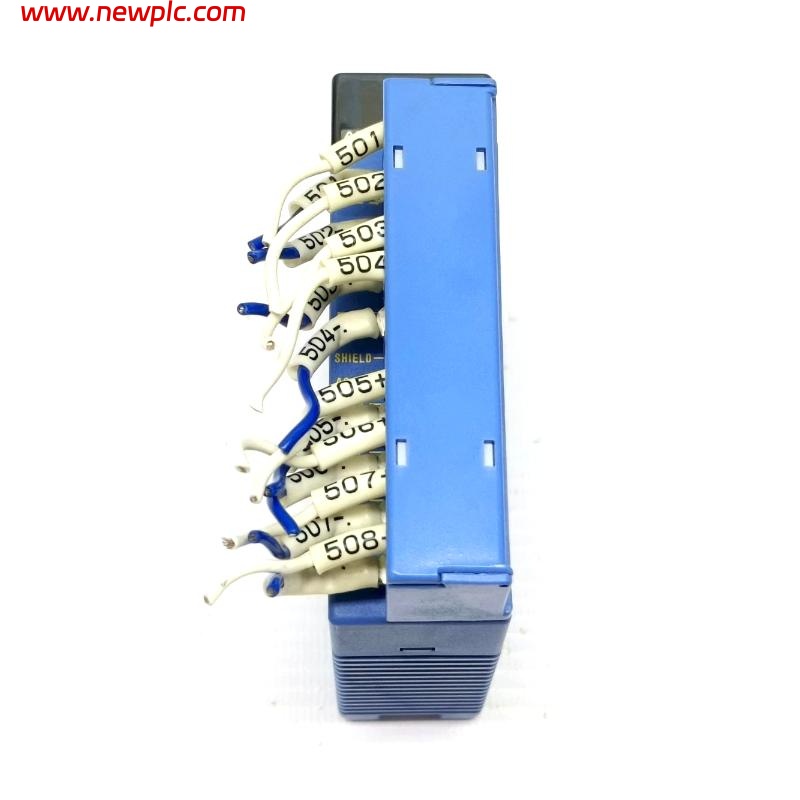

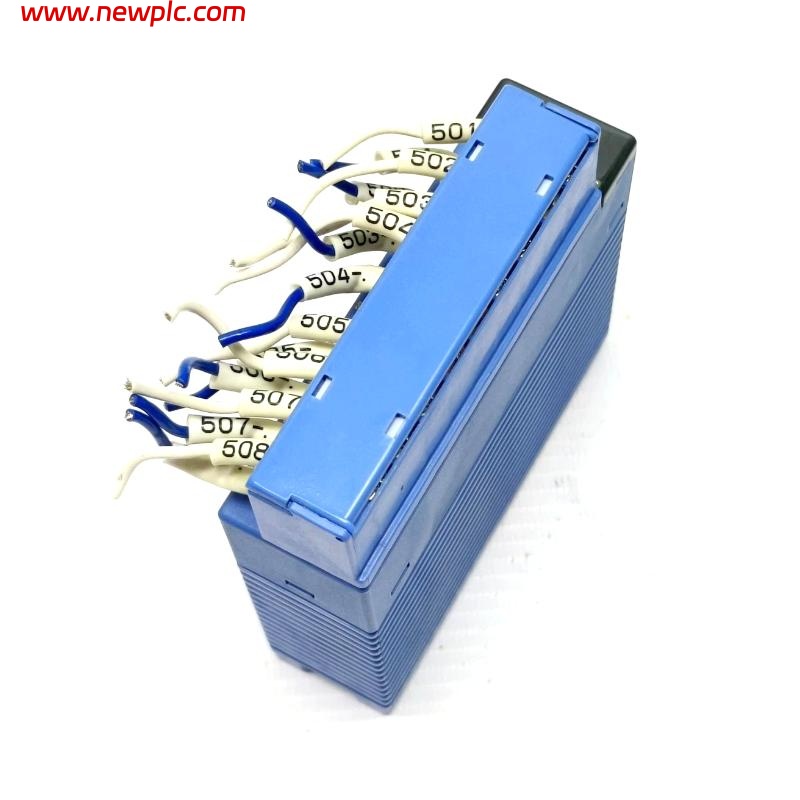

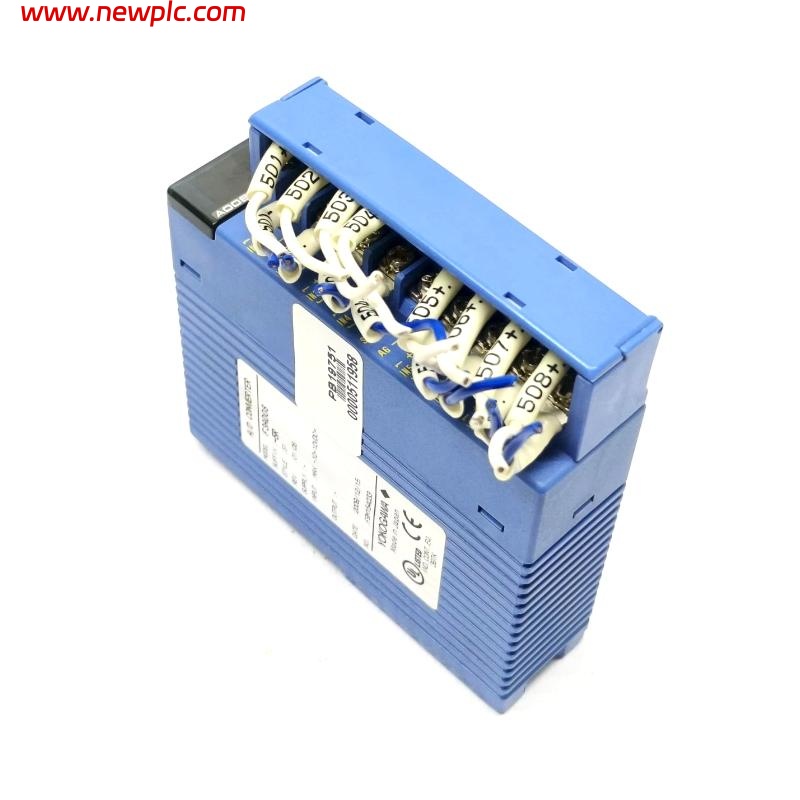

Yokogawa F3AD08-5R Analog Input Module

FAQ

• Q1: What types of input signals does the F3AD08-5R support?
  A1: The module supports only voltage input signals in the ranges 0–5 V DC, 1–5 V DC, 0–10 V DC, and -10–10 V DC. Current signals require conversion through external resistors.

• Q2: How is the isolation implemented in the F3AD08-5R module?
  A2: Optical isolation is used between the input terminals and the internal circuitry to protect the PLC and ensure signal integrity.

• Q3: What is the resolution of the analog-to-digital conversion?
  A3: The module features a 16-bit A/D converter, allowing high-precision signal measurement.

• Q4: Can the module handle both single-ended and differential inputs?
  A4: The module is designed specifically for differential voltage inputs to minimize noise and improve measurement accuracy.

• Q5: What are the temperature effects on measurement accuracy?
  A5: Accuracy is ±0.1% of full scale at 23 ±2°C and ±0.2% of full scale over the operating range of 0–55°C.

• Q6: How fast can the F3AD08-5R perform conversions?
  A6: Conversion speed can be selected between 50 μs and 100 ms per module depending on system requirements.

• Q7: What is the maximum common mode voltage allowed?
  A7: The maximum common mode voltage is ±1 V DC for the -10–10 V and 0–10 V input ranges.

• Q8: What is the physical size and weight of the module?
  A8: The module measures 28.9 × 100 × 106.1 mm and weighs 0.2 kg, making it compact for integration into FA-M3 PLC systems.

Analog Input Module F3AD08 F3AD08-5R Yokogawa
