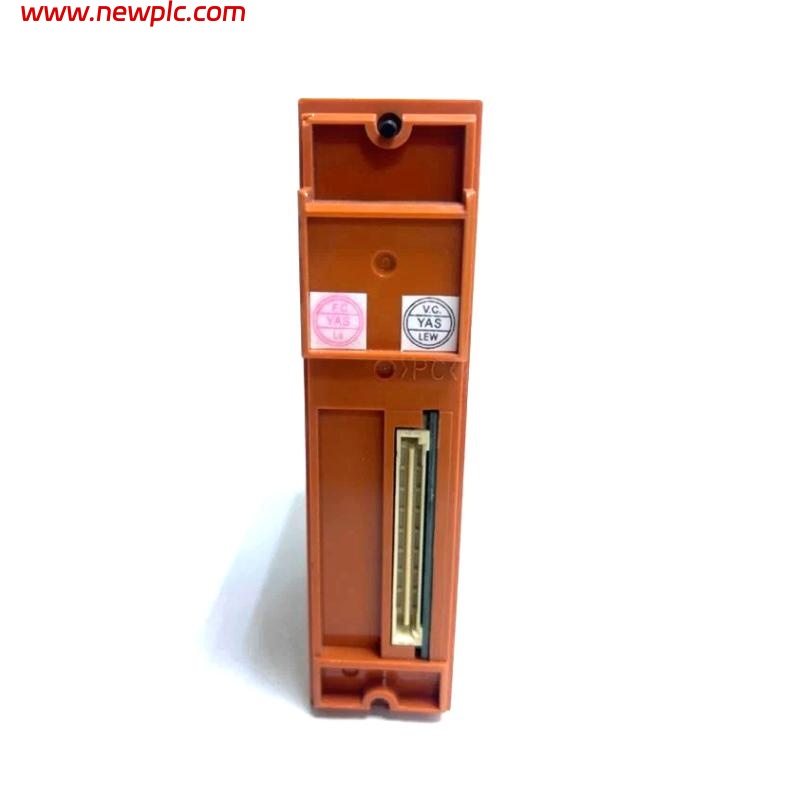

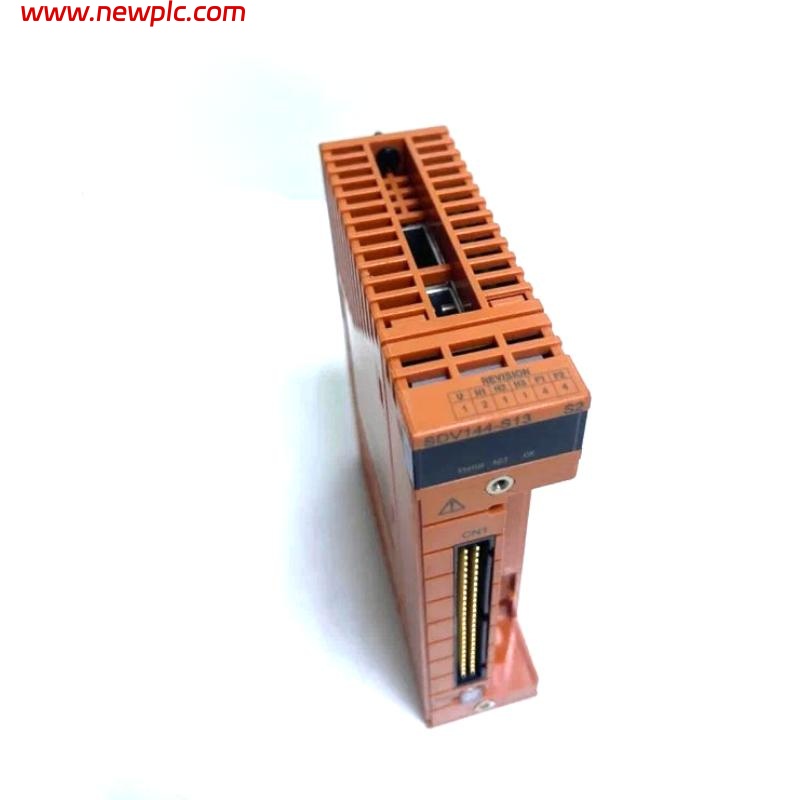

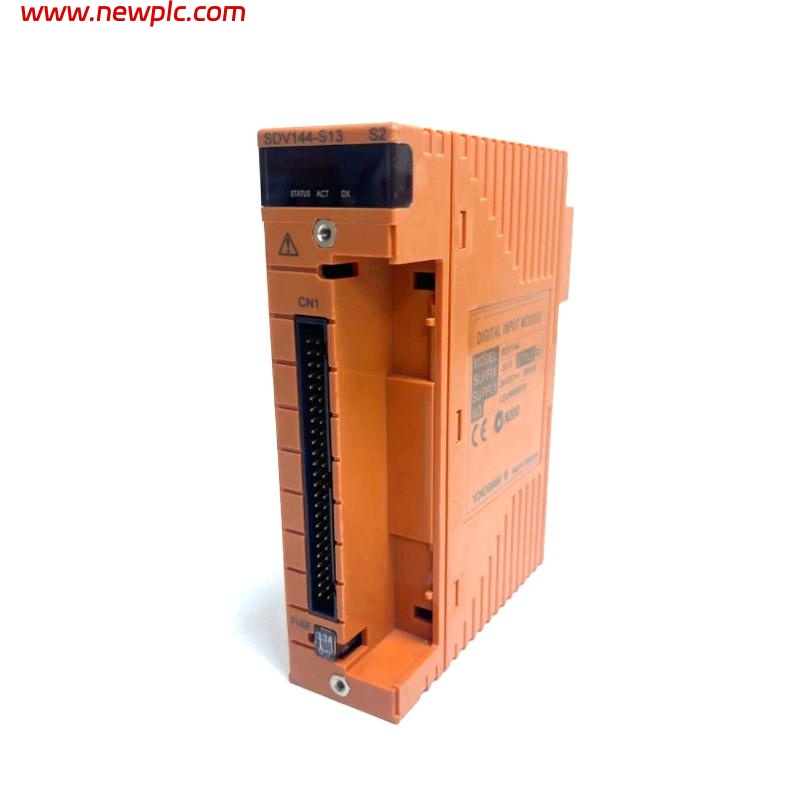

Yokogawa SDV144-S13/B4D00 Digital Input Module

FAQ

• Q1: What is the maximum input response time of the SDV144-S13/B4D00 module?
  A1: The maximum input response time is 40 ms.

• Q2: Can the SDV144-S13/B4D00 module be configured in a dual-redundant system?
  A2: Yes, the module supports dual-redundant configuration with an additional module of the same specification.

• Q3: What types of input signals does the SDV144 accept?
  A3: It accepts no-voltage contact signals with ON ≤ 1 kΩ and OFF ≥ 100 kΩ.

• Q4: What is the contact rating for field devices connected to the module?
  A4: 24 V DC ± 20% with a minimum current of 10 mA.

• Q5: What is the withstand voltage between input signals and the system?
  A5: 2 kV AC for 1 minute when all 16 input lines are collectively connected.

• Q6: What is the recommended external power supply for the SDV144 module?
  A6: 24 V DC ± 20% with a current capacity of 200 mA.

• Q7: Are there specific connection options for preventing wrong module insertion?
  A7: Yes, a prevention pin of false insertion is supported when using the signal cable.

• Q8: What is the weight and dimensions of the SDV144-S13/B4D00 module?
  A8: Weight is 0.36 kg, and dimensions are 130 x 32.8 x 107.5 mm.

Digital Input Module SDV144 SDV144-S13/B4D00 Yokogawa
