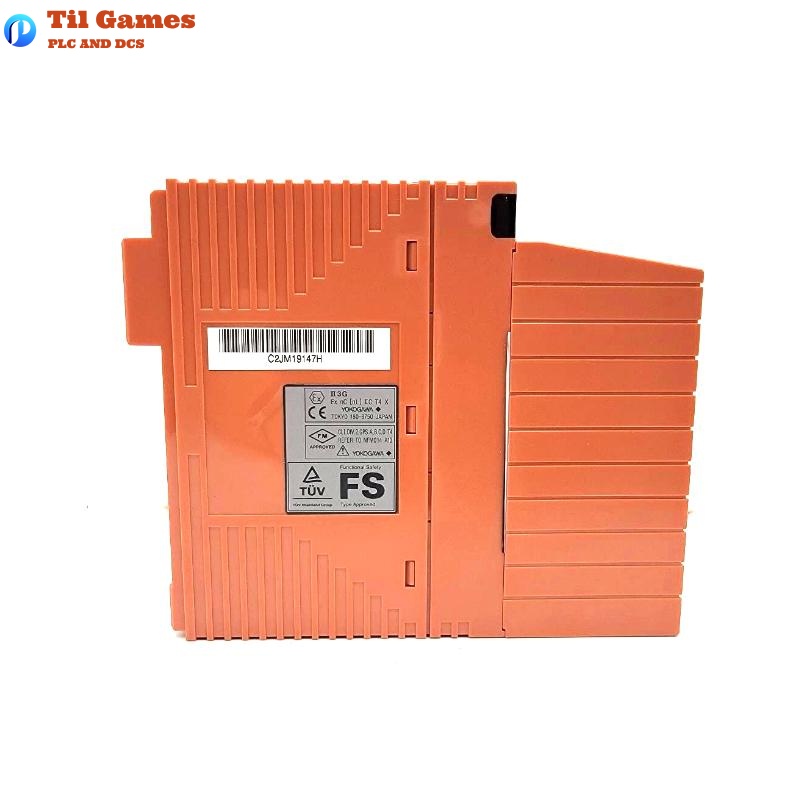

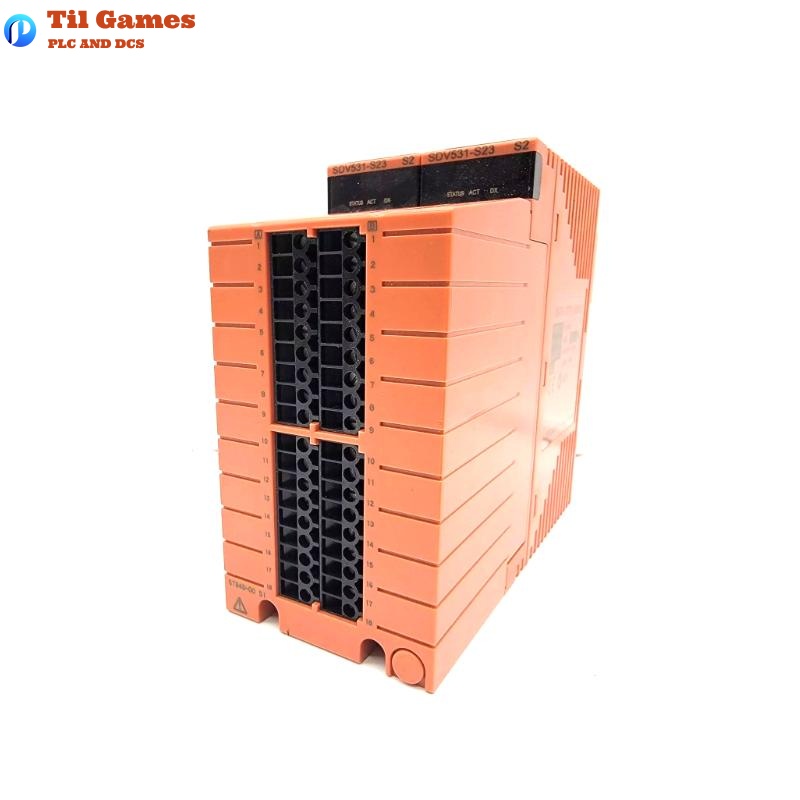

Yokogawa SDV531-S13 Digital Output Module

Frequently Asked Questions (FAQ)

Q1: What is the rated output voltage of the SDV531-S13 module?
A1: The rated output voltage is 24 V DC.

Q2: How many output channels does the SDV531-S13 provide?
A2: It provides 8 output channels with module-level isolation.

Q3: What is the maximum load current per channel?
A3: The maximum load current is 0.6 A per channel, with a total limit of 4.8 A.

Q4: What kind of output format does this module use?
A4: The module uses a current source output format.

Q5: What is the range of acceptable load resistance?
A5: The acceptable load resistance ranges from 40 to 685 ohms.

Q6: Is the SDV531-S13 suitable for redundant configurations?
A6: Yes, it can be configured in a dual-redundant setup.

Q7: What is the typical output response time?
A7: The output response time is up to 30 milliseconds.

Q8: What is the weight and size of the SDV531-S13?
A8: It weighs approximately 0.28 kg and measures 130 x 107.5 x 32.8 mm.

Digital Output Module SDV531-S13 Yokogawa
