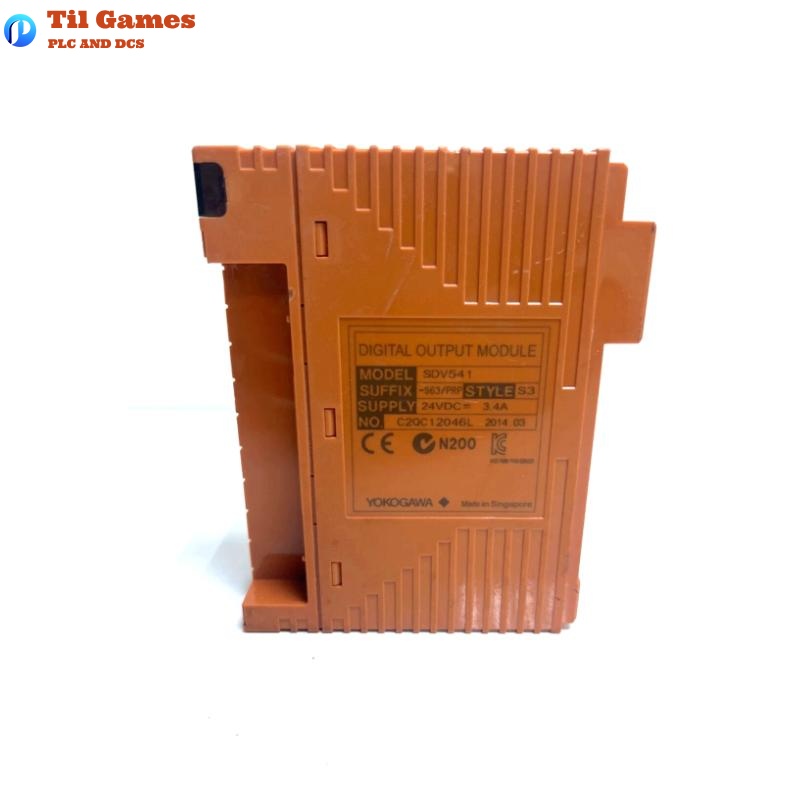

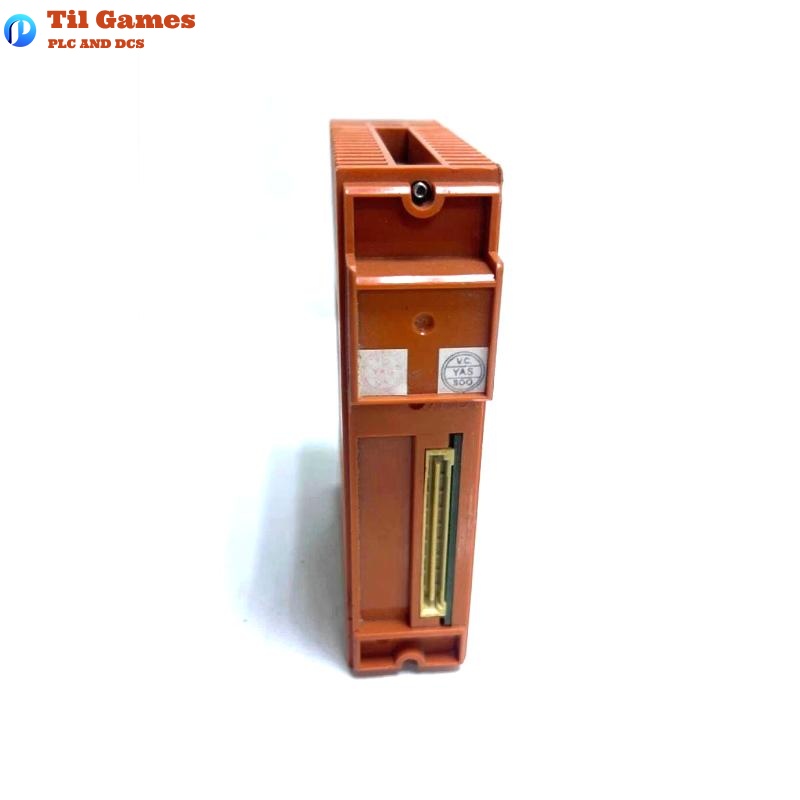

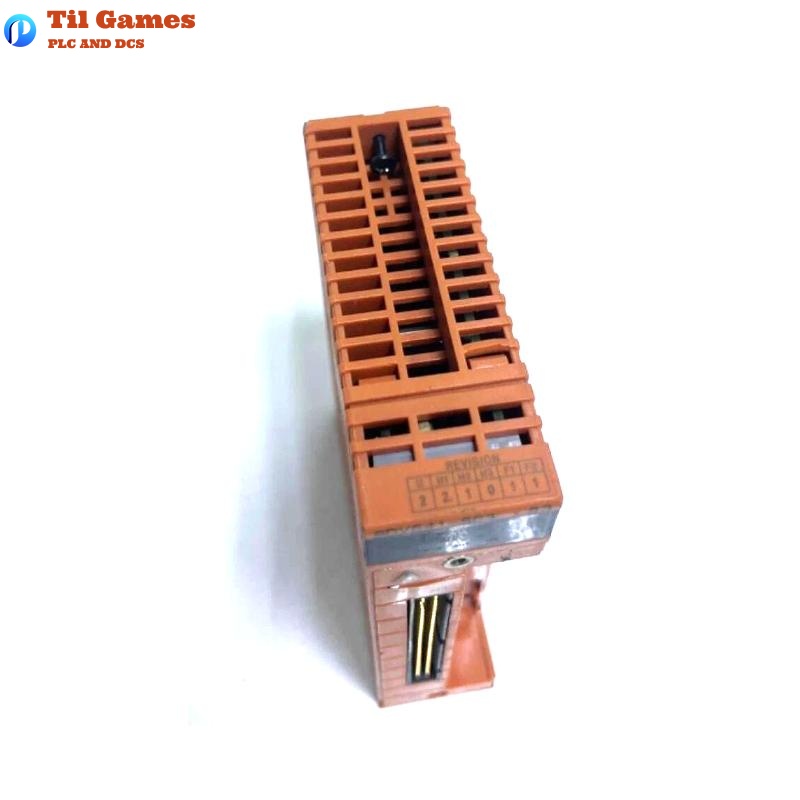

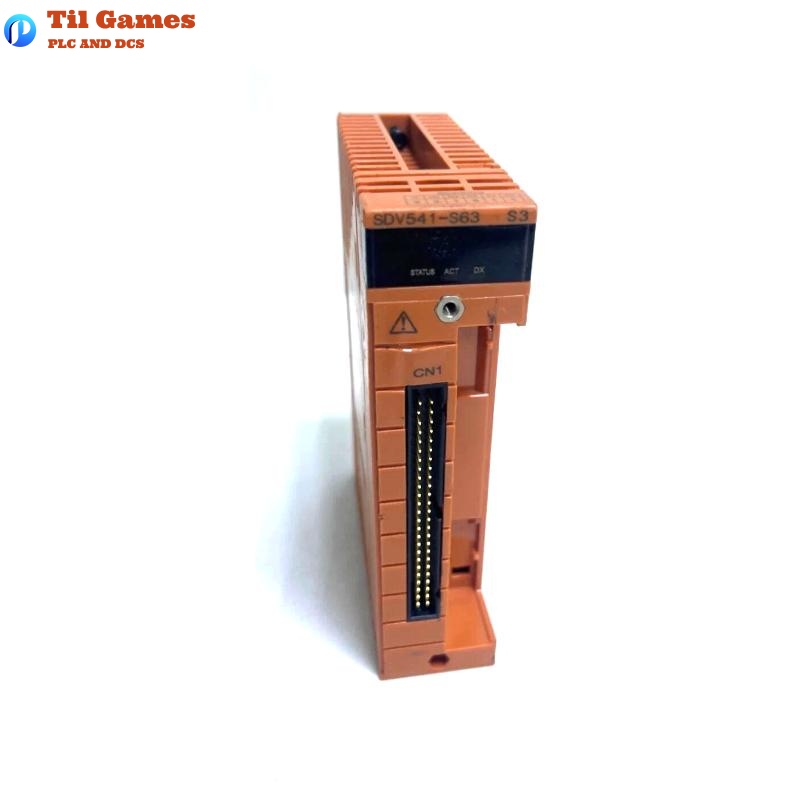

Yokogawa SDV541-S63 Digital Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the SDV541 module support?
A1: It supports 16 isolated digital output channels.

Q2: What is the standard output voltage?
A2: The output voltage is 24 V DC with a maximum drop of 1 V.

Q3: What is the maximum load current per channel?
A3: 0.2 A per output channel, with a total maximum of 3.2 A.

Q4: Are there any specific signal cables required?
A4: Yes, use dedicated signal cables such as AKB331 or AKB651.

Q5: Does this module support wiring diagnostics?
A5: Yes, it includes built-in field wiring diagnostic functions.

Q6: What is the output response time of the module?
A6: The maximum response time is 30 milliseconds.

Q7: What is the required external power supply range?
A7: The required voltage range is 24 V DC with a tolerance of +20% / -10%.

Q8: What are the physical dimensions and weight?
A8: The dimensions are 130 x 107.5 x 32.8 mm, and the weight is approximately 0.31 kg (with adapter).

Digital Output Module SDV541-S63 Yokogawa
