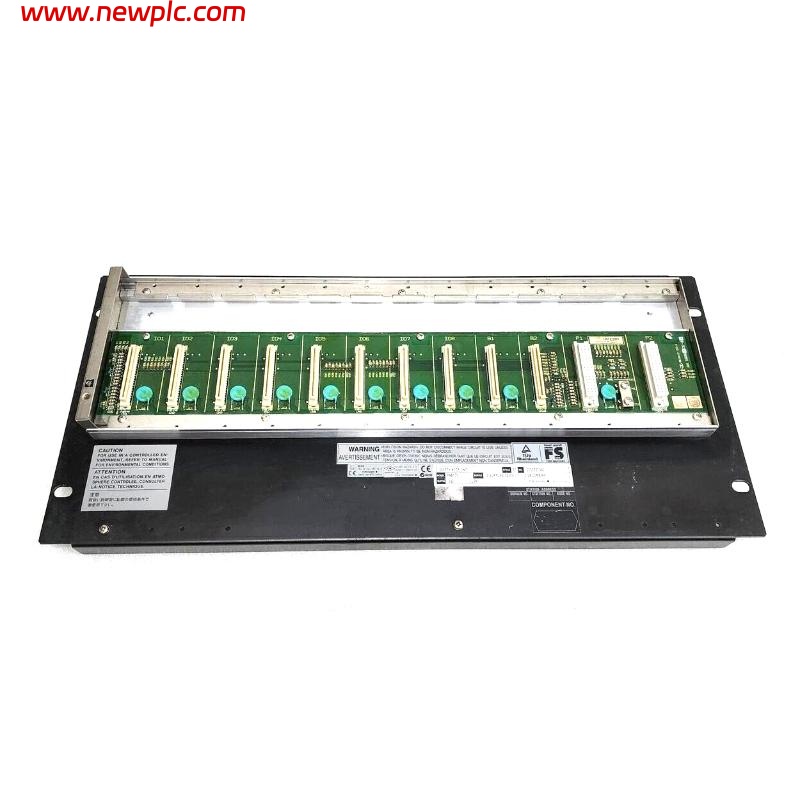

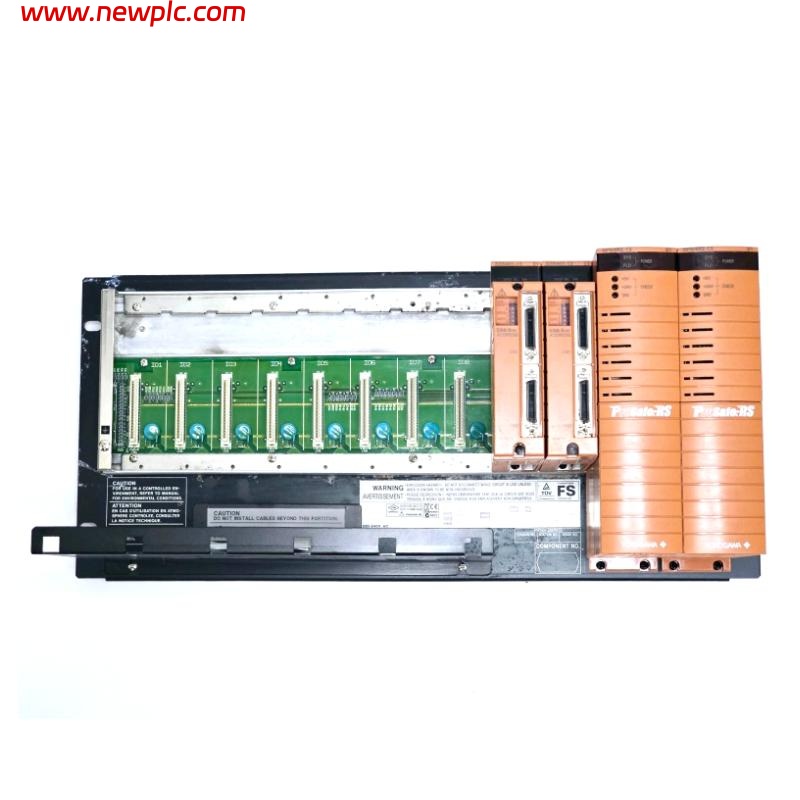

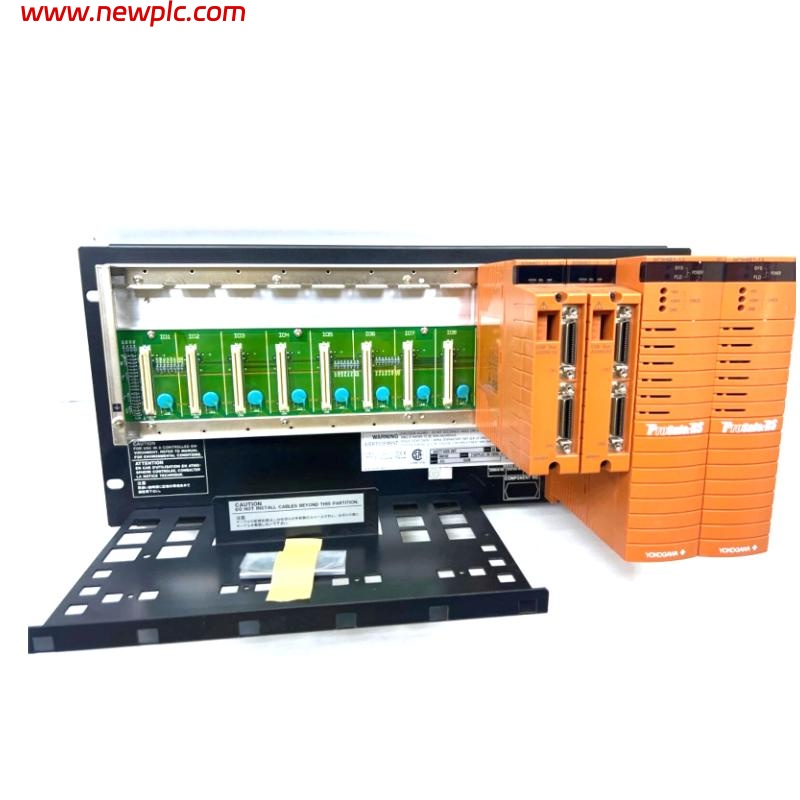

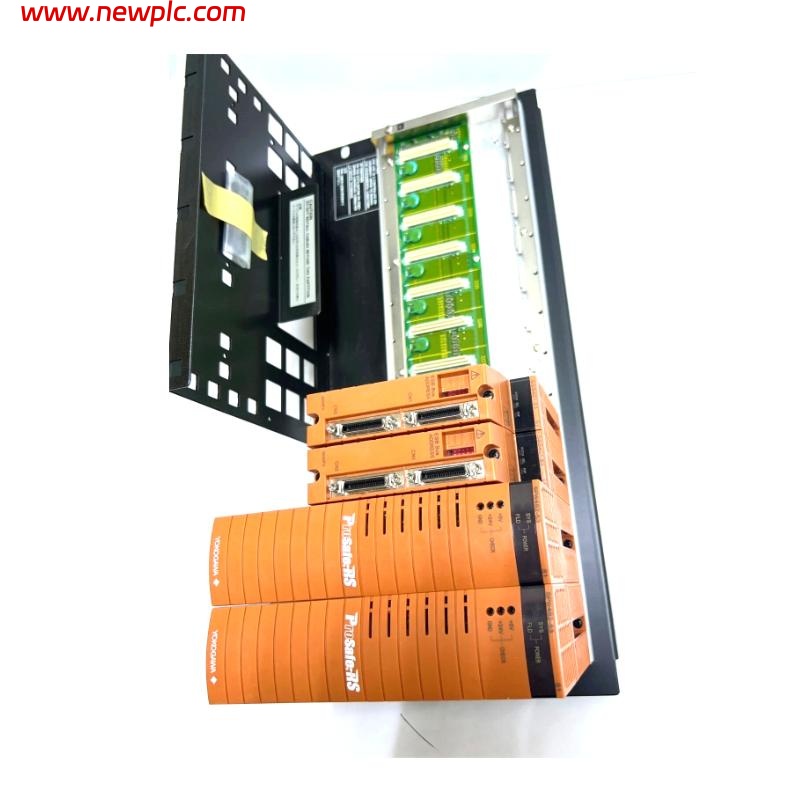

Yokogawa SNB10D-415/CU2N Safety Node Unit (Rack Mountable Type)

FAQ

• Q1: What is the primary function of the SNB10D-415/CU2N Safety Node Unit?
  A1: It facilitates safe and reliable transmission of analog and contact input signals from field devices to the ProSafe-RS safety control system while providing power to connected I/O modules.

• Q2: Which communication protocol does the SNB10D-415/CU2N use?
  A2: The unit communicates via the Ethernet Safety Bus (ESB) to ensure deterministic and fault-tolerant data transmission in safety applications.

• Q3: Can the SNB10D-415/CU2N operate in dual-redundant configurations?
  A3: Yes, it supports dual-redundant power supply modules to maintain system reliability in safety-critical environments.

• Q4: What is the recommended operating temperature range?
  A4: The unit operates within -20°C to 70°C as per ISA Standard G3 specifications.

• Q5: How are the modules installed in the rack?
  A5: The SNB10D-415/CU2N is mounted on a 19-inch rack using four M5 screws with insulation bushes provided for safe installation.

• Q6: What is the power consumption for each supply voltage option?
  A6: 100–120 V AC: 200 VA, 220–240 V AC: 230 VA, 24 V DC: 5.5 A.

• Q7: What types of modules can be connected to the SNB10D-415/CU2N?
  A7: It supports Power Supply Modules (SPW481-53) and ESB Bus Interface Modules (SSB401-53).

• Q8: Is the SNB10D-415/CU2N suitable for hazardous areas?
  A8: No, this unit is designed without explosion protection and should be used in standard industrial environments.

Safety Node Unit SNB10D-415 SNB10D-415/CU2N Yokogawa Yokogawa SNB10D
