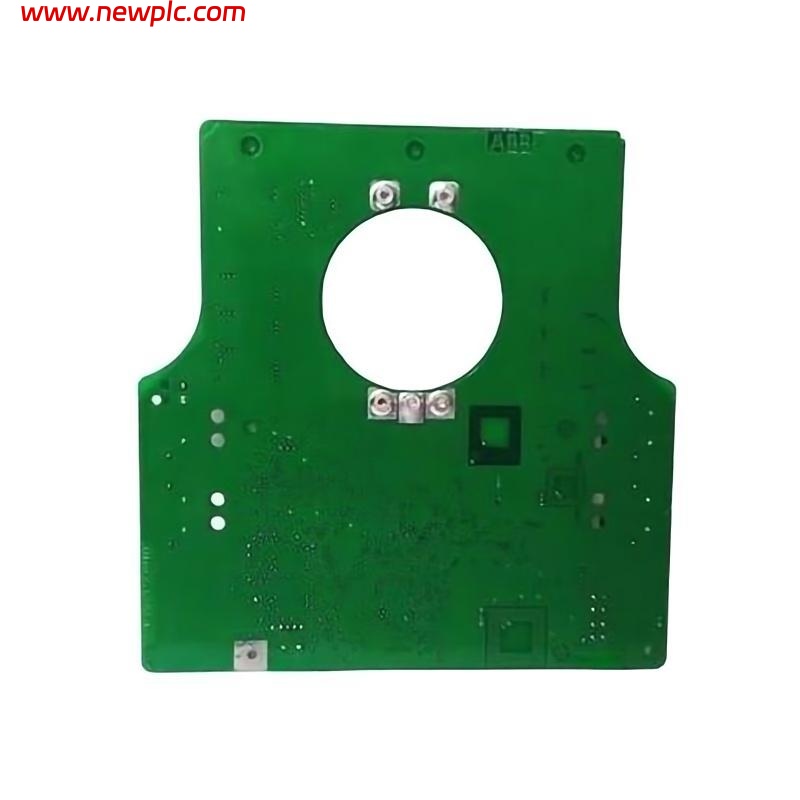

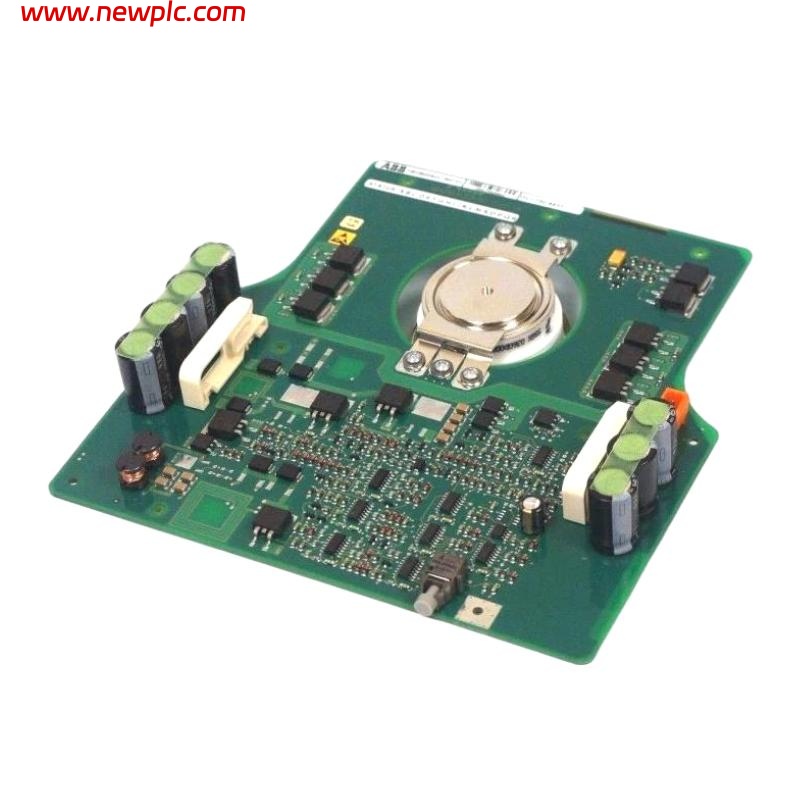

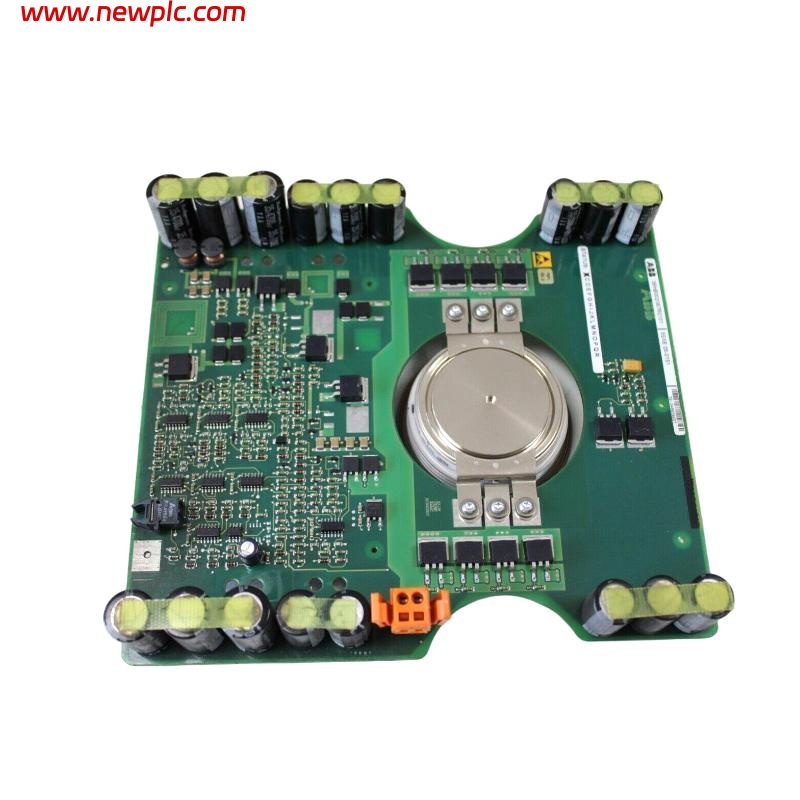

ABB 5SHX0445D0001 3BHL000382P0101 IGCT Modules

FAQ

Q1: What is the ABB 5SHX0445D0001 module used for?
It is used in high-power switching applications such as medium-voltage converters and industrial drives.

Q2: What is the rated voltage and current of this IGCT?
It is rated for 4500 V and 445 A continuous current.

Q3: What type of device is the 5SHX0445D0001?
It is an IGCT (Integrated Gate Commutated Thyristor), combining the low-loss characteristics of a thyristor with fast switching capabilities of a transistor.

Q4: Does this module include an integrated diode?
Yes, the “D” in the part number indicates an integrated anti-parallel diode.

Q5: What are its typical applications?
It is used in ABB medium-voltage drives, frequency converters, and inverter systems for efficient power control.

Q6: How is the module cooled?
It supports both forced-air and water-cooled configurations depending on system requirements.

Q7: What are the physical dimensions and weight of the module?
The dimensions are 190 x 140 x 38 mm and it weighs approximately 1.2 kg.

Q8: What is the main advantage of using IGCT technology?
It provides high efficiency, low switching losses, and superior reliability for demanding industrial environments.

3BHL000382P0101 5SHX0445D0001 ABB IGCT Module
