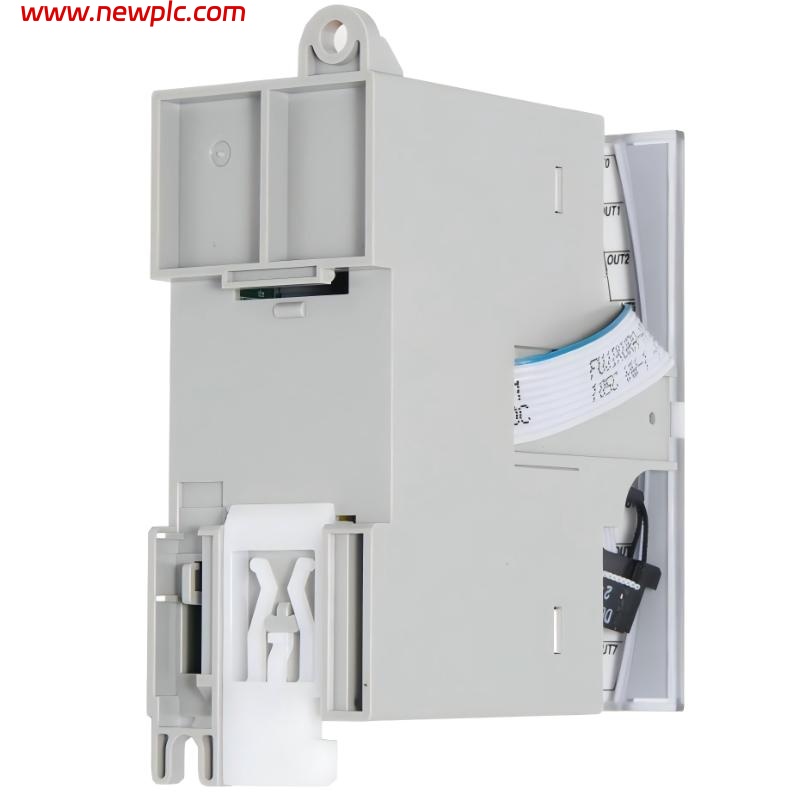

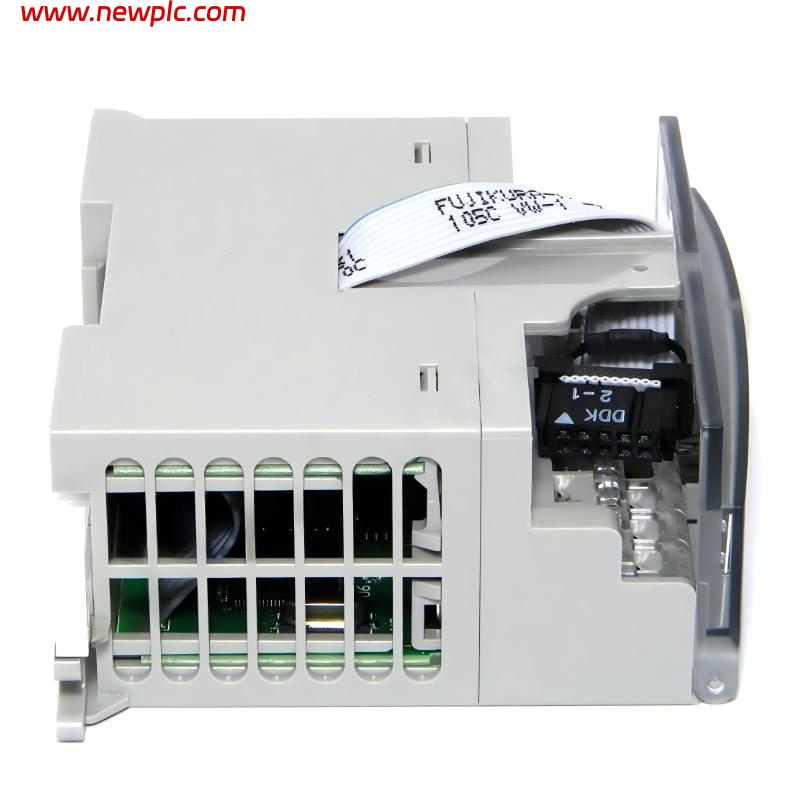

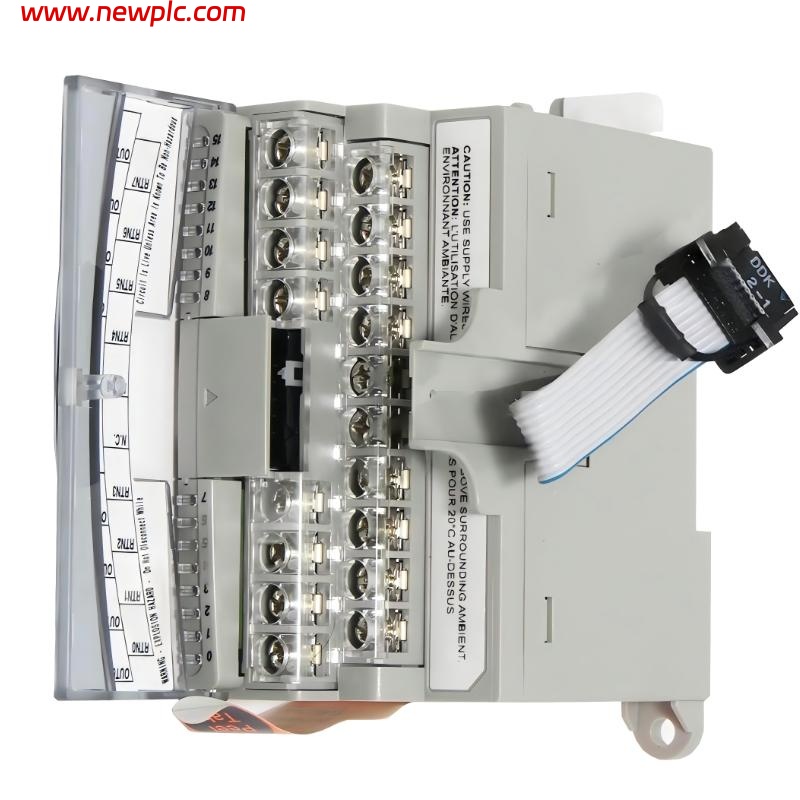

Allen Bradley 1762SC-OF8 8‑channel analog output expansion module

FAQ

Q1. What is the 1762SC‑OF8 module used for?
It provides eight configurable analog outputs for voltage or current signals in a MicroLogix PLC system.

Q2. How many analog outputs does the module have?
It has 8 analog output channels.

Q3. What signal types can each channel output?
Each channel can output voltage (0–5 V, 1–5 V, 0–10 V, ±10 V) or current (0–20 mA, 4–20 mA).

Q4. What resolution do the outputs provide?
Outputs have 16‑bit resolution for high precision.

Q5. What is the typical output accuracy?
Typical accuracy is ±20 mV for voltage and ±50 µA for current at 25 °C.

Q6. What are the environmental operating limits?
It operates from –20 °C to 60 °C with 5 % to 95 % non‑condensing humidity.

Q7. What are the physical dimensions and weight?
The module measures approximately 90 mm × 40 mm × 87 mm and weighs about 0.28 kg.

Q8. With which controllers is this module compatible?
It is compatible with MicroLogix 1100, 1200, and 1400 series PLCs.

1762SC-OF8 Allen Bradley
