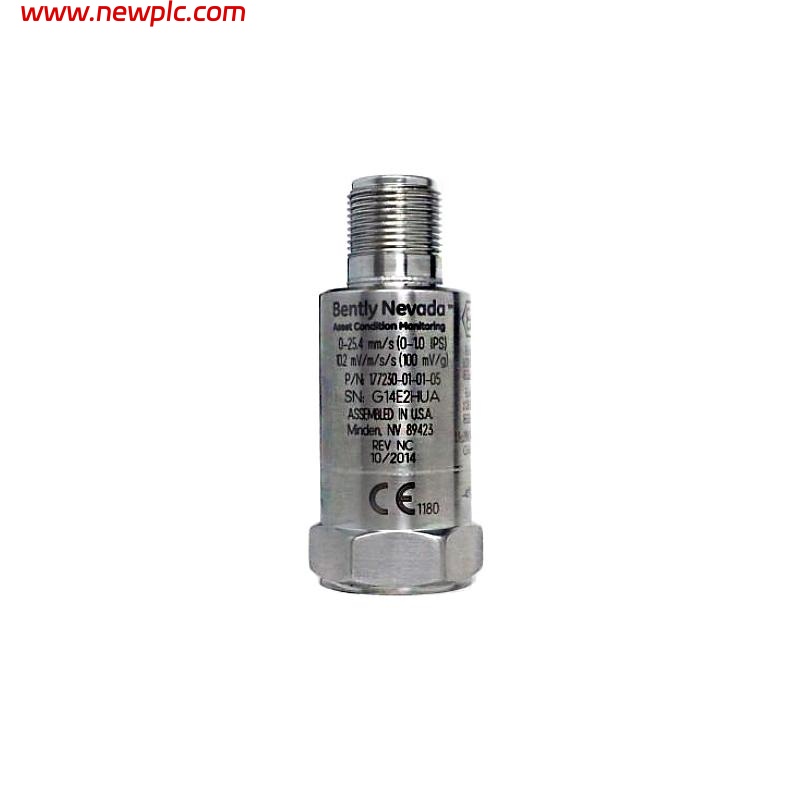

Bently Nevada 177230-02-01-CN Loop-powered Seismic

FAQ

Q1: What is the purpose of the 177230-02-01-CN transmitter?
A1: It is a seismic transmitter that measures machine vibration and converts it into a 4–20 mA current signal for PLC, DCS, or SCADA system monitoring.

Q2: What is the velocity measurement range?
A2: It measures vibration velocity from 0 to 50.8 mm/s RMS (0 to 2.0 in/s), suitable for a wide range of industrial machinery.

Q3: Does it provide an acceleration output?
A3: Yes, it provides an unbuffered acceleration signal through a voltage output for diagnostic or dynamic analysis.

Q4: What power supply is required?
A4: The device operates from 12 to 30 V DC with current limited to a maximum of 40 mA.

Q5: What are its physical dimensions and weight?
A5: The transmitter measures 25.4 mm in diameter and 66 mm in height, weighing approximately 0.131 kg.

Q6: What are the environmental operating conditions?
A6: It can operate in temperatures from –40 °C to +85 °C and withstand up to 100% humidity in non-submerged applications.

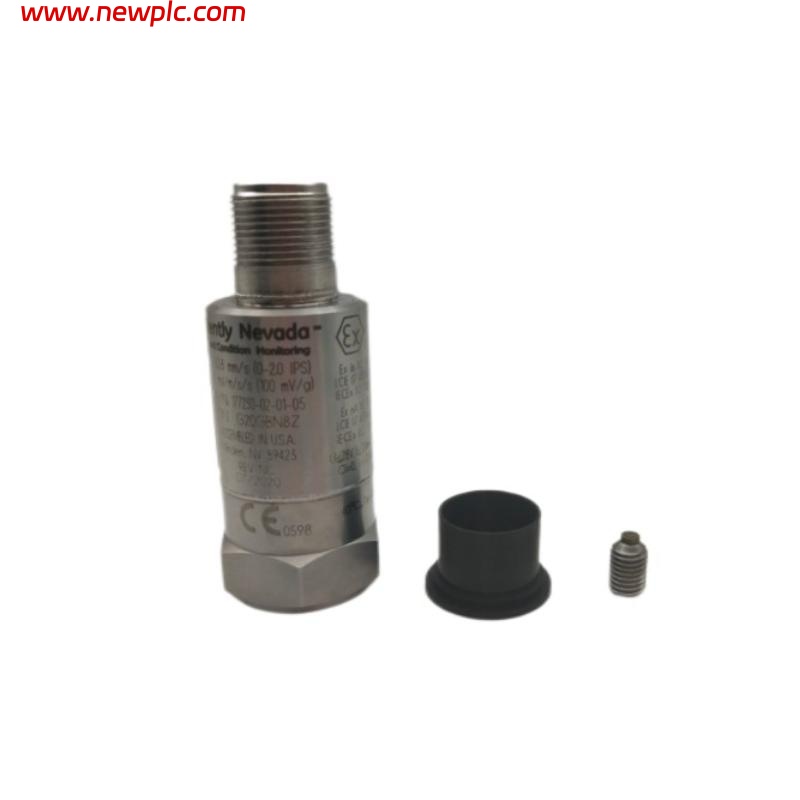

Q7: How is it mounted and connected?
A7: It uses a ¼-28 UNF threaded mounting stud and a 3-pin MIL-C-5015 connector for signal and power connections.

Q8: What does the “CN” suffix mean?
A8: The “CN” suffix denotes that this version meets specific regional standards or certifications required for installation in China or similar regulatory environments.
