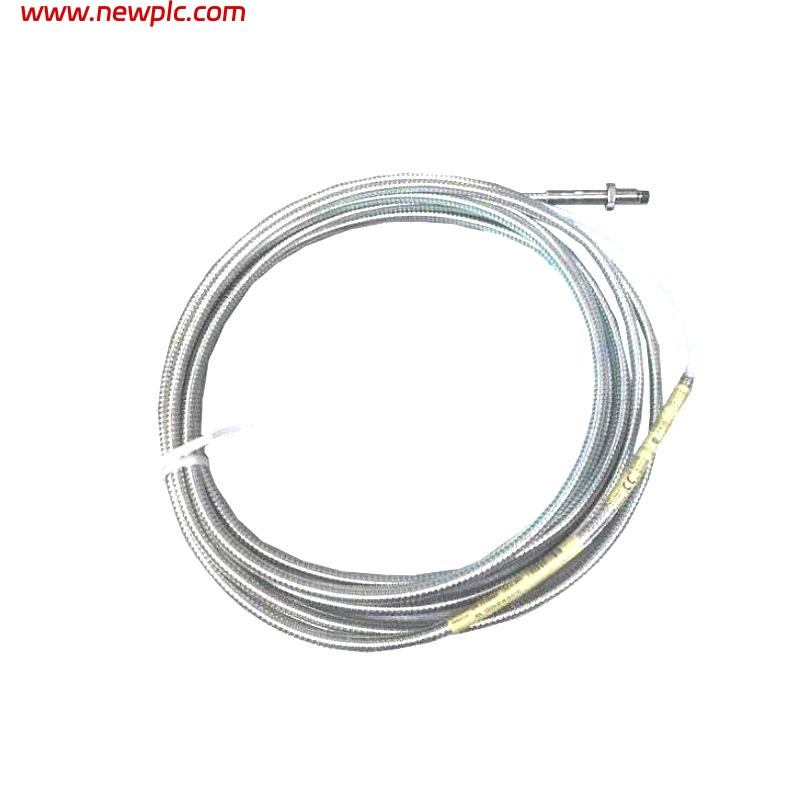

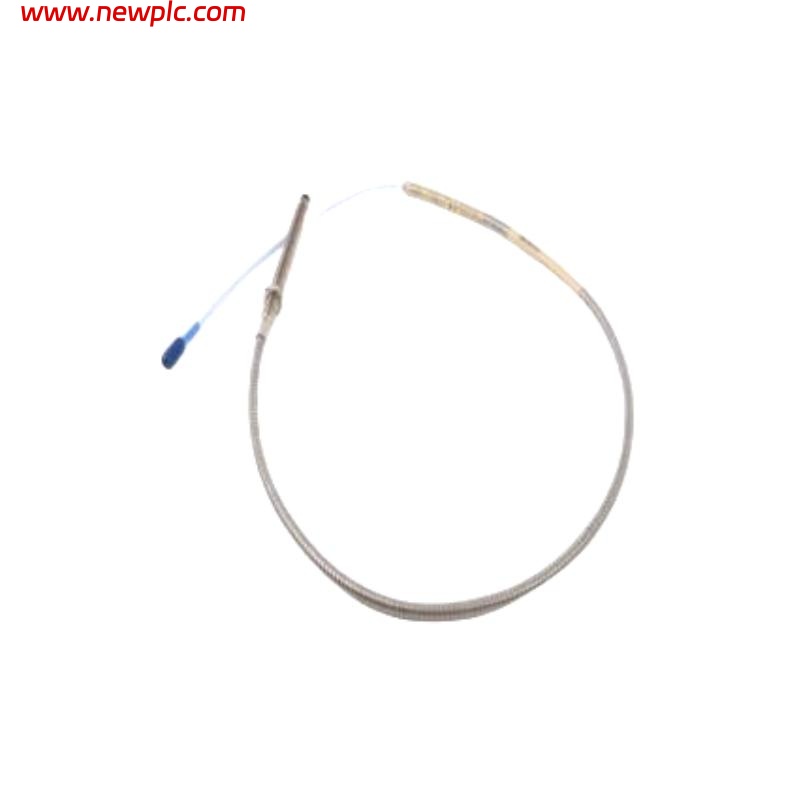

Bently Nevada 330104-07-12-10-02-CN 8 mm 3300 XL Eddy-Current Proximity Probe

FAQ

Q1: What is the main application of the 330104-07-12-10-02-CN probe?
It is commonly used for non-contact monitoring of shaft vibration, displacement, and position in rotating machinery such as compressors and turbines.

Q2: What do the model number segments represent?
07 = 7 mm unthreaded length, 12 = 120 mm case length, 10 = 1.0 m system length, 02 = armored miniature coax connector, CN = Chinese certification.

Q3: What materials are used for this probe?
The probe tip is made of PPS, and the housing is stainless steel with armored cabling.

Q4: What is the operating temperature capability?
It functions within –52 °C to +177 °C.

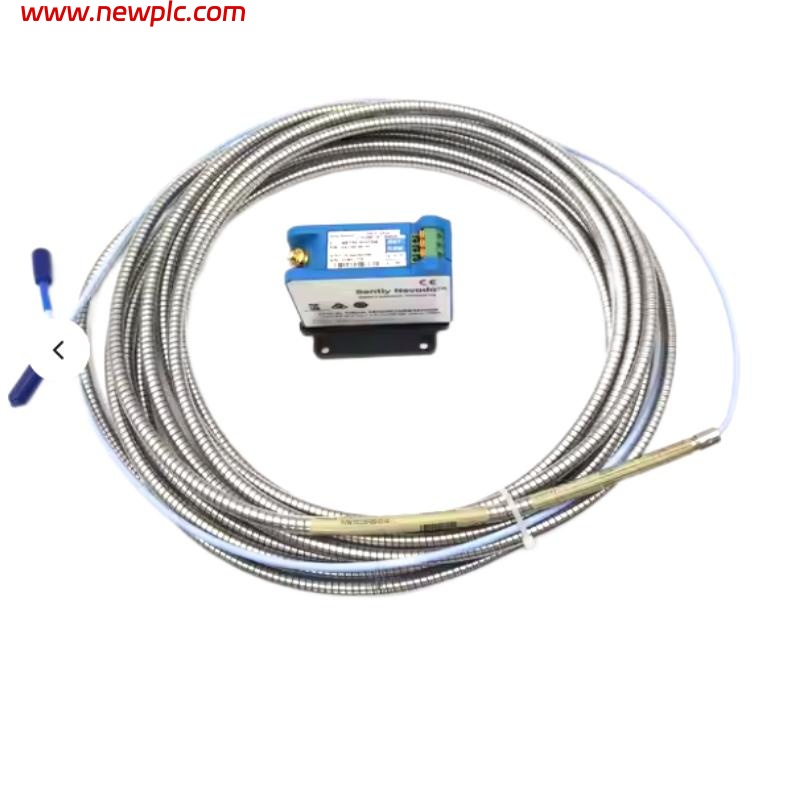

Q5: Which proximitor is compatible with this probe?
It is designed to work with the 3300 XL Proximitor for accurate shaft vibration and displacement measurements.

Q6: Does this probe include certification?
Yes, the “CN” suffix indicates Chinese certification.

Q7: What is the typical sensitivity of this probe?
It provides roughly 200 mV/mil with a usable linear range from 0.25 to 2.5 mm.

Q8: What are the physical dimensions and weight?
The probe has a 120 mm case length, 8 mm tip diameter, and weighs about 0.80 kg including the 1.0 m armored cable.
