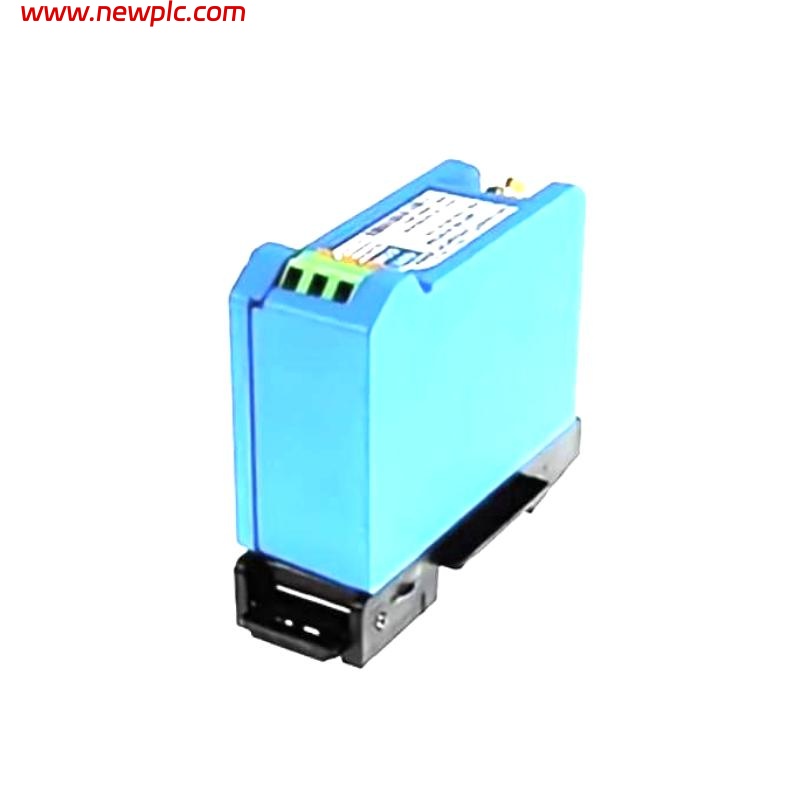

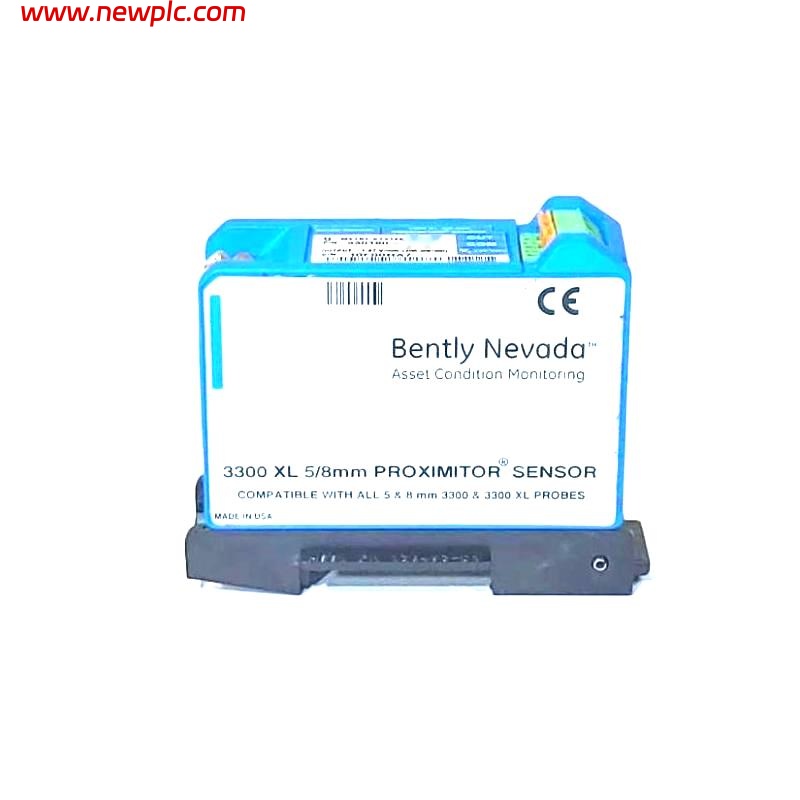

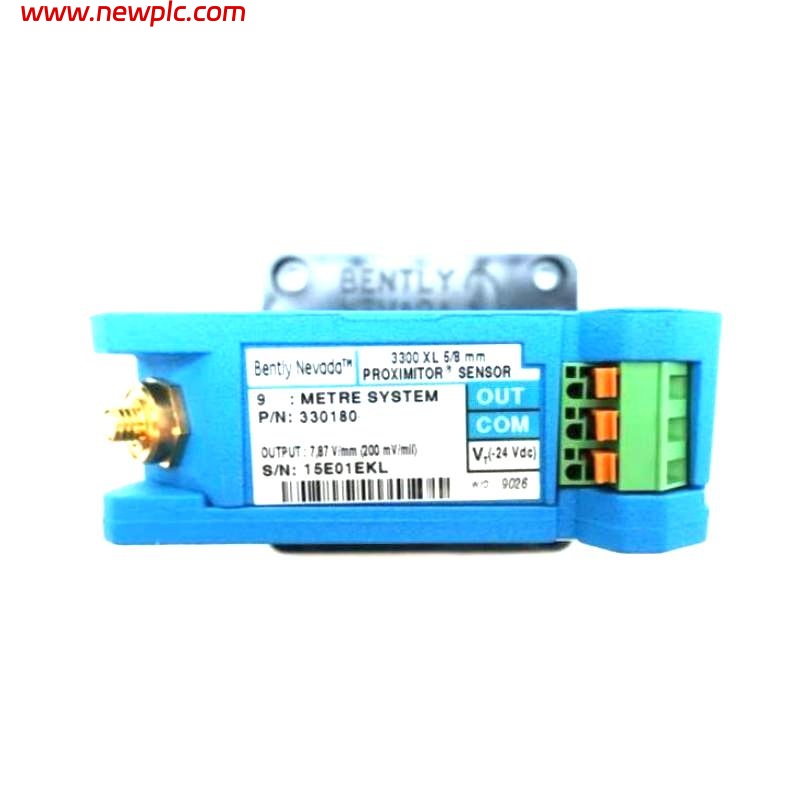

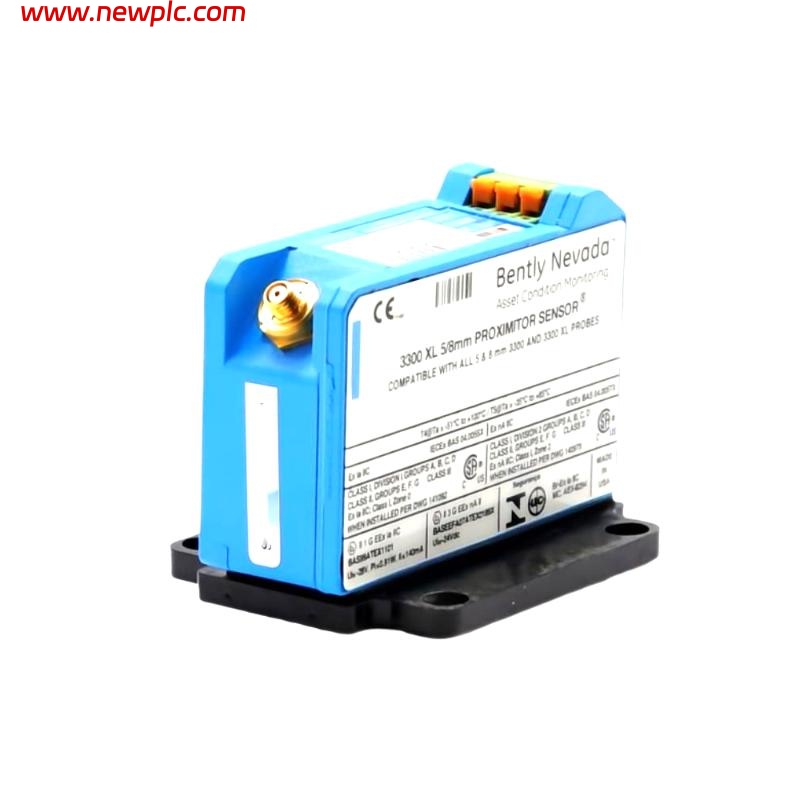

Bently Nevada 330180-X1-05 143416-13 3300 XL Proximitor Sensor

FAQ

Q1: What applications is the 3300 XL Proximitor Sensor designed for?
A1: It is used primarily for vibration and position monitoring on fluid-film bearing machines, Keyphasor reference, and speed measurements.

Q2: Is the sensor compliant with API 670?
A2: Yes, the standard 5-meter system complies with API 670 for configuration, linearity, accuracy, and thermal stability.

Q3: Can the probe be used in high-temperature environments?
A3: Yes, the ETR version of the probe supports up to +218°C for the probe and +260°C for the extension cable.

Q4: How is the Proximitor Sensor installed?
A4: It can be installed using either panel mount or DIN-rail mount options. Both configurations provide electrical isolation.

Q5: Are special tools required for connector installation?
A5: No. ClickLoc connectors are finger-tight and secure with an audible click, requiring no tools.

Q6: Is it compatible with non-XL 3300 series components?
A6: Yes, it is fully compatible, but system performance will default to the limitations of the non-XL components.

Q7: What is the maximum field wiring length?
A7: Up to 305 meters (1000 feet) between the Proximitor sensor and the monitoring system is recommended.

Q8: Is recalibration needed for non-standard target materials?
A8: Yes. The factory default is calibrated to AISI 4140 steel. For other materials, calibration is required to maintain accuracy.

143416-13 3300 XL Proximitor Sensor 330180 330180-X1-05 Bently Nevada
