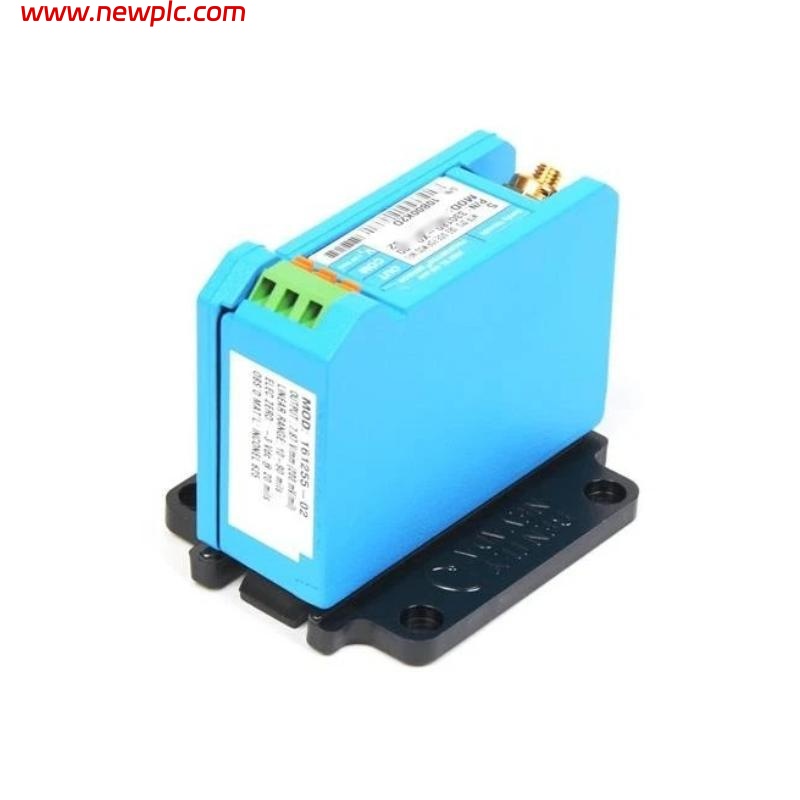

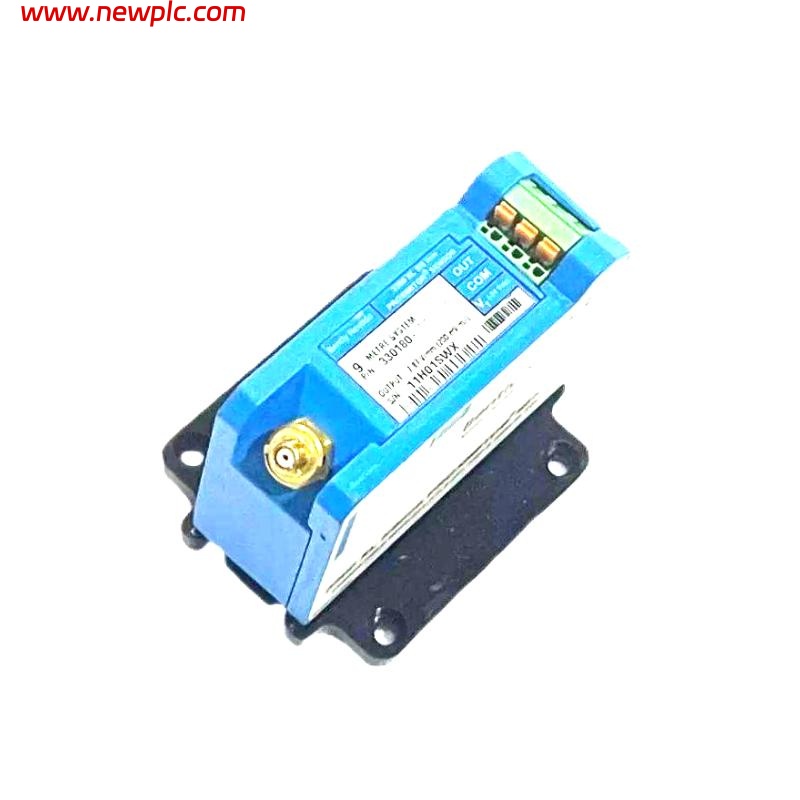

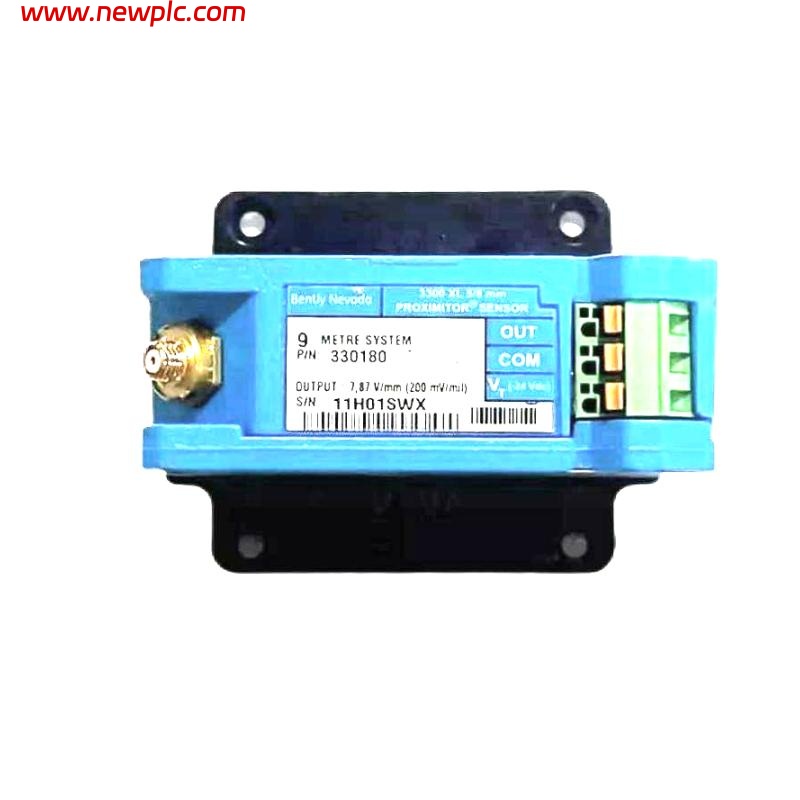

Bently Nevada 330180-X1-CN 145004-67 3300 XL Proximitor Sensor

FAQ

Q1: Is this model compatible with non-XL 3300 series probes?
A1: Yes, the 330180-X1-CN is electrically and physically compatible with non-XL 3300 series 5 mm and 8 mm components, but performance will be limited to the non-XL system specifications.

Q2: What is the recommended installation gap?
A2: The recommended gap is -9 Vdc, approximately 1.27 mm (50 mils).

Q3: What is the minimum applicable shaft diameter?
A3: The minimum shaft diameter is 50.8 mm (2 inches), with 76.2 mm (3 inches) or greater recommended for accuracy.

Q4: What is the operating temperature range for this product?
A4: Standard probe: -52°C to +177°C; ETR probe: up to +218°C (tip) and +260°C (cable). Proximitor Sensor: -52°C to +100°C.

Q5: Does high humidity affect accuracy?
A5: When tested at 93% relative humidity for 56 days, the Average Scale Factor (ASF) changes by less than 3%.

Q6: Are special tools required for terminal strip wiring?
A6: No, the SpringLoc terminal strips require no special tools and allow quick, secure wiring.

Q7: What is the frequency response range?
A7: Frequency response is 0 to 10 kHz, +0/-3 dB, supporting up to 305 meters of field wiring.

Q8: Does the product comply with API 670?
A8: Yes, the standard 5 m system fully complies with API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.

145004-67 3300 XL Proximitor Sensor 330180 330180-X1-CN Bently Nevada
