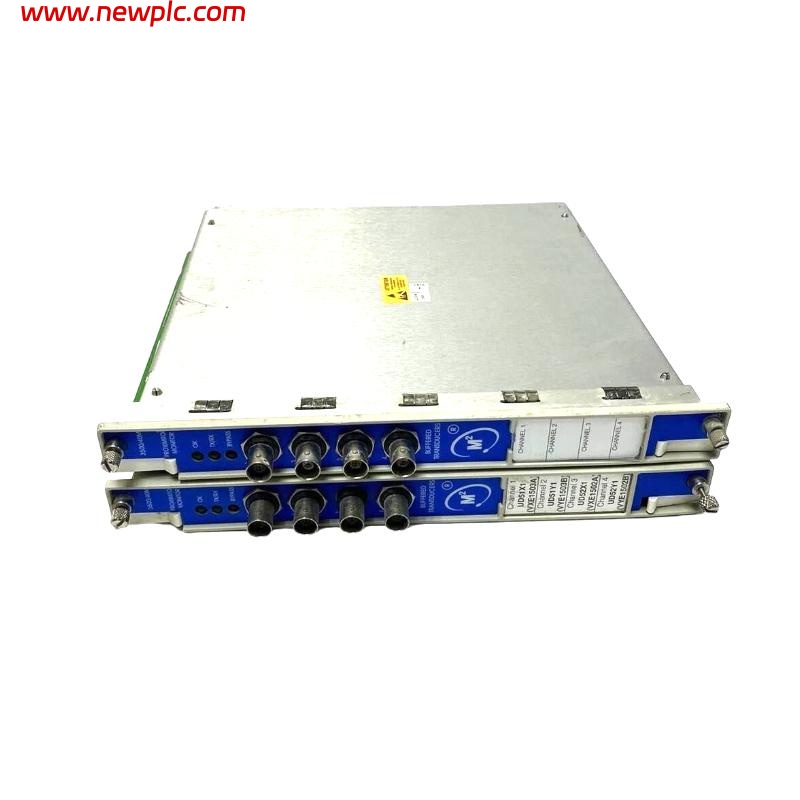

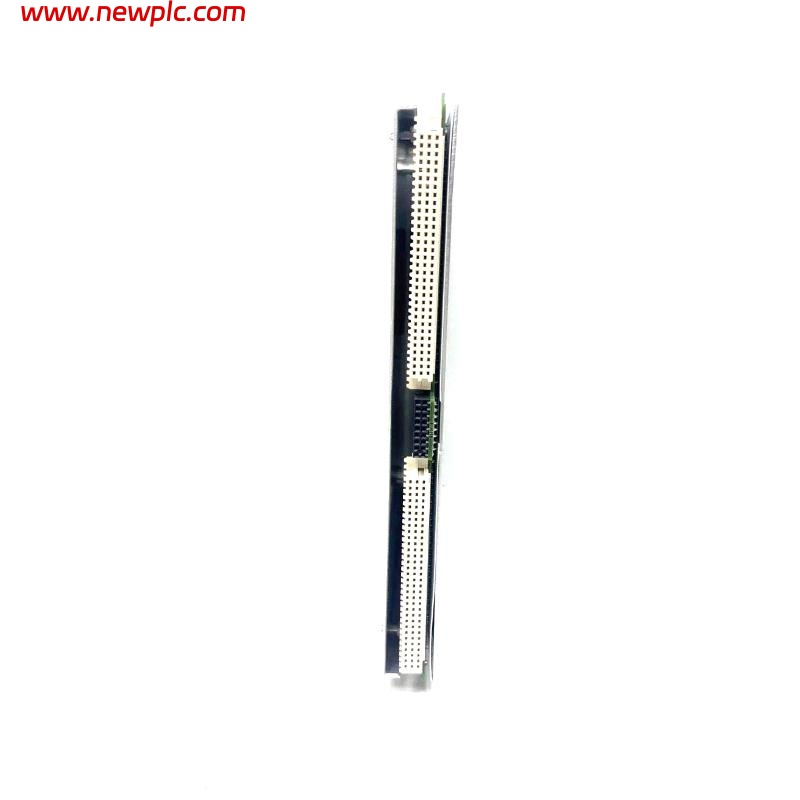

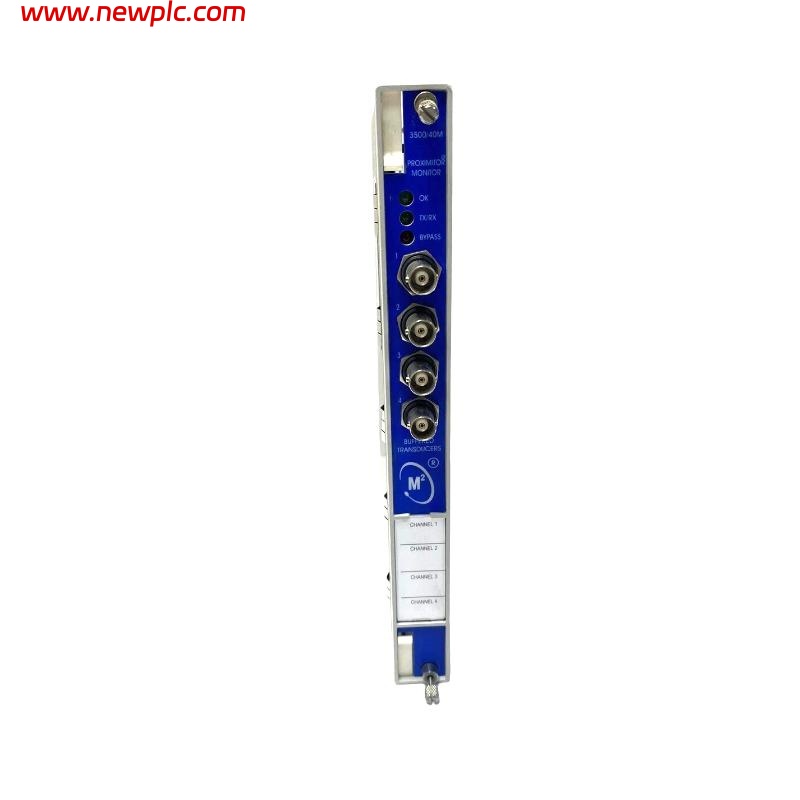

Bently Nevada 3500/40 125672-01 Proximitor Monitor Discrete I/O Module

FAQ

Q1: How many input channels does the 3500/40 125672-01 support?
A1: It supports 1 to 4 proximity transducer signal inputs.

Q2: What are the main functions of the module?
A2: It can perform radial vibration, thrust position, eccentricity, differential expansion, and REBAM functions.

Q3: What is the power consumption?
A3: Typical power consumption is 7.7 watts.

Q4: What is the input impedance?
A4: Standard I/O input impedance is 10 kΩ.

Q5: What is the operating temperature range?
A5: -30°C to +65°C for Internal/External Termination I/O Modules, 0°C to +65°C for Internal Barrier I/O Modules.

Q6: What is the output impedance?
A6: The output impedance is 550 Ω.

Q7: What are the physical dimensions and weight of the module?
A7: Dimensions are 241.3 x 24.4 x 99.1 mm, weight is 0.20 kg.

Q8: How are the alarms configured?
A8: Alarm and danger setpoints can be configured via the Rack Configuration Software, adjustable from 0–100% of full scale.
