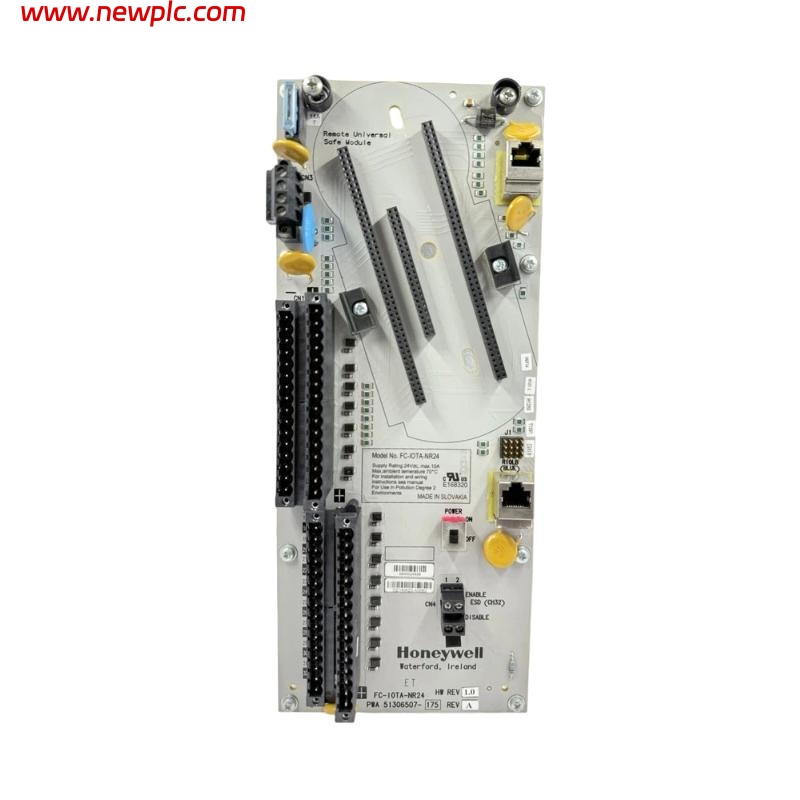

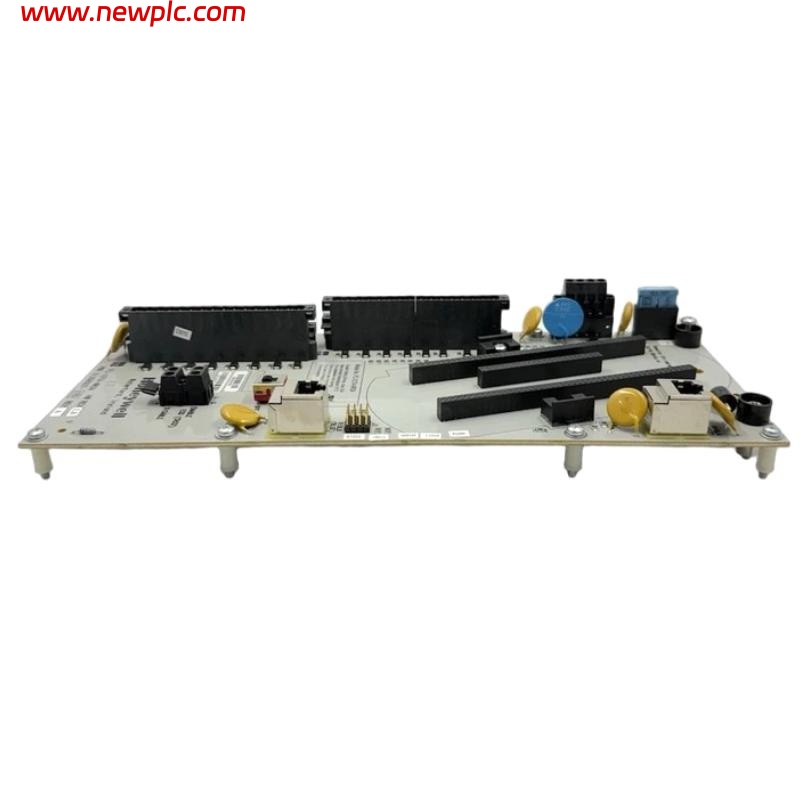

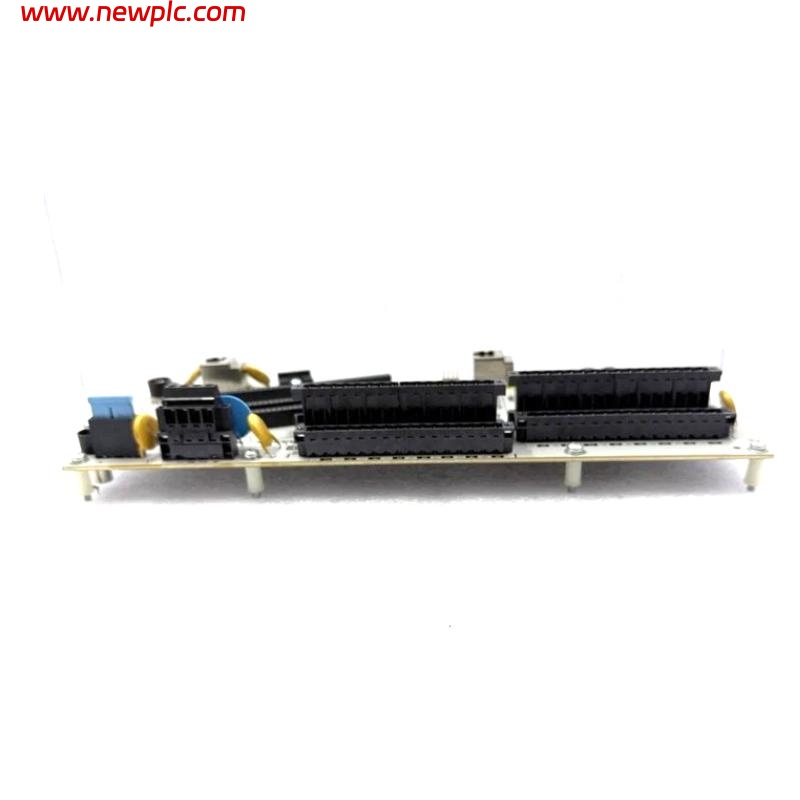

Honeywell FC-IOTA-NR24 Safety System Redundant IO Termination Assembly

FAQ

Q1: What type of IO modules are compatible with the FC-IOTA-NR24?
A1: The assembly supports one RUSIO-3224 or one RUSLS-3224 universal IO module.

Q2: How many IO channels does the termination assembly provide?
A2: It provides 32 universal IO channels through connectors CN1 and CN2.

Q3: What level of redundancy is supported by the FC-IOTA-NR24?
A3: It supports high-reliability single module operation; redundant configurations require the FC-IOTA-R24 variant.

Q4: What environmental conditions can the device withstand?
A4: It operates between –40 °C and +70 °C, with storage tolerance down to –40 °C and up to +85 °C, and relative humidity from 10% to 95% non-condensing.

Q5: What are the protective measures integrated into the assembly?
A5: It includes reverse polarity protection with a parallel diode and a 15 A replaceable blade fuse.

Q6: How is the device powered and connected to the carrier?
A6: Power is supplied via 24 V screw and COM screw terminals directly to the carrier power rail.

Q7: What certifications does the FC-IOTA-NR24 comply with?
A7: It is certified by CE, UL, and TUV for industrial safety and compliance standards.

Q8: What are the physical dimensions and weight of the unit?
A8: The assembly measures 64 × 120.7 × 293.4 mm and weighs approximately 0.46 kg.

FC-IOTA-NR24 Honeywell IOTA-NR24 Redundant IO Termination Assembly Safety System
