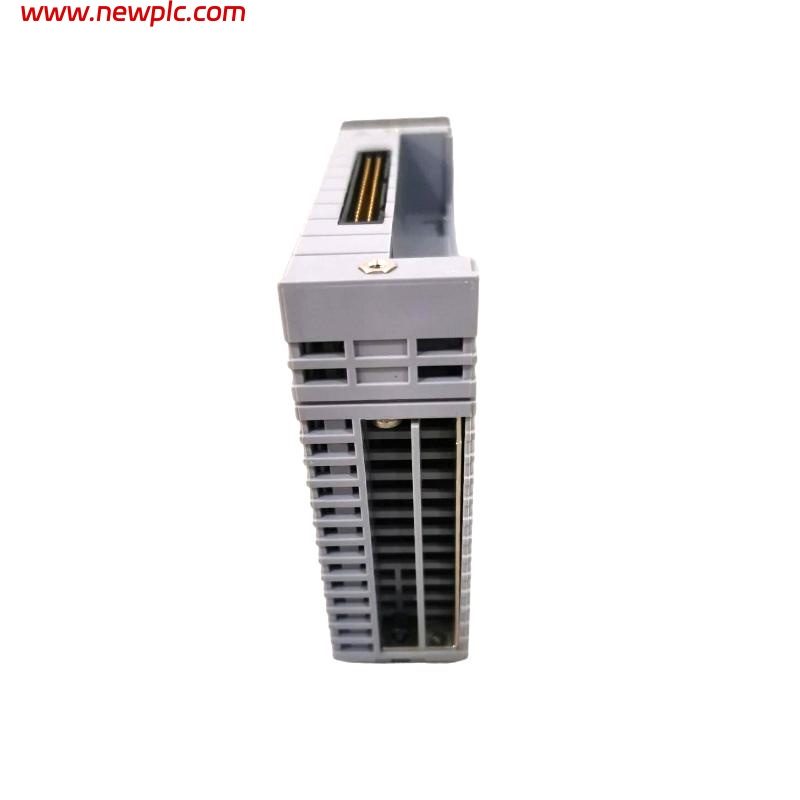

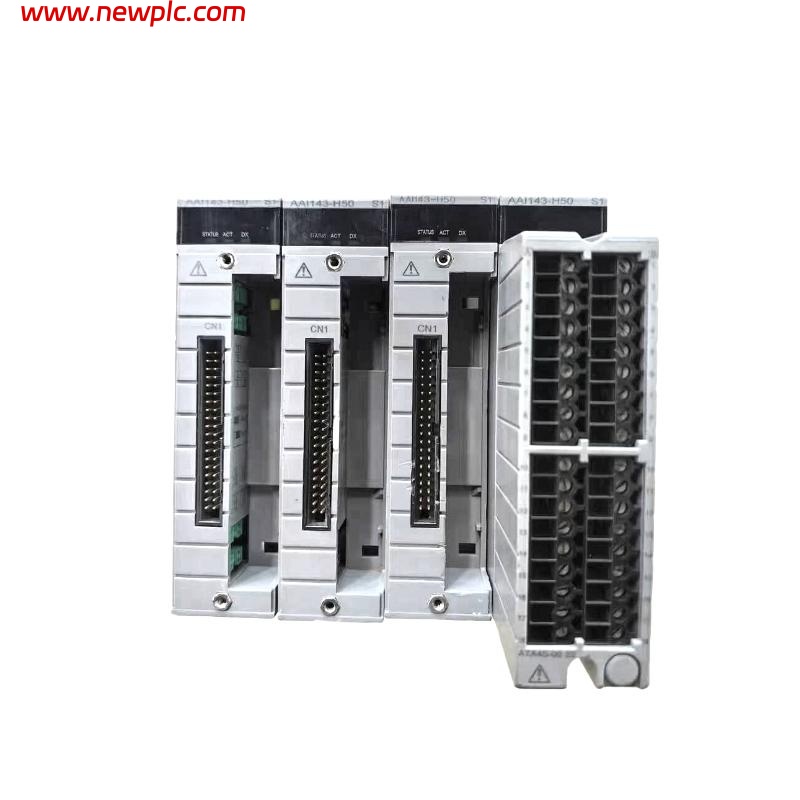

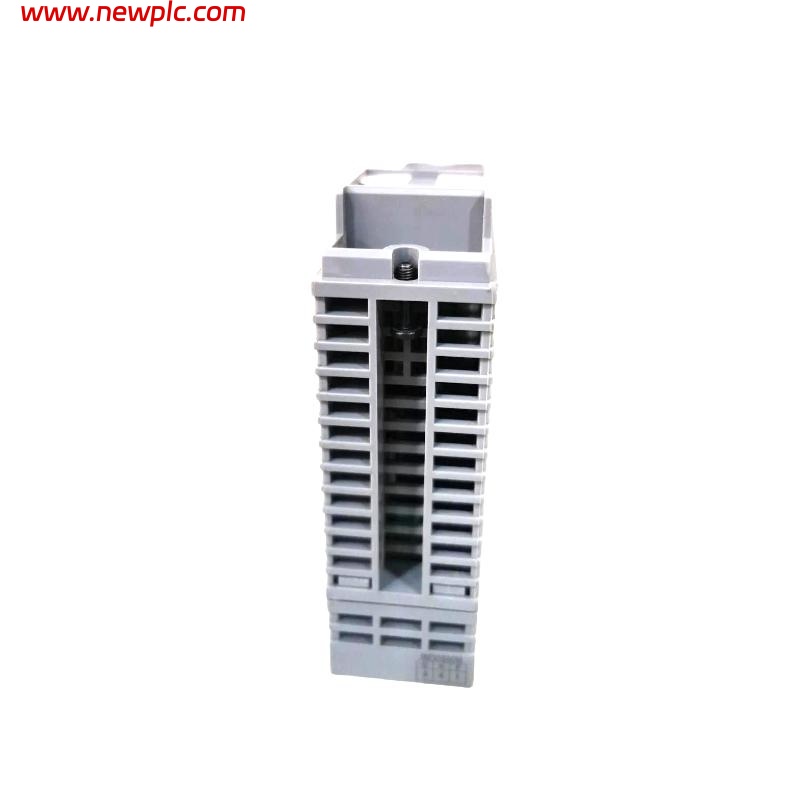

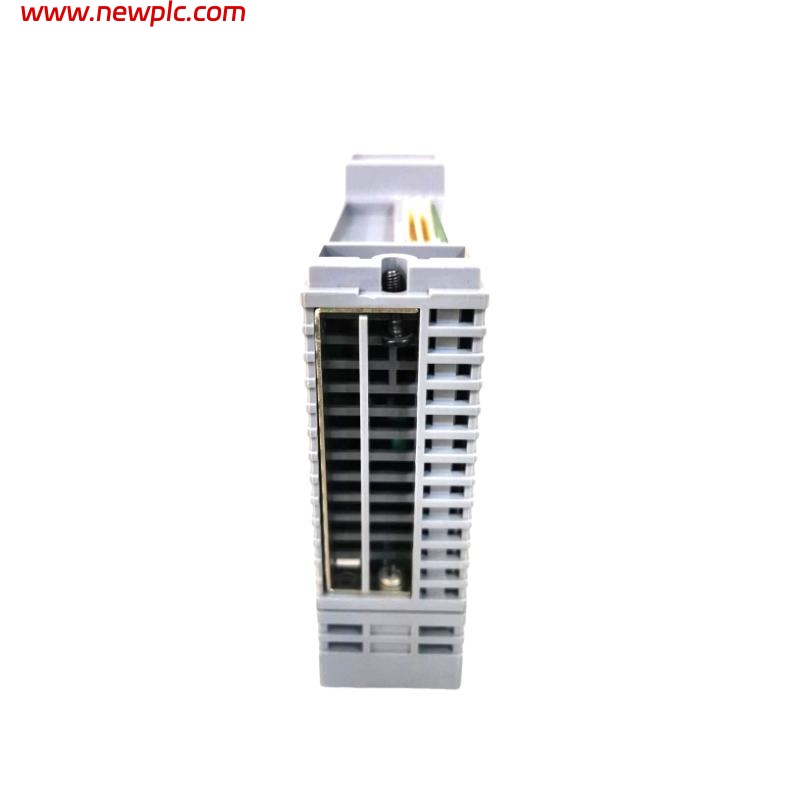

Yokogawa AAI143-H50/A4S10 Analog Input Module

FAQ

Q1: How many input channels does the AAI143-H50 module support?
A1: It supports 16 isolated analog input channels (4–20 mA).

Q2: Does it support HART communication?
A2: Yes, this module is compatible with HART protocol.

Q3: Is the module electrically isolated?
A3: Yes, it provides isolation between input channels and system (1500 V AC withstand voltage).

Q4: Can this module be used with 2-wire and 4-wire transmitters?
A4: Yes, each channel can be individually configured via pin setting.

Q5: What is the maximum allowable input current?
A5: The module allows up to 24 mA input current.

Q6: What types of external connections are supported?
A6: It supports pressure clamp terminal, MIL connector cable, and dedicated KS1 cable.

Q7: What is the accuracy of this module?
A7: The input accuracy is ±16 µA.

Q8: What are the dimensions and weight of the module?
A8: The dimensions are 107.5 × 32.8 × 130 mm, and it weighs 0.3 kg.

AAI143 AAI143-H50/A4S10 Analog Input Module Yokogawa
