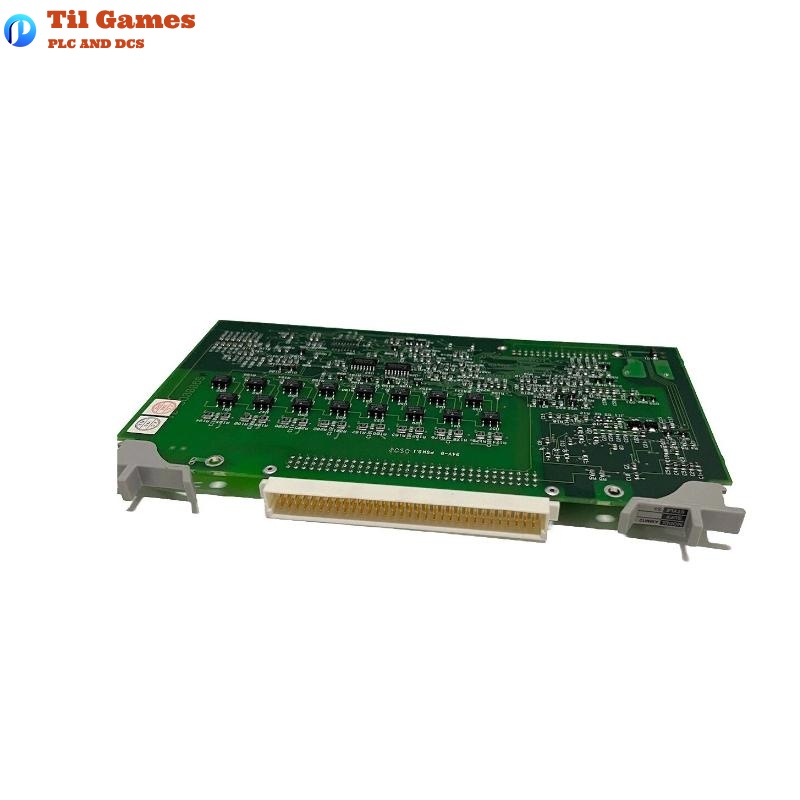

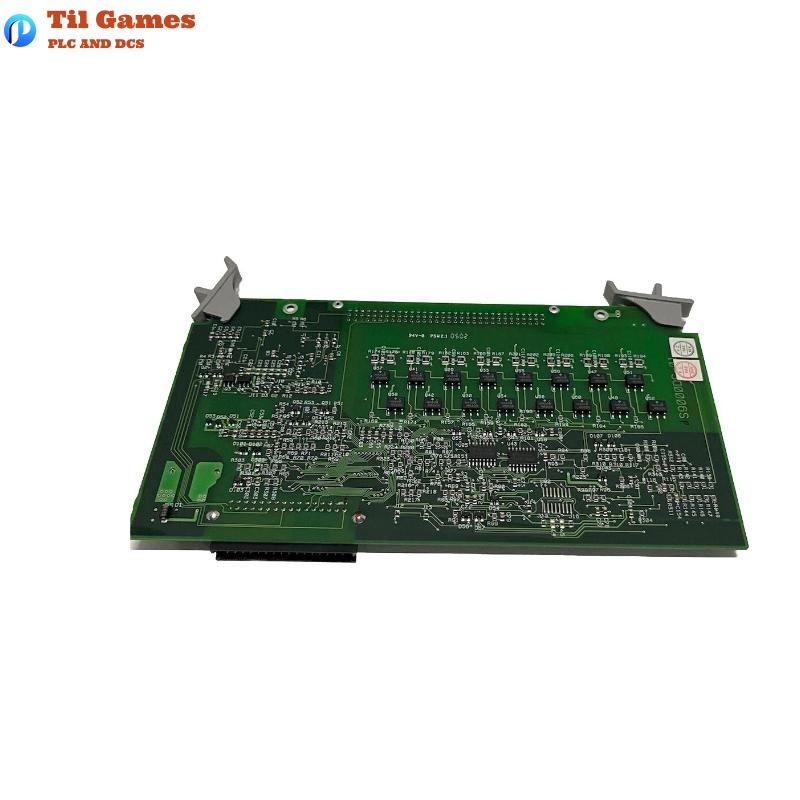

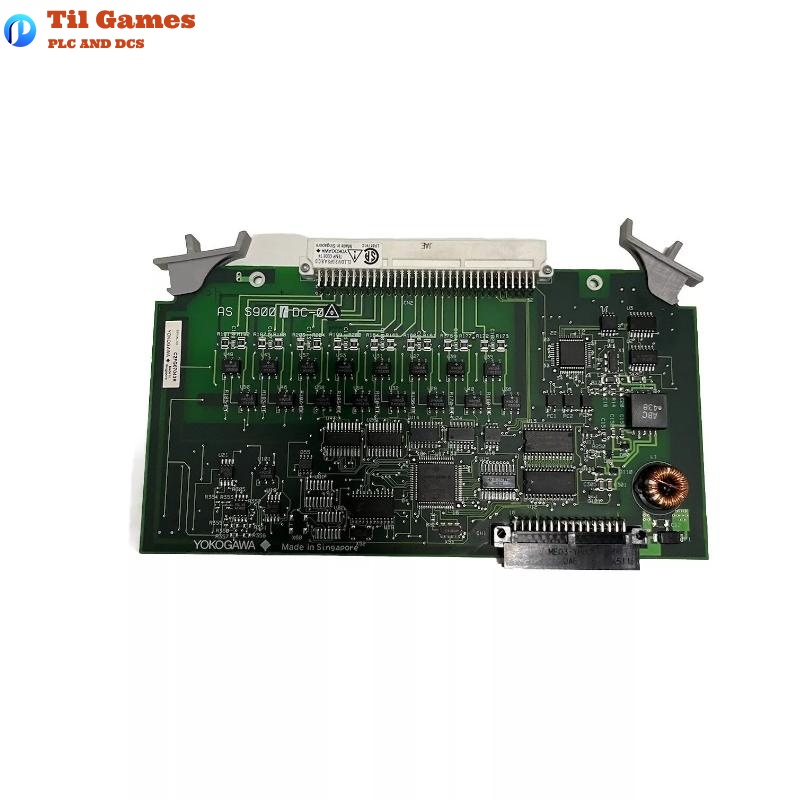

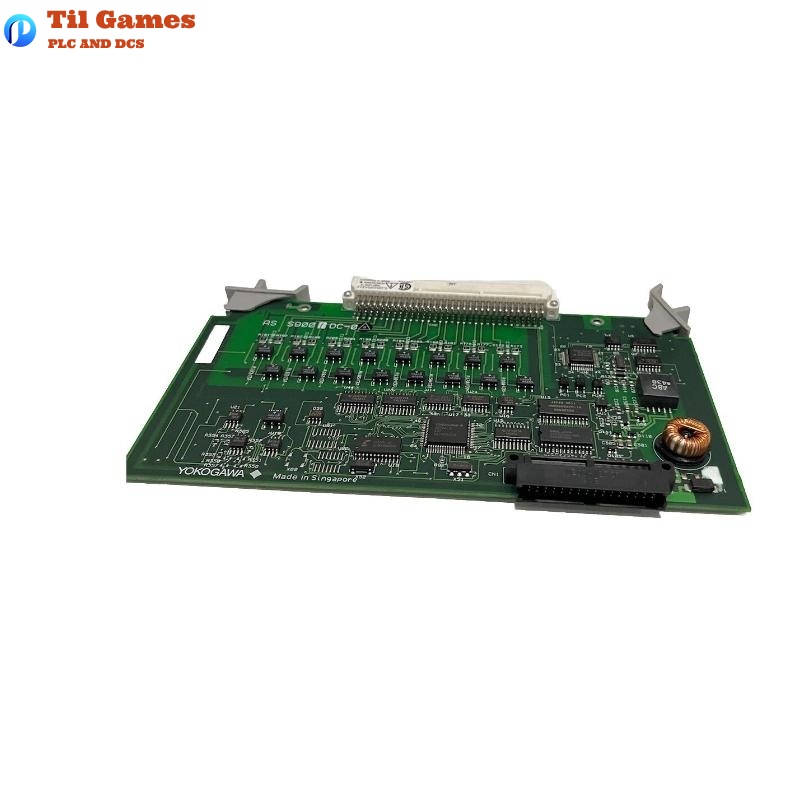

Yokogawa AMM12 Voltage Input Multiplexer Module

Yokogawa AMM12 Voltage Input Multiplexer Module FAQ

Q1: How many voltage input channels does the AMM12 support?
A1: The AMM12 module supports 16 multiplexed voltage input channels.

Q2: What is the voltage input range supported by the AMM12?
A2: It supports analog voltage signals ranging from -10 V to +10 V.

Q3: Does the AMM12 provide channel-to-channel isolation?
A3: No, channels are not isolated from each other, but the module is isolated from the system.

Q4: On what type of base can the AMM12 be mounted?
A4: The AMM12 can be mounted on analog I/O nests such as AMN11 or AMN12.

Q5: How is the AMM12 powered?
A5: It is powered via the connected node interface unit and does not require external power.

Q6: Is the AMM12 suitable for high-precision signal measurement?
A6: Yes, it features 16-bit resolution and ±0.1% F.S. accuracy, making it suitable for precise measurements.

Q7: What is the operating temperature range for the AMM12?
A7: The operating temperature range is 0 to 50°C.

Q8: What are the dimensions and weight of the AMM12?
A8: The dimensions are 45 × 97 × 103 mm and the weight is 0.3 kg.

AMM12 Voltage Input Multiplexer Module Yokogawa
