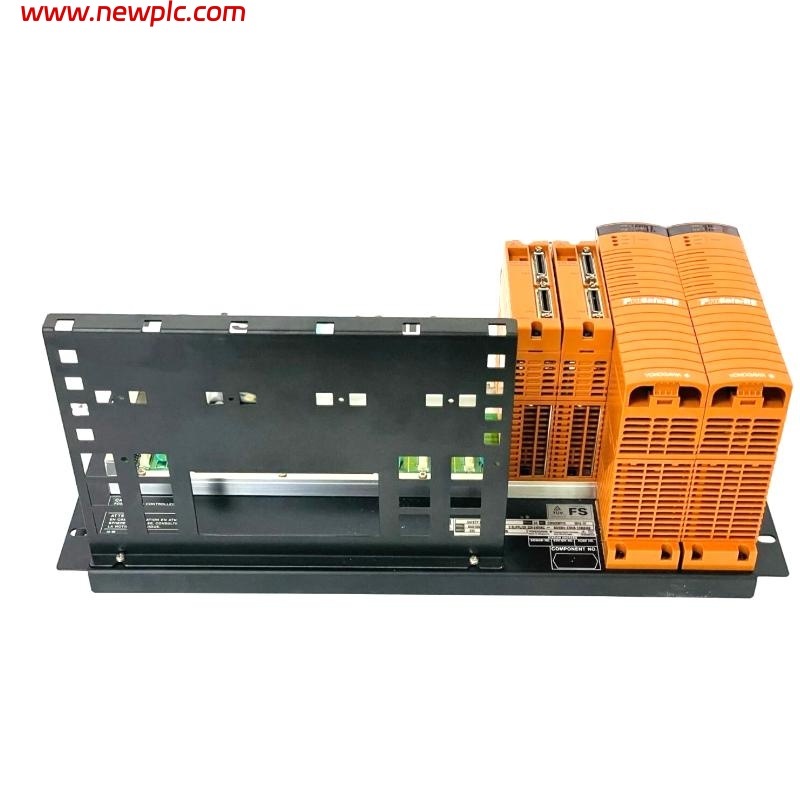

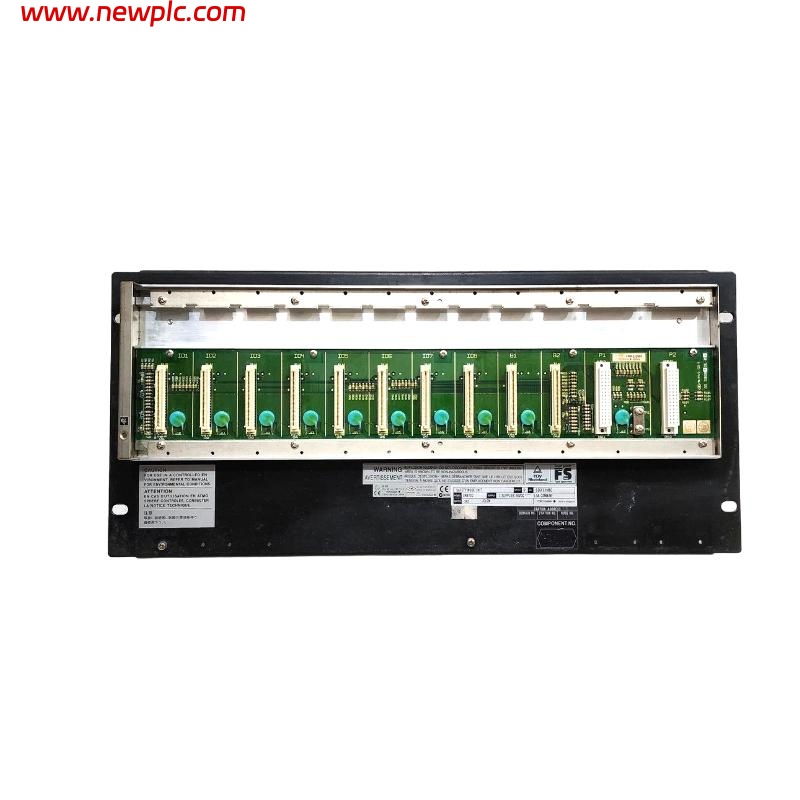

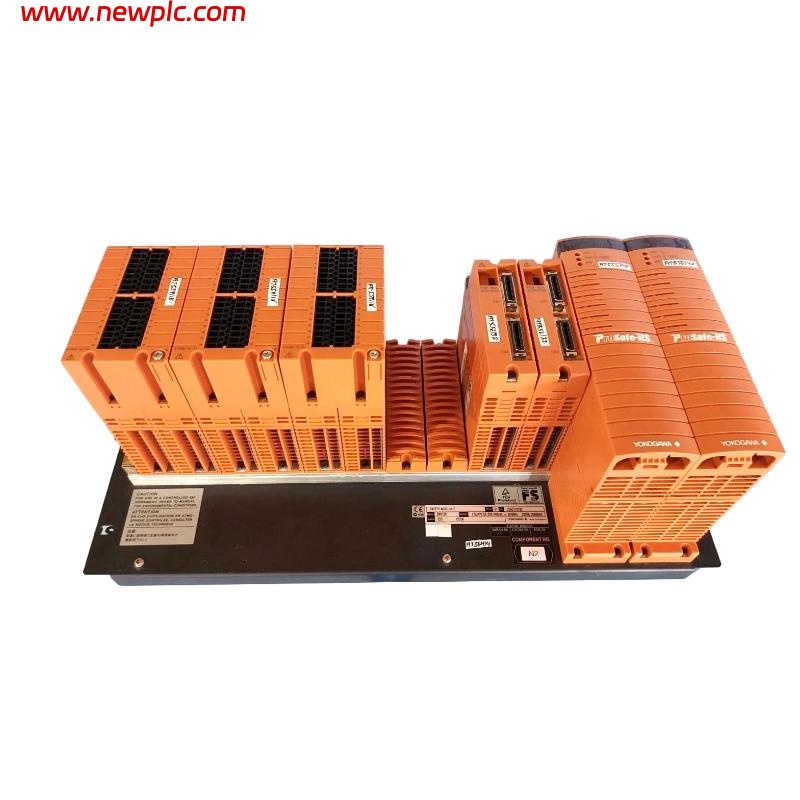

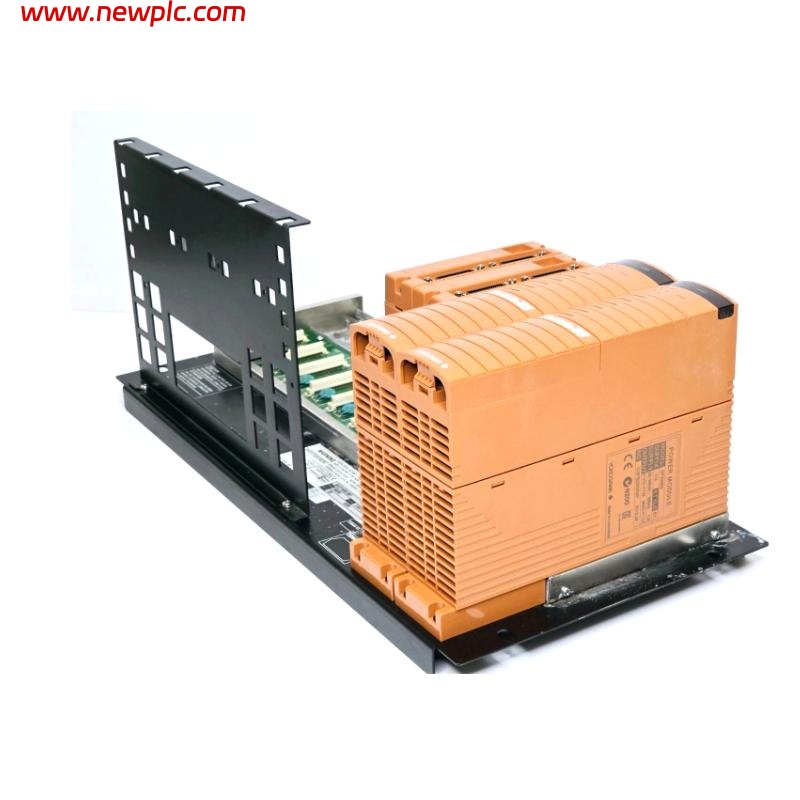

Yokogawa SNB10D-223 Safety Node Unit (Rack Mountable Type)

FAQ

• Q1: What type of I/O signals can the SNB10D-223 Safety Node Unit interface with?
  A1: The unit can interface with both analog and contact signals from connected field devices.

• Q2: How does the dual-redundant power supply enhance system reliability?
  A2: Dual-redundant 220–240V AC supply ensures continuous operation even if one power source fails, reducing system downtime.

• Q3: What is the maximum operating temperature for the SNB10D-223?
  A3: The device can safely operate up to 70°C, making it suitable for industrial environments with elevated temperatures.

• Q4: What is the significance of SIL 2/3 certification for this unit?
  A4: SIL 2/3 certification confirms the unit meets IEC 61508 standards, ensuring it provides reliable functional safety in safety-critical applications.

• Q5: Can the SNB10D-223 unit be used at the end of an ESB network?
  A5: Yes, the SNB10D-223/CU2T variant includes an ESB terminator specifically for end-of-line installation to prevent signal reflection.

• Q6: What are the physical dimensions and weight of the SNB10D-223?
  A6: The unit measures 482.6 × 221.5 × 205 mm and weighs 5.9 kg, suitable for standard 19-inch racks.

• Q7: How does the SNB10D-223 communicate with other safety devices in the system?
  A7: It uses the Ethernet Safety Bus (ESB) to exchange safety-related data with connected devices.

• Q8: Are there multiple model variants of the SNB10D-223, and how do they differ?
  A8: Yes, SNB10D-223/CU2N does not include a terminator, while SNB10D-223/CU2T includes an ESB terminator for end-of-line network applications.

Safety Node Unit SNB10D-223 Yokogawa Yokogawa SNB10D
