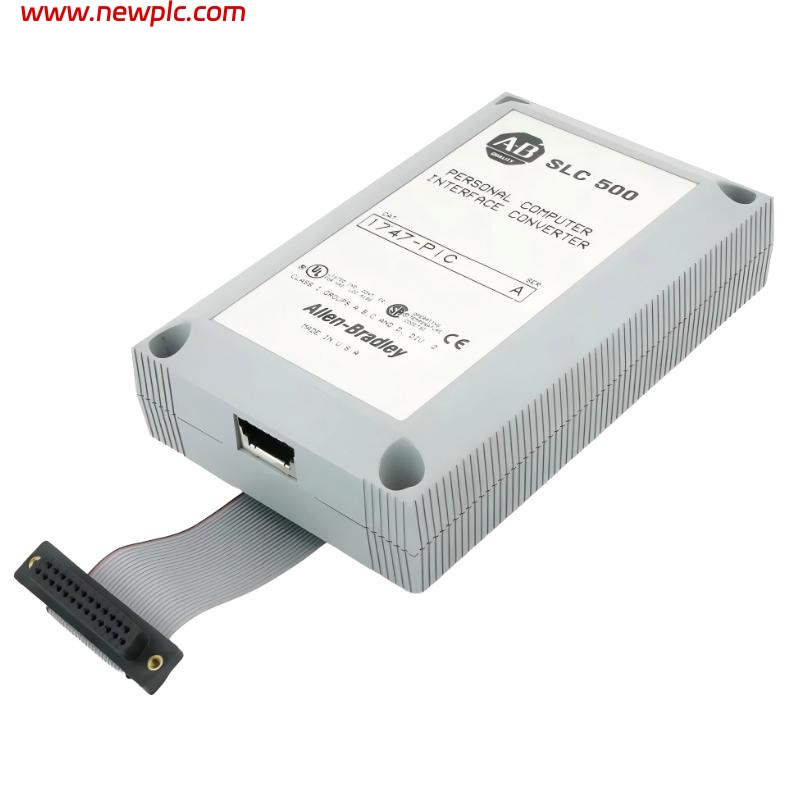

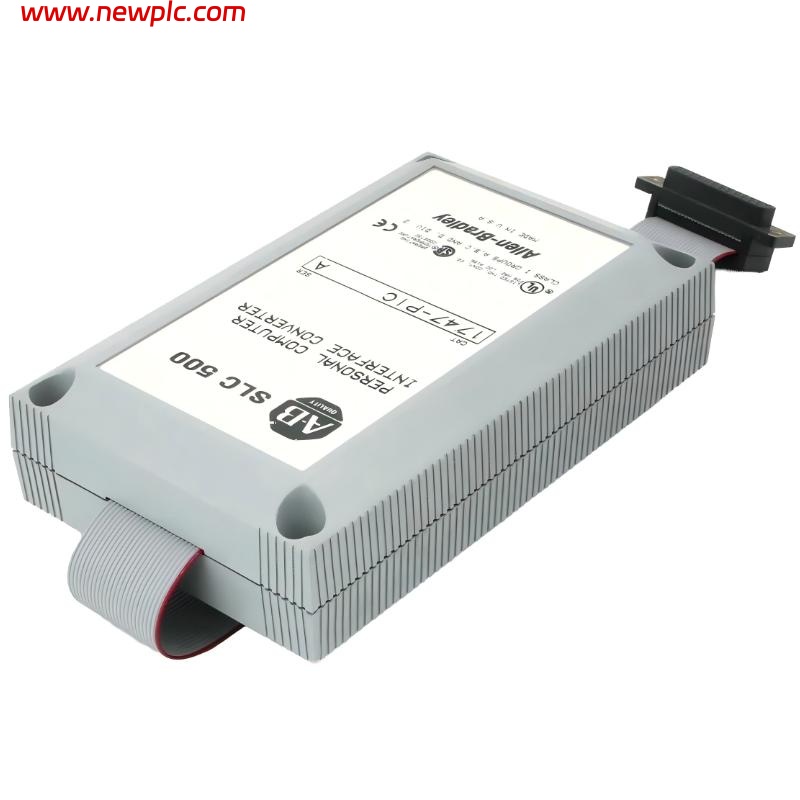

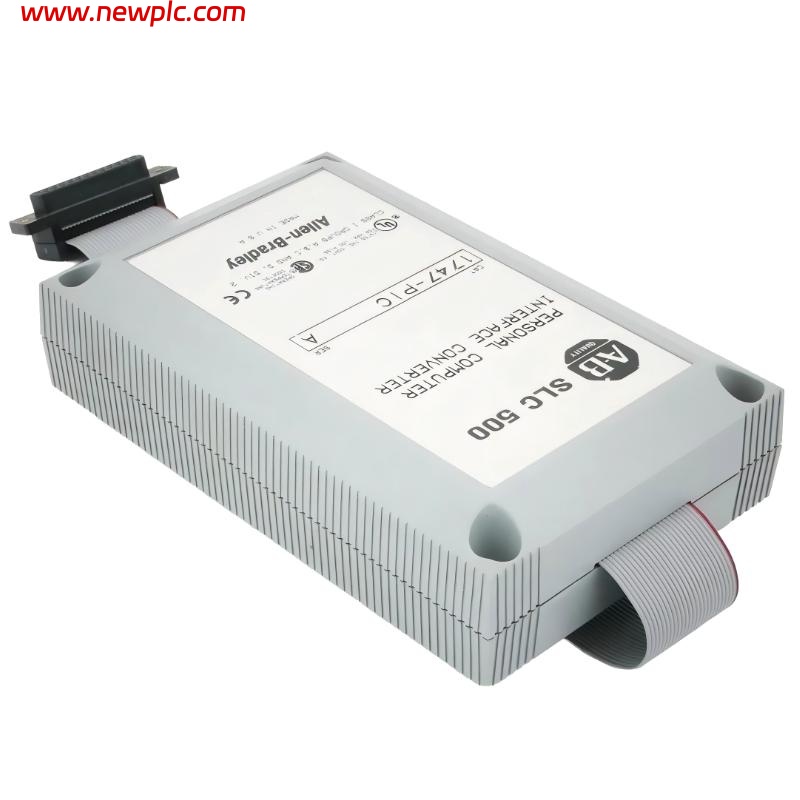

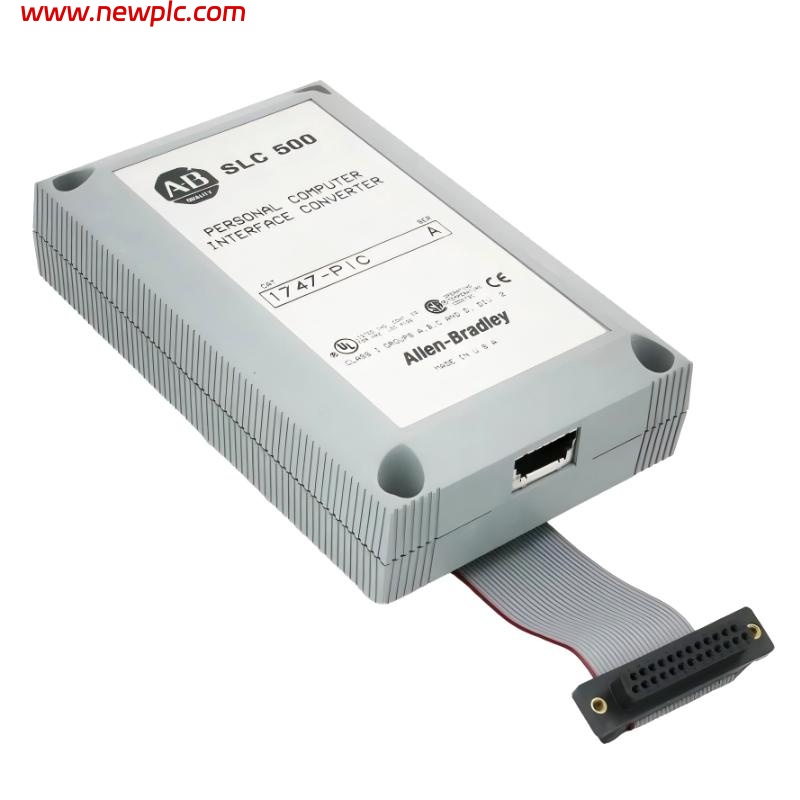

Allen Bradley 1747-PIC PC Interface Converter

FAQ

Q1: What is the 1747-PIC used for?
It is used to connect a computer to an Allen-Bradley controller over a DH-485 network.

Q2: What does the 1747-PIC convert?
It converts RS-232 signals from a PC into DH-485 communication signals.

Q3: Which devices are compatible with the 1747-PIC?
It is compatible with SLC 500 and MicroLogix controllers that use DH-485.

Q4: Does the module require an external power supply?
No, it is powered directly through the RS-232 connection.

Q5: What communication speed does it support?
It supports communication rates up to 19.2 kbps.

Q6: What connectors are used on the device?
It uses a DB9 connector for RS-232 and an 8-pin mini-DIN for DH-485.

Q7: What are the physical dimensions and weight?
Dimensions are approximately 3.5 × 2.0 × 1.0 in, and weight is about 0.2 kg.

Q8: Is the 1747-PIC still available?
No, it is discontinued and considered a legacy communication interface.

1747-PIC Allen Bradley
